Optical Vickers Micro Digital Hardness Tester High Internal Memory Capability

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	HV-30Z

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	10 per month

Get Best Price Contact Now

Detail Information

Turret:	Automatic	Internal Memory Capability:	120 Testing Records
Testing Force:	4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N	Magnification Of The Measuring Microscope:	100X, 200X
Carriage Control:	Full-automatic (loading / Holding-up Of Loading / Unloading)
Highlight:	micro hardness testing machine , digital hardness tester

Product Description

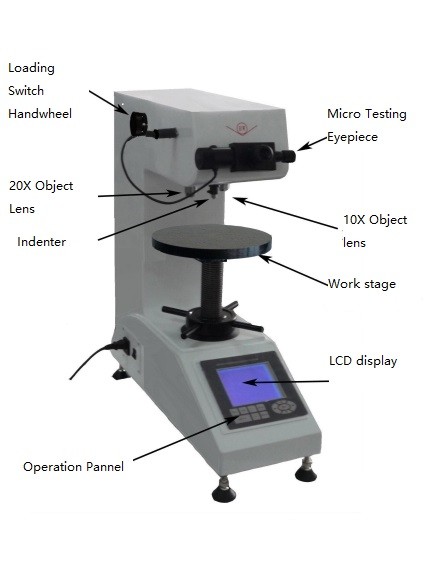

Digital Micro Vickers Hardness Tester with Optical System and Large Internal Memory

Duo Optical System Vickers Micro Hardness Tester

Advanced automatic turret hardness tester featuring dual optical terminals and extensive internal memory for reliable industrial testing applications.

Key Features

Large Internal Memory: Save all specifications after power-off with database capacity for 6 groups, each containing 20 records
Dual Optical Terminal System: Simultaneous observation and measurement via eyepiece and monitor during automatic indentation measurement
Large LCD Display: Manual selection function for easy and convenient operation
Wide Application Range: Suitable for ferrous metals, non-ferrous metals, IC thin pieces, surface coatings, laminated metals, glass, ceramics, agate, jewels, thin plastics, and hardness testing for depth and gradient of charring and hardening layers

Technical Specifications

Parameter	Specification
Testing Force	4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N (0.5, 1, 2, 3, 5, 10, 30 Kgf)
Carriage Control	Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification	100X, 200X
Holding Time	0-60 seconds
Test Drum Wheel Graduation	0.25μm, 0.125μm
Testing Range	5-3999 HV
Max Specimen Height	200 mm
Max Specimen Width	130 mm
Power Supply	110V/220V, 60/50Hz
Dimensions	550 × 210 × 580 mm
Weight	35 kg

Standard Accessories

Vickers indenter
10X eyepiece
Working stage
V type working stage
Gradienter
Level adjusting screw
Vickers hardness block
RS232 communication cable
