Detail Information

Programming:	C++ Language	Testing Force:	1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0
Magnification Of The Measuring Microscope:	100X, 400X	X, Y Stage Dimension:	100×100 Mm
X,Y Stage Travel:	25×25 Mm	Application:	Black Metal, Nonferrous Metal IC Thin Pieces, Surface Coating, Laminated Metal
Highlight:	100X Magnification Microhardness Tester , 400X Magnification Microhardness Tester , Microhardness Measuring Devices

Product Description

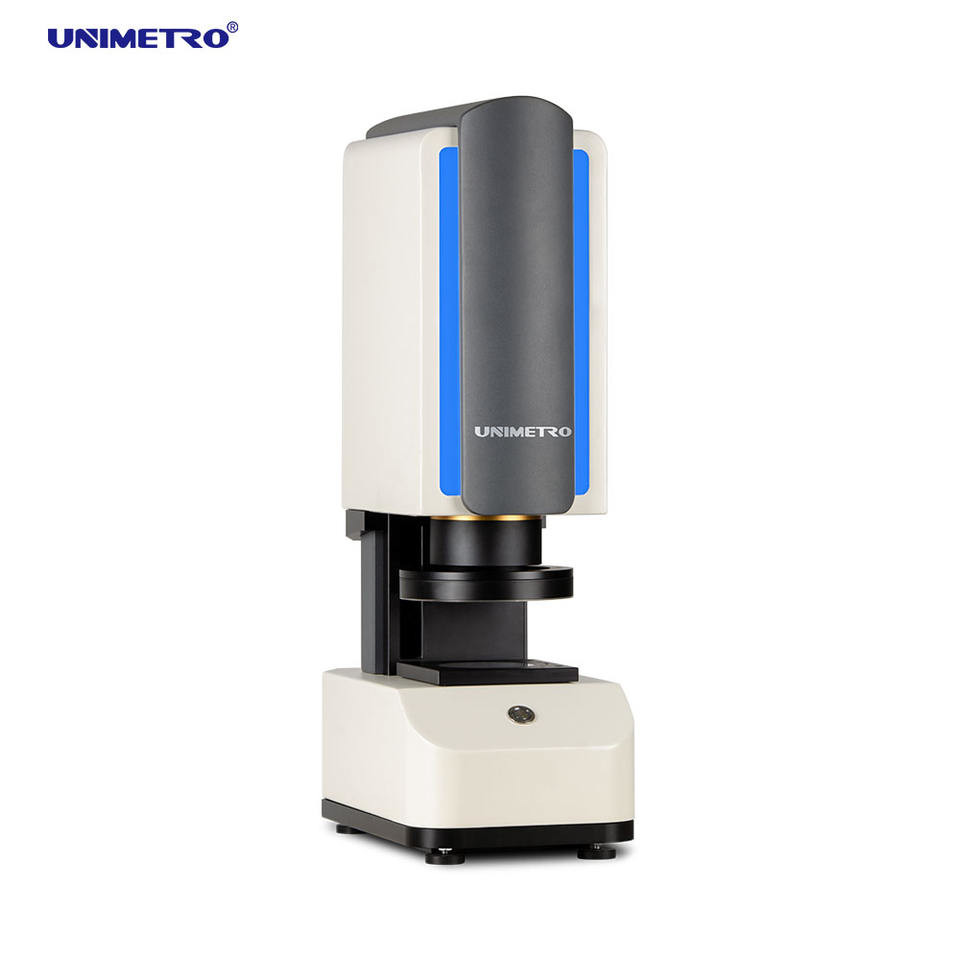

Microhardness Tester with 100X and 400X Magnification for Ferrous Metals

Low Loading Vickers Micro Hardness Tester

Advanced microhardness testing system with 5 KG capacity and dual magnification capabilities for precise material analysis.

Key Advantages

Applications

Materials: Black metal, nonferrous metal, IC thin pieces, surface coating, laminated metal

Other Materials: Glass, ceramics, agate, jewels, thin plastic

Specialized Testing: Hardness test for depth and gradient of charring layer and hardening layer

Technical Specifications

Parameter	Specification
Testing Force	1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0 N 0.2, 0.3, 0.5, 1.0, 2.0, 3.0, 5.0 Kgf
Carriage Control	Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification	100X, 400X
Holding Time	0-60 seconds
Test Drum Wheel Graduation	0.5μm minimum
Testing Range	5HV - 3999HV
X, Y Stage Dimension	100 × 100 mm
X, Y Stage Travel	25 × 25 mm
Max Specimen Height	200 mm
Max Specimen Width	130 mm
Power Supply	110V/220V, 60/50Hz
Dimensions	550 × 210 × 580 mm
Weight	35 Kg

Standard Accessories

Optional Accessories
