Digital Micro Vickers Hardness Tester with Optical System and High Internal Storage Capacity

Basic Information

Get Best Price Contact Now

Detail Information

Turret:	Automatic	Internal Memory Capability:	120 Testing Records
Testing Force:	4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N	Magnification Of The Measuring Microscope:	100X, 200X
Carriage Control:	Full-automatic (loading / Holding-up Of Loading / Unloading)	Power Supply:	110V/220V/, 60/50Hz
Highlight:	Optical Vickers Digital Hardness Tester , RS232 Vickers Hardness Tester , 100X Digital Vickers Hardness Tester

Product Description

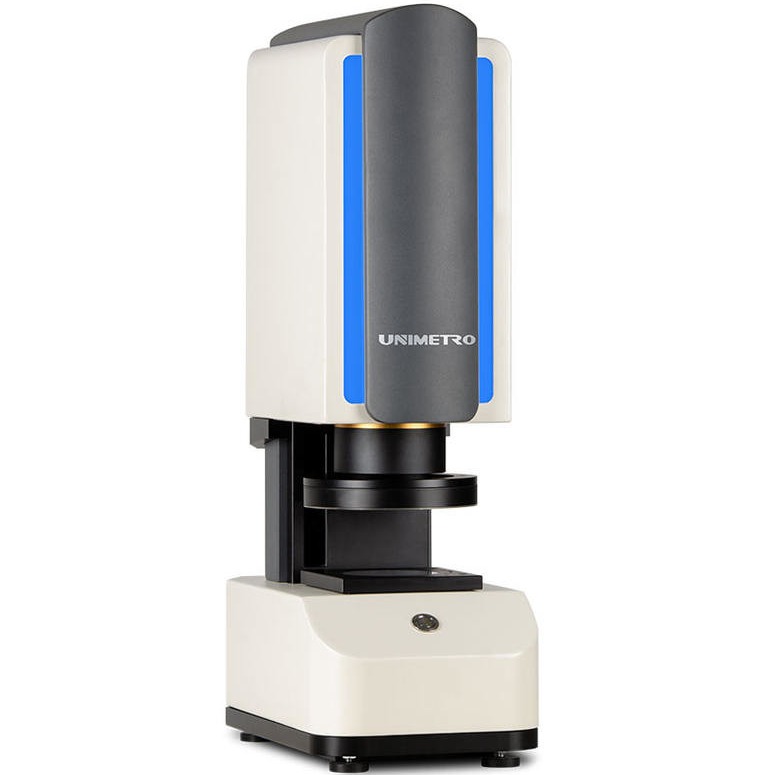

Digital Micro Vickers Hardness Tester with Optical System and High Internal Storage Capacity

Duo Optical System Vickers Micro Hardness Tester with Auto Turret and Internal Memory

Key Features:

Internal memory storage - all specifications saved after power off with database capacity of 6 groups, 20 records each
Dual optical terminal system - simultaneous observation and measurement via eyepiece and monitor during automatic indentation measurement
Large LCD display with manual selection function for easy operation
Wide application range including ferrous/non-ferrous metals, IC thin pieces, surface coatings, glass, ceramics, and hardened layers

Technical Specifications

Testing Force	4.90, 9.80, 19.6, 29.4, 49.0, 98.0, 294.0 N (0.5, 1, 2, 3, 5, 10, 30 Kgf)
Carriage Control	Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification	100X, 200X
Holding Time	0-60 seconds
Test Drum Wheel Graduation	0.25μm, 0.125μm
Testing Range	5-3999 HV
Max Specimen Height	200 mm
Max Specimen Width	130 mm
Power Supply	110V/220V, 60/50Hz
Dimensions	550 × 210 × 580 mm
Weight	35 kg

Standard Accessories
