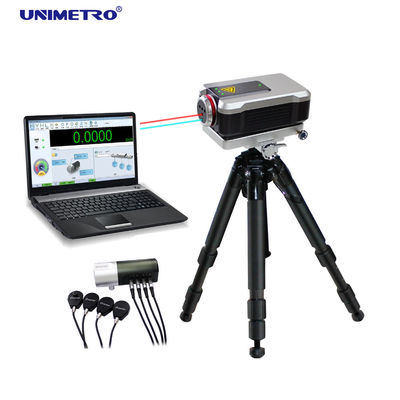

0.05ppm Laser Interferometer Measurement System 1nm Resolution

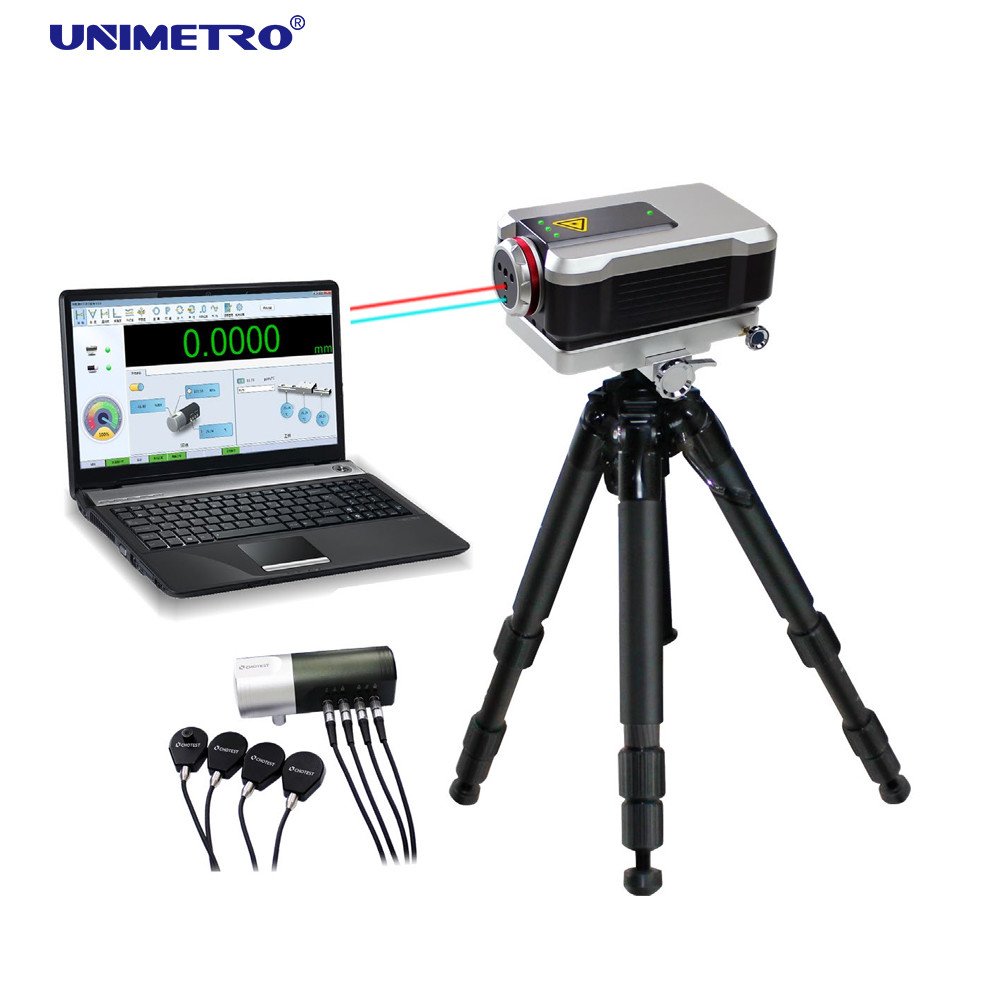

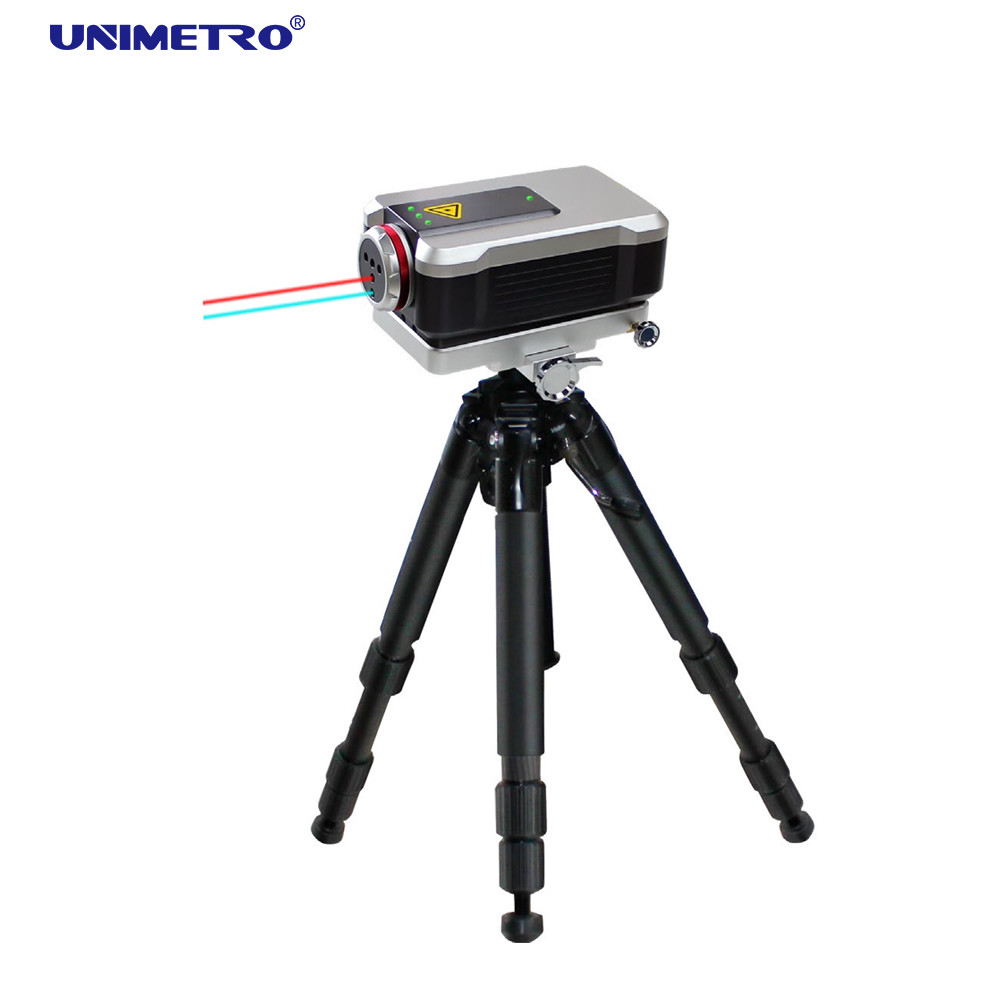

Laser interferometry is recognized as a high-precision, highly sensitive measuring method that uses light wavelength as a criterion, widely used in high-end manufacturing. The SJ6000 laser interferometer system incorporates a high-frequency Helium-Neon laser generator from a USA supplier, high-precision environmental compensation modules, advanced laser interference signal processing, and a high-performance computer control system.

Utilizing thermal frequency stabilization technology with laser dual-longitudinal mode and geometric parameters interference optical path design, the SJ6000 delivers long-term stable, high-precision (0.05ppm) laser output within approximately 6 minutes, with powerful anti-interference performance. With various prism modules, it measures linearity, angle, straightness, flatness, perpendicularity, and analyzes dynamic characteristics.

• High Precision Measurement: Nanoscale resolution using laser interferometry technology; eliminates environmental influences with high-precision compensation; ensures long-term frequency stability; separated interferoscope design prevents heat distortion
• Comprehensive Measurement Capabilities: Measures linearity, angle, straightness, perpendicularity and other geometrical parameters; evaluates linear positioning accuracy and repeated positioning accuracy for CNC machine tools, CMMs, and precision motion equipment
• Automatic Error Compensation: Generates error compensation tables for machine tool calibration based on user settings
• Dynamic Analysis: Performs dynamic measurements (displacement-time, velocity-time, acceleration-time curves), amplitude measurement, and frequency analysis for vibration testing and dynamic characteristic evaluation
• Built-in Standards: Includes GB, ISO, BS, ANSI, DIN, JIS standards; generates comprehensive test reports with charts and data
• Environmental Monitoring: Automatically acquires temperature, humidity, and pressure parameters with manual or automatic compensation
• Database Management: Centralized database for measuring records with query capabilities and export to Word, Excel, AutoCAD files
• Portable Design: Lightweight 15kg system for convenient portability
