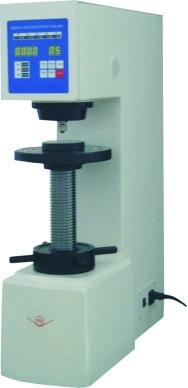

Digital Brinell Micro Hardness Tester with 62.6 kg – 3000 kg Automatic Force Loading

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	DHB-3000A

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	10 per month

Get Best Price Contact Now

Detail Information

Dimension:	789×543×225 Mm	Esting Drum Wheel Minimum Reading:	0.005mm
Reading Micro Scope:	20X	Testing Force Loading:	Automatic
Power Supply:	AC220V/110V 50~60Hz
Highlight:	micro hardness testing machine , digital hardness tester

Product Description

Digital Brinell Micro Hardness Tester with 62.6 kg – 3000 kg Automatic Force Loading

Product Overview

Advanced Digital Brinell Hardness Tester featuring automatic force loading from 62.6 KG to 3000 KG, designed for precision hardness testing in industrial applications.

Key Advantages

Latest C++ programming and pressure sensor duo CPU controlling system for enhanced reliability, stability, and repeatability
Dynamic force value fluctuation less than 1/1000 (compared to industry standard of 5/1000)
Precise testing force values and stable reading accuracy
User-friendly operation interface
10 testing force levels for versatile applications

Technical Specifications

Parameter	Specification
Testing Force	3000, 1500, 1000, 750, 500, 250, 187.5, 125, 100, 62.5 Kg
Force Loading	Automatic
Microscope	20X reading microscope
Drum Wheel Resolution	0.005mm minimum reading
Specimen Capacity	Max. Height: 225mm, Max. Width: 135mm
Power Supply	AC220V/110V 50~60Hz
Dimensions	789×543×225 mm
Weight	130Kg

Standard Accessories

Alloy steel indenters: ￠2.5mm, ￠5mm, ￠10mm (1 pc each)
Large and small testing stages (1 pc each)
Standard hardness blocks: HBW10/3000, HBW5/750
20X microscope eyepieces (1 pc)

Documentation

Download Product Brochure (DHB-3000&3000A.pdf)
