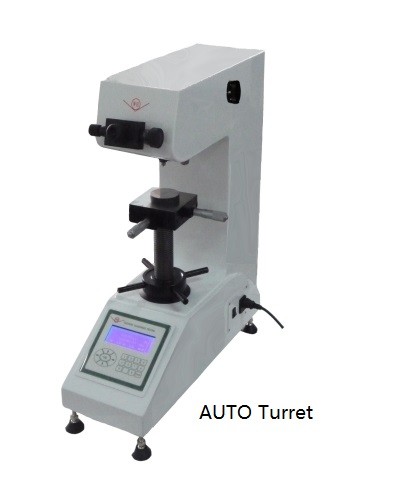

Name: Auto Turret Low Loading Vickers Hardness Testing Machine / Hardness Tester For Agate
Brand: Unimetro Precision Machinery Co., Ltd
SKU: HV-10Z
Price: 20,500.00 USD
Availability: InStock

Detail Information

Testing Force:	2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0 N	Carriage Control:	Full-automatic (loading / Holding-up Of Loading / Unloading)
Magnification Of The Measuring Microscope:	100X, 400X	Power Supply:	110V/220V, 60/50Hz
Life Cycle Of The Halogen Lamp:	30000 Hrs
Highlight:	micro hardness testing machine , hardness testing equipment

Product Description

Low-Load Vickers Hardness Tester with Automatic Turret for Agate Testing

Auto Turret 10 KG Low Loading Vickers Micro Hardness Tester for Agate and Thin Plastic Applications

Technical Specifications

Testing force	(2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0) N (0.3, 0.5, 1, 2, 3, 5, 10) Kgf
Carriage control	Full-automatic (loading / holding-up of loading / unloading)
Magnification of measuring microscope	100X, 400X
Holding time	(0～60) S
Min. graduation value of test drum wheel	0.5μm
Testing range	5HV～3999HV
X, Y stage dimension	100×100 mm
X, Y stage travel	25×25 mm
Max. Height of specimen	200 mm
Max. Width of specimen	130 mm
Power supply	110V/220V, 60/50Hz
Dimension	550×210×580 mm
Weight	35 Kg

Key Features

Includes automatic turret for enhanced functionality
Latest C++ programming increases hardware reliability and stability
LCD display with manual selecting and scales switching for easy operation
7 testing force levels to meet various measuring demands
Precise locating structure replaces traditional spring sheet for better accuracy and reliability
Unique embedded halogen lamp illumination with 30,000+ hours working life
10X and 40X objective lenses for observing and measuring with larger range

Testing Applications

Hardness testing for depth and gradient of charring layer and hardening layer
Glass, ceramics, agate, and jewels
Thin plastic materials
Black metal and nonferrous metals
IC thin pieces and surface coatings
Laminated metal components

Standard Accessories

Vickers indenter
10X eyepiece
Gradienter
Cross testing stage
Level adjusting screw
Vickers hardness block
RS232 communication cable

Optional Accessories

Knoop indenter
Knoop hardness test standard block
SP-2008 vision measuring device
CCD indentation automatic measuring device
Working stage
V type working stage
Special specimen clamping stage
