Laser Interferometer Measurement System Featuring 0.05ppm Precision and 1nm Resolution

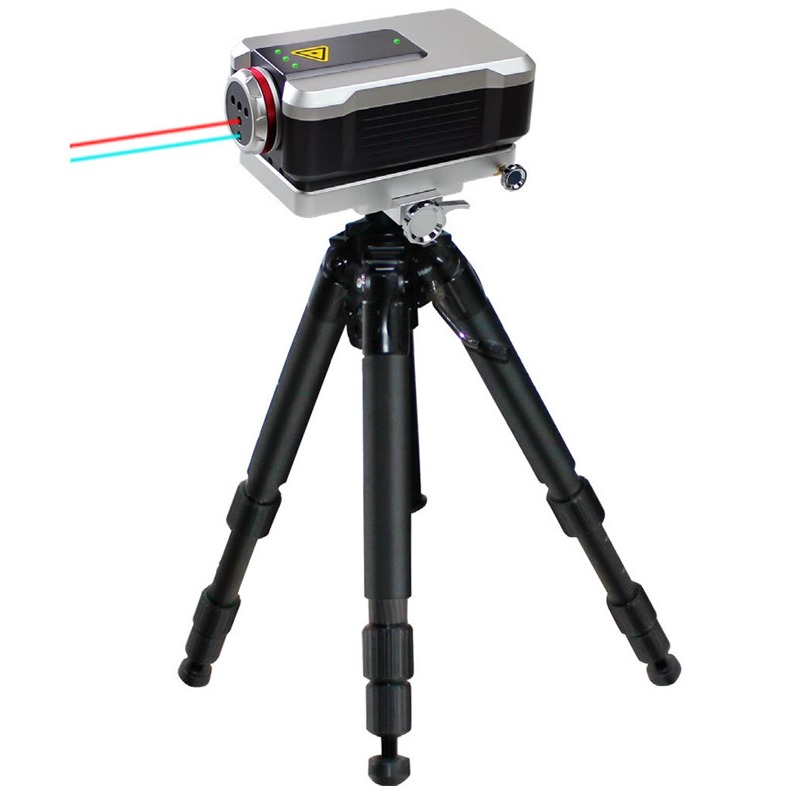

Laser interferometer is recognized as a high precision, high sensitivity measuring method that uses light wavelength as a criterion, widely used in high-end manufacturing domains. The SJ6000 laser interferometer system incorporates a high-frequency Helium-Neon laser generator from a USA supplier, high-precision environmental compensation modules, advanced laser interference signal processing, and a high-performance computer control system.

Utilizing thermal frequency stabilization technology of laser dual-longitudinal mode and geometric parameters interference optical path design, the SJ6000 delivers long-term stable, high-precision (0.05ppm) laser output quickly (approximately 6 minutes) with powerful anti-interference performance. With different prism modules, it can measure linearity, angle, straightness, flatness, perpendicularity, and analyze dynamic characteristics.

• High Precision Measurement: Resolution up to nanoscale using laser interferometry technology; High-precision environmental compensation eliminates influences from ambient temperature, pressure, humidity, and material temperature; Laser thermal frequency stabilization ensures long-term frequency stability; Separated interferoscope design prevents heat distortion and ensures interference optical path stability.
• Comprehensive Measurement Capabilities: Measures linearity, angle, straightness, perpendicularity and other geometrical parameters; Measures linear positioning accuracy and repeated positioning accuracy of guide rails for CNC machine tools, coordinate measuring machines, and other precision motion equipment; Measures pitch angle, swing angle, perpendicularity and straightness of guide rails; Calibrates rotary axis of machine tools.
• Automatic Compensation: System automatically generates error compensation tables for machine tool calibration based on user settings.
• Dynamic Analysis: Dynamic measurements (displacement-time curve, velocity-time curve, acceleration-time curve), amplitude measurement and frequency analysis for vibration testing of machine tools, dynamic characteristics of ball screws, response characteristics of drive systems, and dynamic characteristics of guide rails.
• Built-in Standards: Includes domestic and international standards (GB, ISO, BS, ANSI, DIN, JIS); System analyzes and processes data according to relevant standards and generates test reports with corresponding charts and data.
• Environmental Parameter Acquisition: Automatically acquires environmental temperature, material temperature, humidity and atmospheric pressure parameters; Environmental compensation can be set manually or automatically.
• Database Management: Centralized database management for measuring records with query capabilities by object type, testing institution, manufacturing number, inspector, submitted institution, equipment number, inspection date and effective date; Data export to Word, Excel, AutoCAD (optional) files.
• Portable Design: Base weight 15kg for convenient portability and easy installation.
