Name: 10 KG Vickers Micro Hardness Tester with Optocoupler Control for Glass and Jewels
Brand: Unimetro Precision Machinery Co., Ltd
SKU: HV-10
Price: 20,500.00 USD
Availability: InStock

Detail Information

Highlight:

digital hardness tester

hardness testing equipment

Product Description

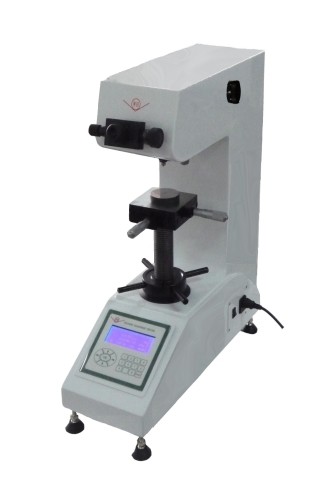

10 KG Vickers Micro Hardness Tester with Optocoupler Control for Glass and Jewels

Product Overview

The HV-10 series Vickers micro hardness tester features unique and precise mechanical, electrical, and optical design, specifically engineered for industrial and institutional hardness testing of various materials.

Ideal Applications Include:

Black metals, nonferrous metals, IC thin pieces, surface coatings, laminated metals
Glass, ceramics, agate, jewels, thin plastics
Hardness testing for depth and gradient of charring layers and hardening layers

Key Features & Technology

Integrated LCD display with manual selection and scales switching for easy operation
10X and 40X objective lenses for observation and measurement, ensuring larger measuring range and wider application
Precise locating structure replaces traditional spring sheets, offering superior locating accuracy and reliability
High-performance optocoupler control during loading and unloading processes (unique feature in this category)
Embedded halogen lamp illumination with high-quality halogen lamps providing over 30,000 hours working life

Technical Specifications

Parameter	Specification
Testing Force	(2.94, 4.90, 9.80, 19.6, 29.4, 49.0, 98.0) N (0.3, 0.5, 1, 2, 3, 5, 10) Kgf
Carriage Control	Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification	100X, 400X
Holding Time	0-60 seconds
Min. Graduation Value	0.5μm
Testing Range	5HV - 3999HV
X, Y Stage Dimension	100 × 100 mm
X, Y Stage Travel	25 × 25 mm
Max. Specimen Height	200 mm
Max. Specimen Width	130 mm
Power Supply	110V/220V, 60/50Hz
Dimensions	550 × 210 × 580 mm
Weight	35 Kg

Standard Accessories

Vickers indenter
10X eyepiece
Gradienter
Cross testing stage
Level adjusting screw
Vickers hardness block
RS232 communication cable

Optional Accessories

Knoop indenter
Knoop hardness test standard block
SP-2008 vision measuring device
CCD indentation automatic measuring device
Working stage
V type working stage
Special specimen clamping stage

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	HV-10

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	10 per month
