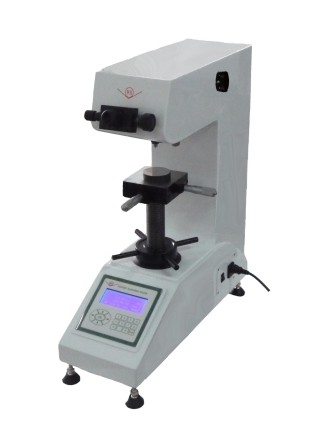

Low-Load Vickers Microhardness Tester with 100X and 400X Magnification

Advanced low-load Vickers microhardness tester featuring dual magnification capabilities and precise testing force control for comprehensive material analysis.

• Latest C++ programming for enhanced hardware reliability and stability
• Unique and precise mechanical, electrical, and optical design
• 7 testing force levels to meet various measurement requirements
• Integrated LCD display with manual selection and scales switching functions
• 10X and 40X objective lenses for observation and measurement
• Precise locating structure replacing traditional spring sheets
• High-performance optocoupler control during loading/unloading processes
• Embedded halogen lamp illumination with 30,000+ hour lifespan
• Excellent price-performance ratio
• Industry-leading advanced technology

Suitable for a wide range of materials including:

• Ferrous and non-ferrous metals, IC thin pieces, surface coatings, laminated metals
• Glass, ceramics, agate, jewels, thin plastics
• Hardness testing for charring layer depth and gradient of hardening layers

• Vickers indenter
• 10X eyepiece
• Gradienter
• Cross testing stage
• Level adjusting screw
• Vickers hardness block
• RS232 communication cable

• Knoop indenter
• Knoop hardness test standard block
• SP-2008 vision measuring device
• CCD indentation automatic measuring device
• Working stage
• V type working stage
• Special specimen clamping stage
