Detail Information

Measuring Materials:	Black Metal, Nonferrous Metal IC Thin Pieces, Surface Coating, Laminated Metal	Holding Time:	0 - 60 S
X, Y Stage Dimension:	100×100 Mm	X,Y Stage Travel:	25×25 Mm
Max. Height Of The Specimen:	200 Mm	Max. Width Of The Specimen:	130 Mm
Highlight:	micro hardness testing machine , hardness testing equipment

Product Description

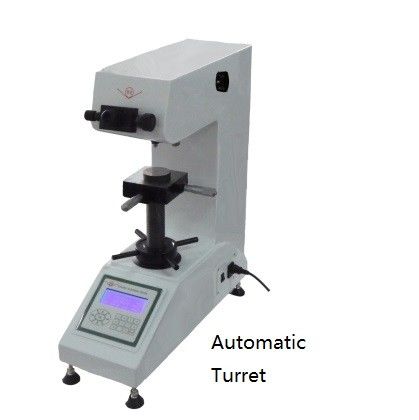

Micro Hardness Testing Equipment with Automatic Turret, Measuring Range 5 HV – 3999 HV

Product Overview

Automatic Turret Vickers Micro Hardness Tester with 5 KG capacity and measuring range from 5 HV to 3999 HV, designed for precision hardness testing across various materials and applications.

Key Features

Automatic turret system for efficient operation
Precise locating structure replaces traditional spring sheets, providing superior accuracy and reliability
High-performance optocoupler control during loading and unloading processes
Latest C++ programming for enhanced hardware reliability and stability
Unique and precise mechanical, electrical, and optical design
7 testing force levels to meet diverse measurement requirements
LCD display with manual selection and scales switching for easy operation
10X and 40X objective lenses for observation and measurement

Technical Specifications

Testing Force	(1.96, 2.94, 4.90, 9.80, 19.6, 29.4, 49.0) N (0.2, 0.3, 0.5, 1.0, 2.0, 3.0, 5.0) Kgf
Carriage Control	Full-automatic (loading / holding-up of loading / unloading)
Microscope Magnification	100X, 400X
Holding Time	0-60 seconds
Min. Graduation Value	0.5μm
Testing Range	5HV - 3999HV
X, Y Stage Dimension	100 × 100 mm
X, Y Stage Travel	25 × 25 mm
Max. Specimen Height	200 mm
Max. Specimen Width	130 mm
Power Supply	110V/220V, 60/50Hz
Dimensions	550 × 210 × 580 mm
Weight	35 kg

Standard Accessories

Vickers indenter
10X eyepiece
Gradienter
Cross testing stage
Level adjusting screw
Vickers hardness block
RS232 communication cable

Optional Accessories

Knoop indenter
Knoop hardness test standard block
SP-2008 vision measuring device
CCD indentation automatic measuring device
Working stage
V type working stage
Special specimen clamping stage

Applications

Black metal

Nonferrous metal

IC thin pieces

Surface coating

Laminated metal

Glass

Ceramics

Agate

Jewels

Thin plastic

Hardness test for depth and gradient of charring layer

Hardness test for hardening layer

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	HV-5Z

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	8 work days
Payment Terms:	T/T
Supply Ability:	10 per month
