Real-Time Defect Screening Machine Utilizing Non-Contact Imaging for Size and Angle Verification

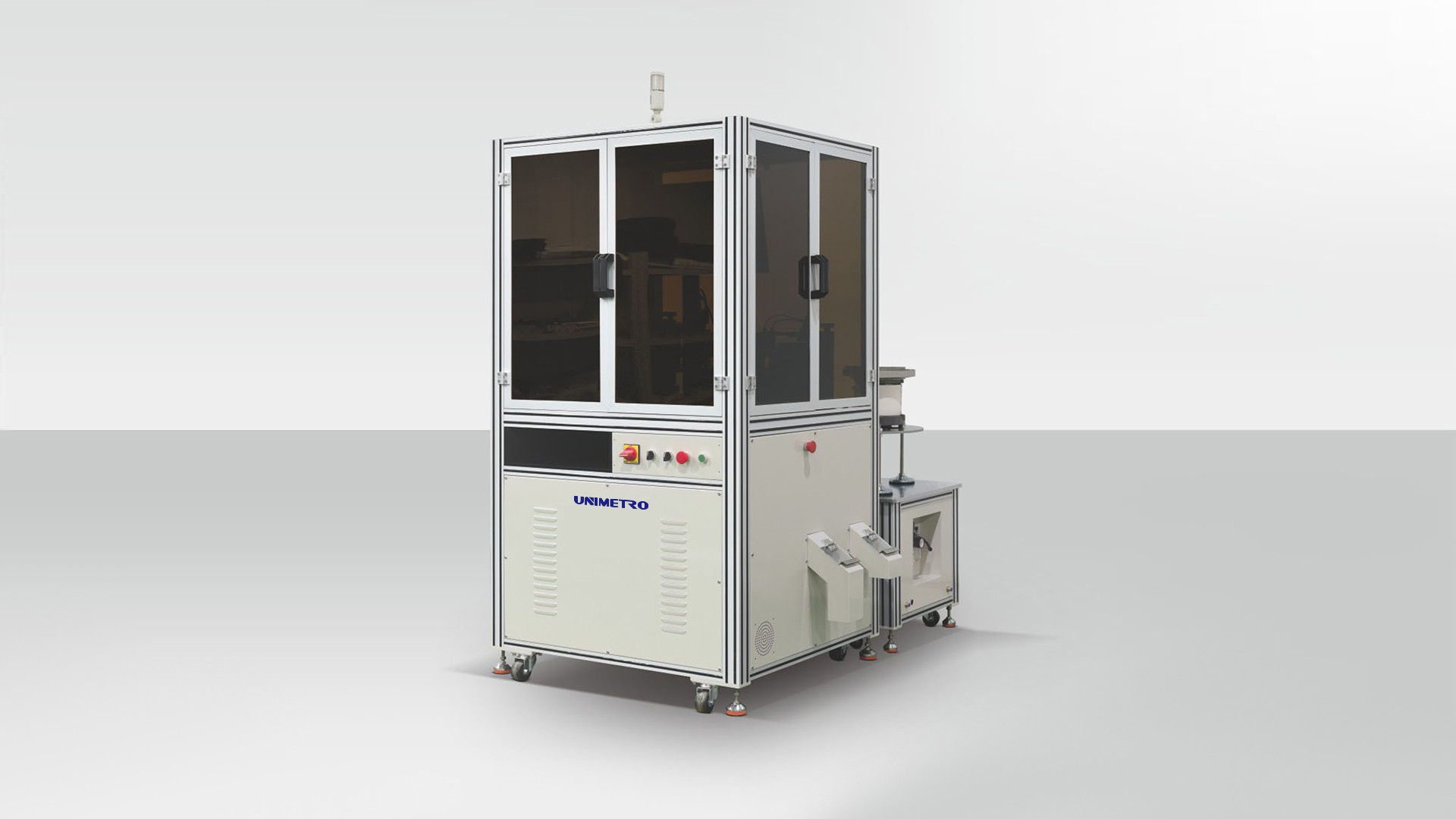

High Efficiency AOI Inspection Machine for Magnetic Products
Our visual inspection equipment is a high-speed precision automatic measuring and screening system that integrates vision measurement software, CCD industrial cameras, mechanical components, industrial computers, electrical systems, and solenoid valve blowing functions.
The system automatically transports workpieces through feeding devices (vibrating plates, manipulators, belts) to the detection station for high-speed photography. Visual inspection software then evaluates and calculates results, sorting workpieces into good and defective products according to preset criteria using electromagnetic valves for automated classification.
Detection Capabilities
- Workpiece size measurement
- Appearance defect detection
- Color recognition and defect detection
- Character recognition (OCR) and defect detection
- Barcode recognition and defect detection
- Coding recognition and defect detection
Visual Inspection Advantages
Non-contact measurement prevents workpiece damage
High detection accuracy up to 0.001mm
Fast detection speed: 5000 pieces per minute
Improves overall enterprise efficiency
Reduces labor and material costs
Fully automatic, stable, and reliable operation
Enhances corporate competitiveness
Application Fields
Widely used in mobile phones, electronics, precision hardware, injection molding, industrial manufacturing, automotive manufacturing, mechanical processing, powder metallurgy, new energy, components, electrical appliances, clothing, daily necessities, food, medical, pharmaceutical, military, and aerospace industries.
Visual Inspection Equipment for Magnetic Products
UNIMETRO visual inspection equipment provides effective solutions for appearance defects and dimensional quality issues in NdFeB magnetic material manufacturing. The system automatically inspects magnetic product appearance defects and dimensions while intelligently outputting inspection reports.
Product Specifications
Compatible Products: NdFeB magnetic material products, automotive magnetic parts, inductive magnetic skeletons, various magnetic special-shaped parts
Dimensions: 900×1000×1800mm (L×W×H)
Weight: 300kg
Key Features
- Automatically detects appearance defects and dimensions of commutators
- All testing items completed in one operation
- High versatility - single device detects multiple commutator products
- Industry-leading defect detection for commutator appearance
- Detection speed: 800 pieces per minute
- Detection accuracy: 0.001mm
- Automatic classification and sorting of good/defective products
- Automatic feeding with storage hopper reduces manual intervention
- Equipped with imported optical components from Germany, Japan, and Italy
- Intelligent test reporting for production process improvement
- Easy to learn and operate - independent operation after 1-2 days training
- 24/7 uninterrupted operation capability
Technical Parameters
| Size Detection |
Length, width, height, inner/outer diameter, step size, roundness, profile angle, shape tolerance detection |
| Exterior Detection |
Chipping, breakage, bumps, scratches, burrs, foreign bodies, etc. |
Inspection System Technology
Our independently developed visual inspection software represents over ten years of continuous improvement by our core R&D team, maintaining cutting-edge technological advantages.
- Software includes over 2000 functions covering defects, color, size, copper leakage, OCR
- Quality control system suitable for rapid detection across 100+ industries
- Full automatic non-contact detection prevents workpiece damage
- Programmable software filters up to 32 categories simultaneously
- Detection speed up to 5000 pieces per minute
- Ultra-high accuracy up to 1μm depending on workpiece
- Complete automation from detection to packaging
- User-friendly interface with ERP system integration
Appearance Defect Detection
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We specialize in vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, etc.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable specifications based on your product variety and size requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and custom solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our product warranty period is 1 year. We have enhanced durability on breakable components for reliable performance.
