Inline Automatic Dimension Check Machine for Angular Measurement and Product Sorting
Automatic Dimension Check Machine With Sorting Function

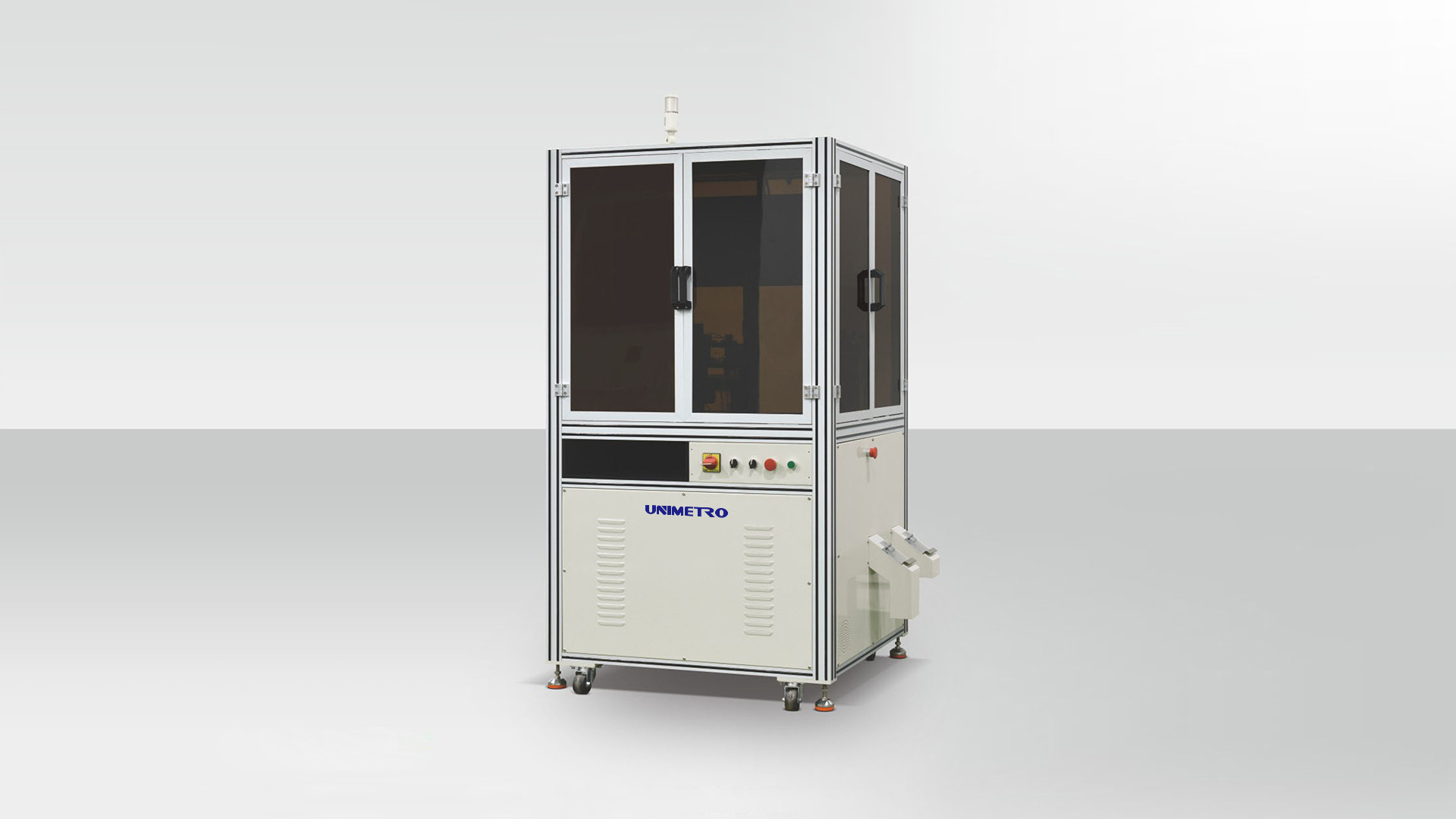

This high-speed precision automatic measuring and screening equipment integrates vision measurement software, CCD industrial camera, mechanical systems, industrial computer, electrical components, and solenoid valve blowing functions. The system automatically transports workpieces to the detection station for high-speed photography, evaluates results through visual inspection software, and sorts products into good and defective categories using electromagnetic valves.
Detection Capabilities
- Workpiece size measurement
- Workpiece appearance defect detection
- Color recognition and defect detection
- Character recognition (OCR) and defect detection
- Bar code recognition and defect detection
- Coding recognition and defect detection
Visual Inspection Advantages
- Non-contact measurement - no damage to workpieces
- High detection accuracy up to 0.001mm
- Fast detection speed - 5000 pieces per minute
- Improves overall enterprise efficiency
- Saves manpower and material costs
- Fully automatic, stable and reliable operation
- Enhances corporate competitiveness
Application Fields
Widely used in mobile phones, electronic products, precision hardware, injection molding products, industrial manufacturing, automobile manufacturing, mechanical processing, powder metallurgy, new energy, components, electrical appliances, clothing, daily necessities, food, medical, pharmaceutical, military, aerospace and other fields.
Electronic Product Visual Inspection Solutions
UNIMETRO electronic product visual inspection equipment provides effective solutions to quality problems in electronic product manufacturing. The system automatically inspects appearance defects and dimensions while intelligently outputting inspection reports, helping manufacturers optimize production processes, reduce costs, and ensure perfect product quality.
Product Specifications
Compatible Products: Mobile phone electronic accessories, electronic connectors, miniature radio frequency connectors, coaxial connectors, fingerprint recognition chips, electronic buttons, electronic components, and various electronic products
Dimensions: 900×1000×1800mm (L×W×H)
Weight: 300kg
Key Features
- Automatically detects appearance defects and dimensions of commutators
- All testing items completed in one operation
- High versatility - single device detects multiple commutator products
- Industry-leading defect detection for commutator appearance
- Detection speed up to 800 pieces per minute
- Detection accuracy up to 0.001mm
- Automatic classification and sorting of good and defective products
- Automatic feeding with storage hopper reduces manual feeding frequency
- Equipped with imported optical components from Germany, Japan and Italy
- Intelligent test output helps improve production processes
- Easy to learn and use - operational after 1-2 days training
- 7×24 hours uninterrupted operation
Detection Items
| Size Detection |
Exterior Detection |
OCR Detection |
| Height, length, width, inner diameter, outer diameter, step size, angle, profile, roundness, chamfer size |
Deformation, damage, cracking, lack of glue, excessive glue, bumps, burrs, color difference, imprints |
Character defect, no character, character error, character mixture |
Inspection System Technology
Our independently developed visual inspection software features over ten years of continuous improvement by our core R&D team. The system includes more than 2000 functions covering defects, color, size, copper leakage, OCR and more, serving quality control needs across 100+ industries.
The programmable software can filter up to 32 categories and handle multiple workpieces simultaneously. With detection speeds up to 5000 pieces per minute and accuracy up to 1μm, the system eliminates manual operations, reduces labor costs, and minimizes human impact on quality control.
The intelligent software features a user-friendly interface with simulation data options, enhanced large batch data processing, and ERP system integration for efficient enterprise data management.
