Electronic Display Feeler Gauge with Optical Linear Encoder / Digital Wedge-Style Precision Scale

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UXY

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	30 per month

Get Best Price Contact Now

Detail Information

Measuring Range:	0-10mm, 5-15mm, 10-20mm, 20-30mm, 30-40mm	Resolution:	0.01mm
Accuracy:	0.03mm	Max. Moving Speed:	1.5m/s
Working Temperature:	0-40°C	Humidity:	<80%
Highlight:	optical linear encoder , linear glass scale

Product Description

Electronic Display Feeler Gauge with Optical Linear Encoder

Digital Wedge-Style Precision Scale

Advanced electronic feeler gauge featuring optical linear encoder technology for precise gap measurement in industrial applications.

Product Function

Designed for static or dynamic gap measurement on turbines and hydraulic turbines. Features clear LCD display for accurate readings.

Operation Instructions

Battery Replacement: Open the cover to change battery, then close to lock securely
ZERO Button: Set reading to 0 at any position
ON/OFF Button: Power control
Preparation: Loosen screw, clean scale sides with rag, move reader head to right end, align auxiliary scale with wedge, set reading to 0

Available Models

Model	Measuring Range
UNIMETRO UXY-1	0-10mm
UNIMETRO UXY-2	5-15mm
UNIMETRO UXY-3	10-20mm
UNIMETRO UXY-4	20-30mm
UNIMETRO UXY-5	30-40mm

Measurement Procedures

Direct Measuring (Model UXY-1)

Insert wedge feeler into wedge groove, ensure bottom side of auxiliary scale has full contact with measuring surface and remains vertical. LCD displays direct measurement data.

Adding Measuring (Models UXY-2 to UXY-5)

Align auxiliary scale with wedge block end side, set position to 0, then perform measurement. Calculate real value using formula: LCD display value + wedge reading value.

Example: Display shows 7.5mm, wedge marking +5mm (Model 2) = Real value 12.5mm

Technical Specifications

Parameter	Specification
Measuring Range	0-10mm, 5-15mm, 10-20mm, 20-30mm, 30-40mm
Resolution	0.01mm
Accuracy	0.03mm
Max. Moving Speed	1.5m/s
Working Temperature	0-40°C
Humidity	80%
Battery	1.5V (SR44W)

Customized options available with 15 working days delivery

Usage Precautions

Avoid dusty or wet environments - maintain humidity below 80%
Protect from UV exposure and high temperature radiation
Handle moving scale block carefully to prevent dropping or impact damage
Keep away from magnetic objects
Clean with gasoline only, use clock lubricant for sliding surfaces
Do not use alcohol - protect electronics from any liquid contact

Troubleshooting Guide

Error	Possible Cause	Solution
LCD not displaying or characters flashing	Low battery or loose battery connection	Replace or adjust battery

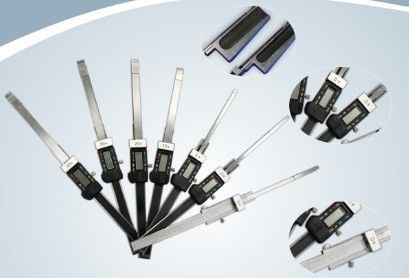

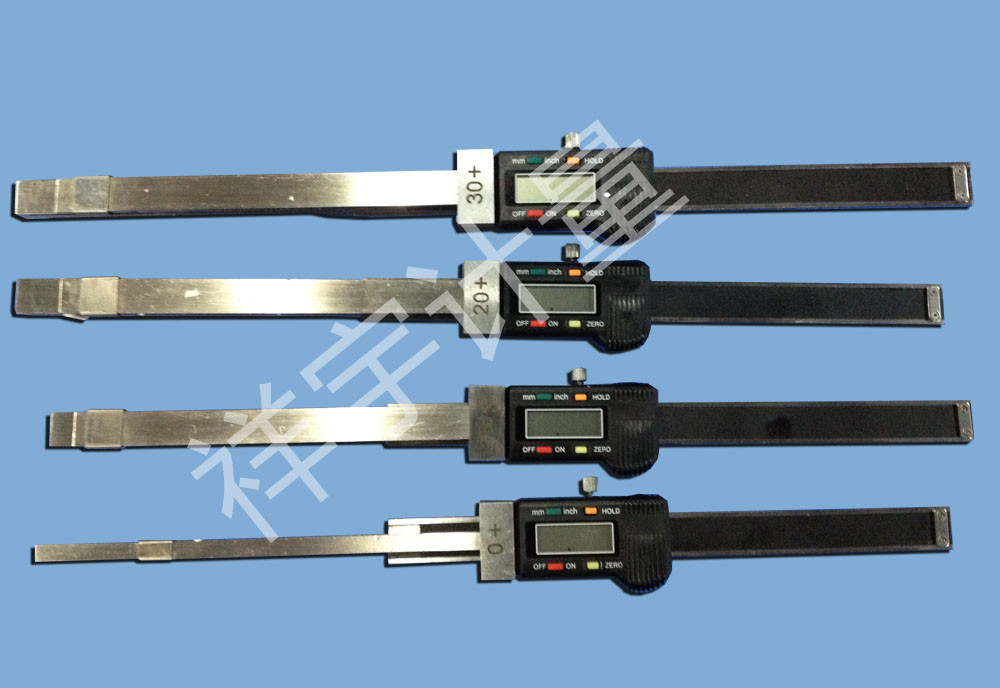

Product Images

Our Clients & Agents

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a manufacturing factory and provide responses within 24 hours.

Q: What does your company specialize in?

A: We primarily produce vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, and related precision measurement equipment.

Q: How to choose the appropriate specification?

A: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.

Q: Do you accept customized service?

A: Yes, we provide both standard machines and custom solutions tailored to specific customer needs.

Q: What is your warranty period?

A: Our products come with a 1-year warranty. We've enhanced durability on breakable parts for reliable long-term performance.
