Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
    • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
    • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
    • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
    • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
  • Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Product Details:

    Place of Origin: China
    Brand Name: UNIMETRO
    Model Number: SD2

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: box
    Contact Now
    Detailed Product Description
    Accuracy: +-5um/m High Linearity: +-2.5um/m
    Small Size: Thickness * Width (0.2mm*8mm) Low Expansion Coefficient: 10.5um/m/℃

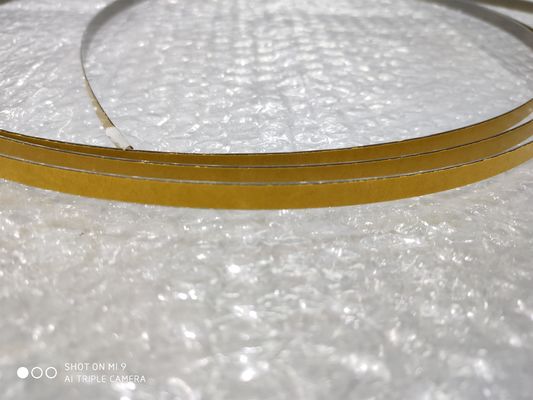

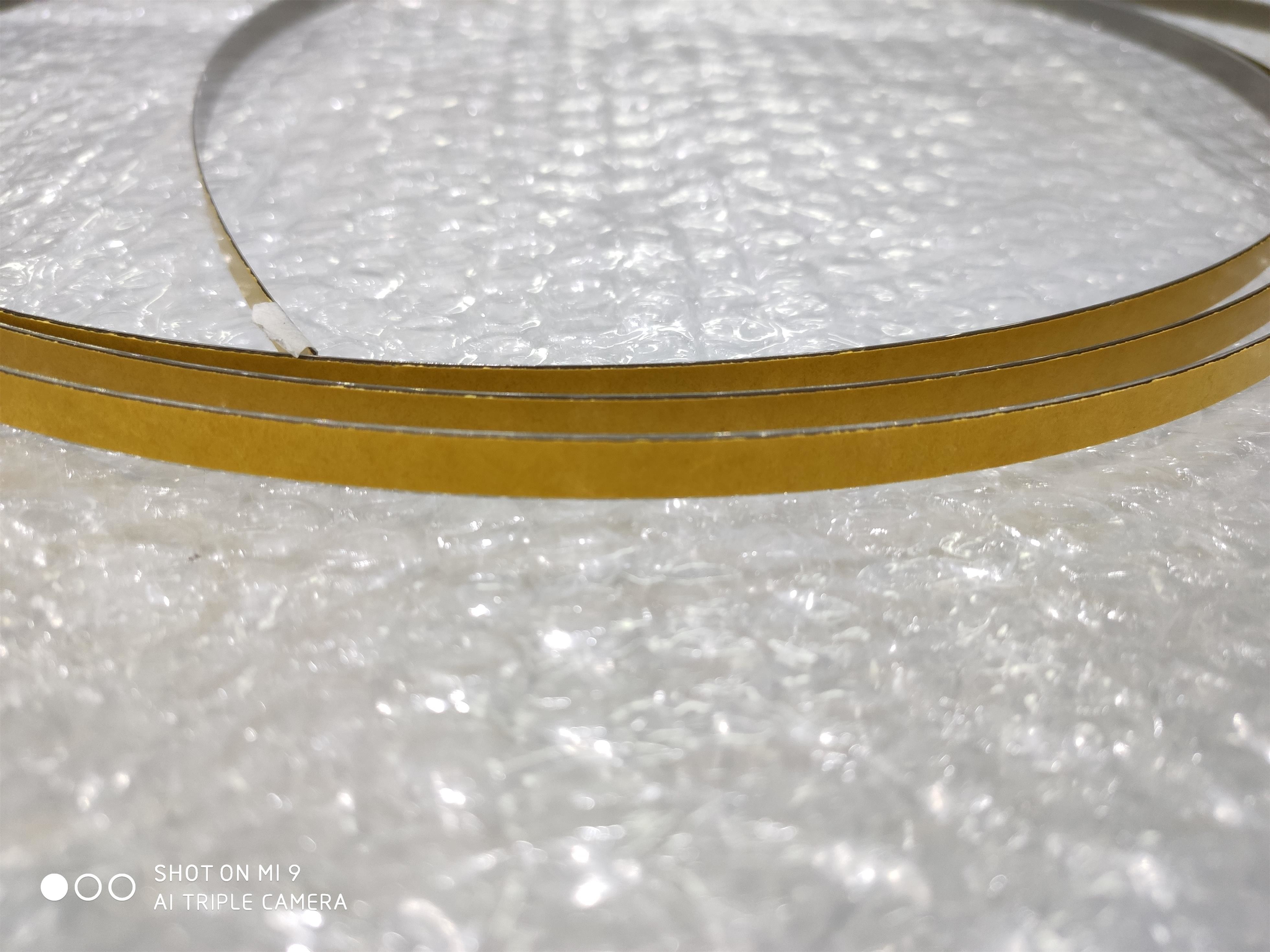

    Express Installation: Provide Stick Ruler Tools, Bar Ruler With Back Glue Excellent Material: Corrosion Resistance, High Hardness
    Long Size: Can Provide 50m Super Length Customization



    Open type Linear scale High precision Grating ruler
    Open type Linear scale High precision Grating ruler Incremental 20um grating ruler for measurement equipment


    Product Introduction


    RUS grating ruler is an incremental 2um grating ruler designed to provide feedback for high precision linear measurement. It adopts UNIMETRO's most advanced interference grating line marking technology, and the grating line error is controlled below 40 nm. It uses high strength, corrosion-resistant special stainless steel to ensure long-term stable use.

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

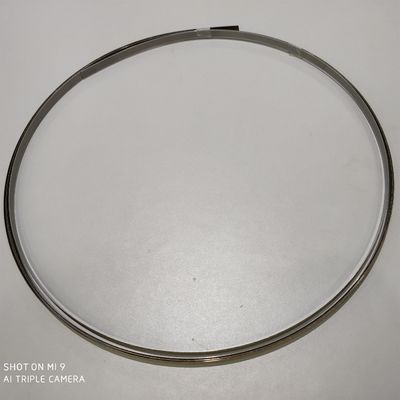

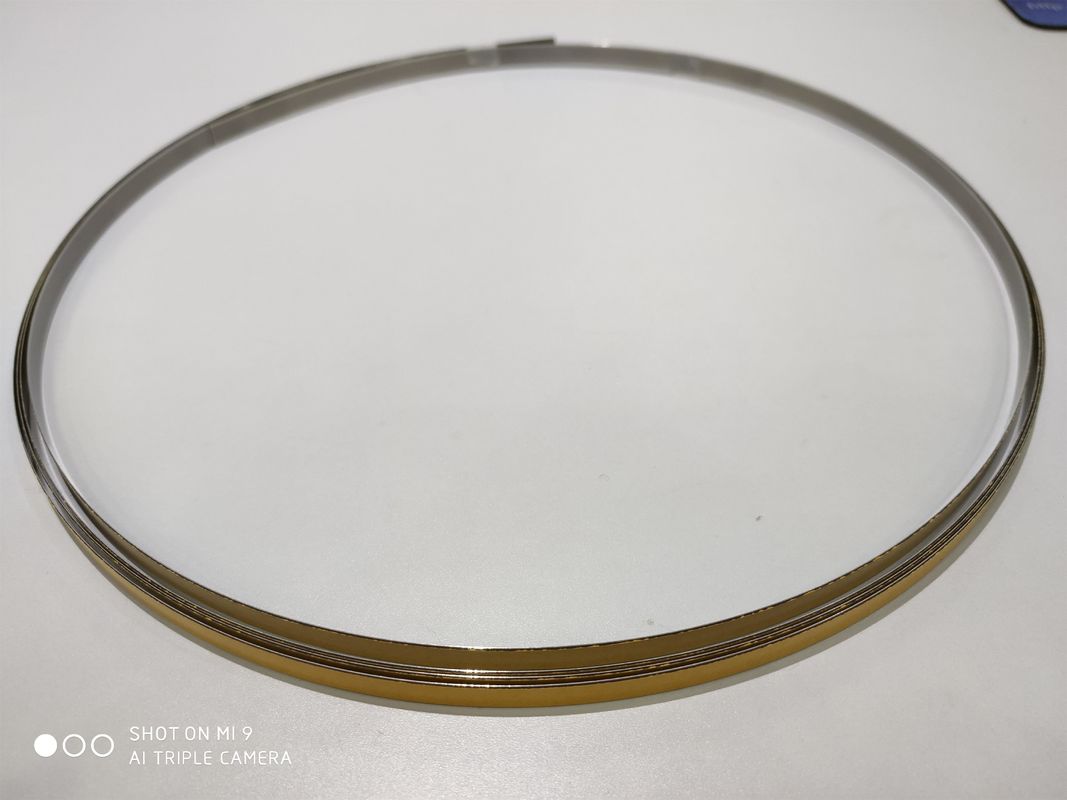

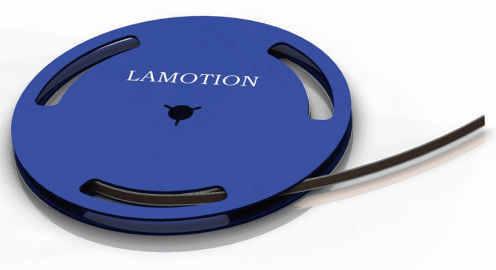

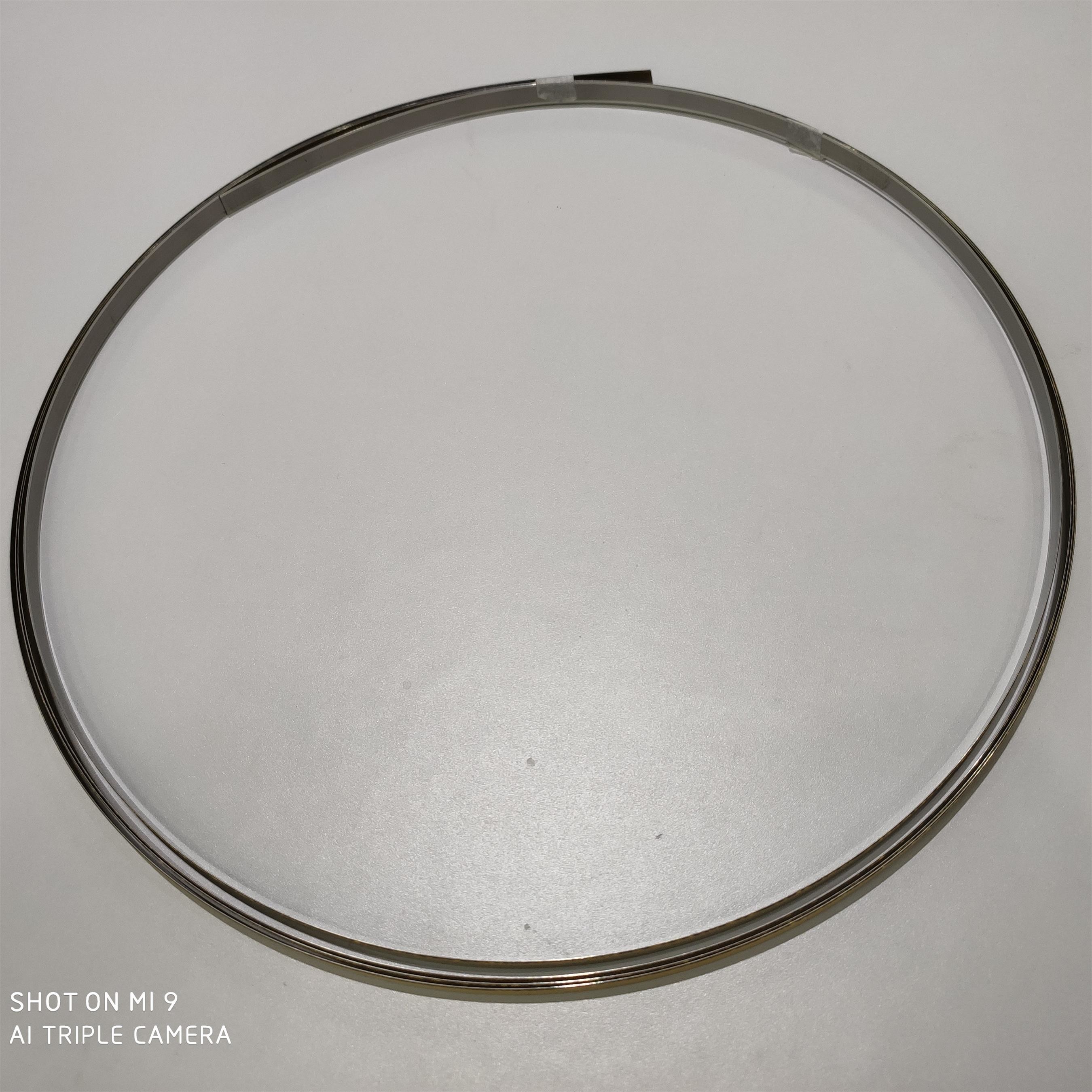

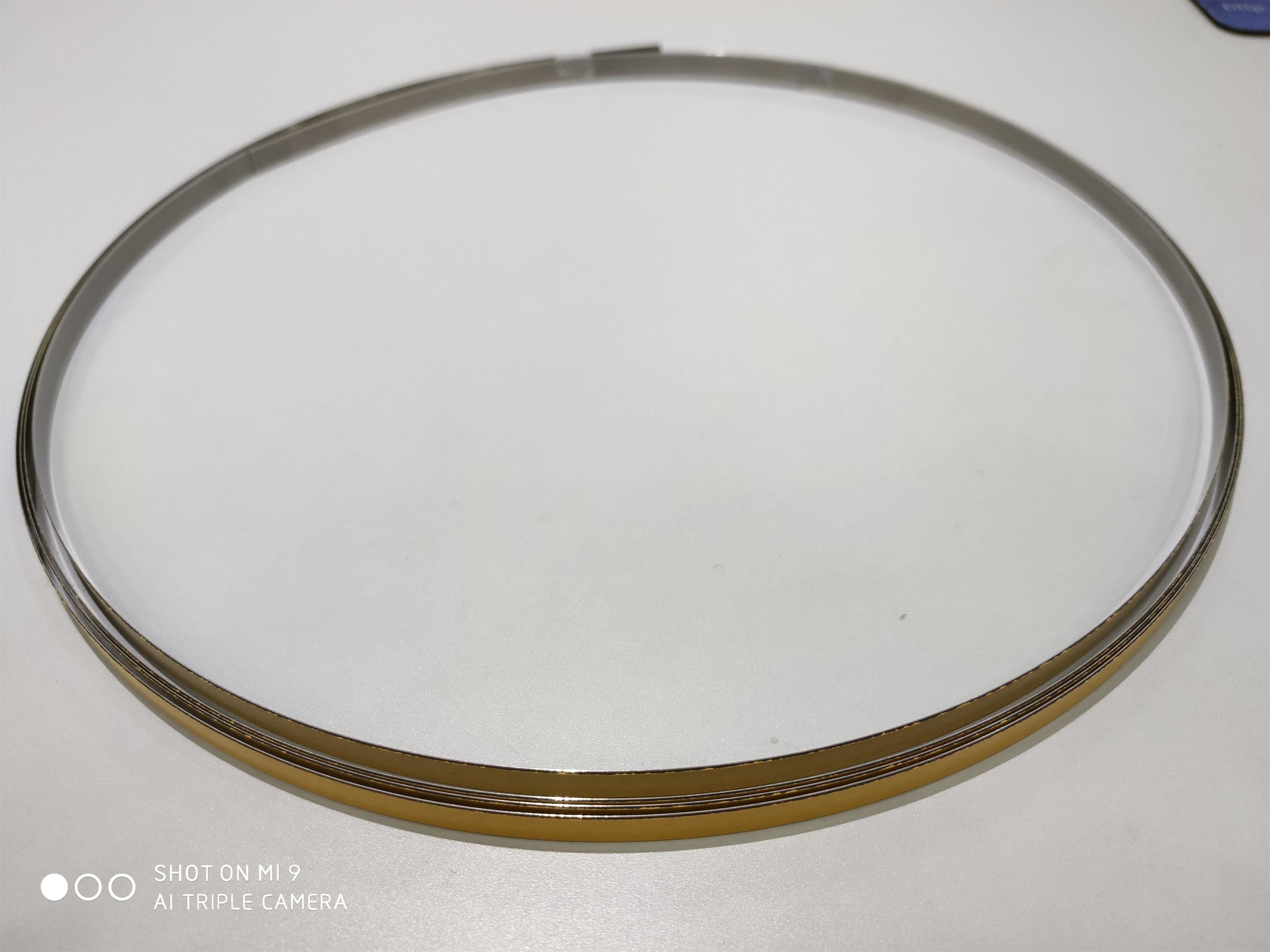

    RUS Series Linear Scale ---- Ultra-long and High Precision Steel Strip Reflective Grating ruler


    System characteristics

    RUS High Precision Stainless Steel Gate Ruler is made of high precision, super hard, high elasticity and corrosion resistant special substrates.Excellent mechanical and chemical properties of the substrate ensure its long-term stability and reliability;RUS high-precision stainless steel grating ruler uses advanced marking technology to achieve fine marking of 20 micron spacing grating lines, and ensures the accuracy of less than 40 nanometers, +5 um/m, the ruler has its own backing glue, and can be quickly installed by sticker tool.


    ● High Precision: +5um/m ● Low expansion coefficient: 10.5um/m/~C
    ● High linearity: +2.5um/m ● Fast Installation: Provide tape tool, tape tape with back glue
    ● Small size: 0.2mm thick * 8mm wide ● Excellent materials: corrosion resistance, high hardness
    ● Ultra Long Size: 50m Ultra Long Order Length



    RU2 Reader Performance

    Resolution ratio
    Digital 1um,0.5um,0.2um,
    0.1um,20nm,50nm
    Simulation 20um
    Minimum clock frequency of counter
    1M,2.5M,5M,10M
    Maximum speed
    12m/s Relating to resolution and minimum clock frequency of counter
    Electronic subdivision error
    40nm
    Automatic gain control
    Yes
    Automatic correction
    Yes




    Specifications

    Specifications
    Coefficient of thermal expansion
    10.5um/m/℃
    Grating Ruler Type
    Incremental type
    Weight
    12.6 g/m
    Pitch
    20um
    Material
    High Strength Stainless Steel
    Precision
    ±5um/m
    Environmental requirements
    Linearity
    ±2.5um/m Two-point correction is possible
    working temperature
    0℃~70℃
    Size
    H 0.2mm * W 8mm
    Working humidity
    RH < 95% (Non condensation)
    Size of gum
    H 0.1mm * W 6mm
    Storage temperature
    -20℃~70℃
    Supply length
    100mm~50m
    Storage humidity
    RH < 95% (Non condensation)







             Grating ruler size map                      End caps are divided around, mirror each other, order in pairs





    The width of tape tool, installation hole position and relative position of steel strip are compatible with RU2 series reading heads.

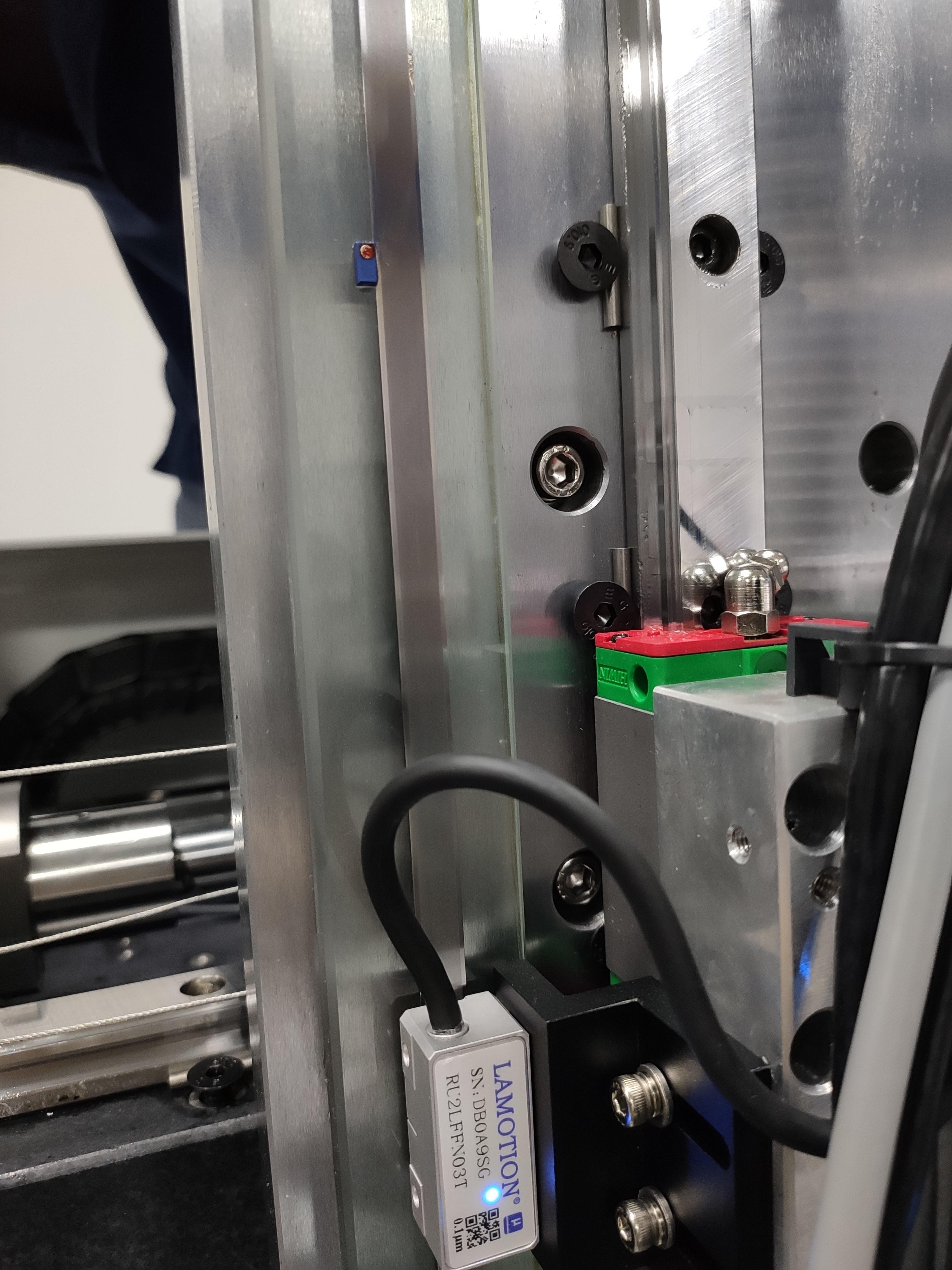

    Application

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device

    Open Type Optical Linear Scale Incremental 20um Steel Gate Ruler For Measurement Device
