Double-Column Optical Linear Scale Height Tester / with Gauge Display and 0.01mm Resolution

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UGHT-D

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	7 work days
Payment Terms:	T/T
Supply Ability:	30 per month

Get Best Price Contact Now

Detail Information

Material:	Stainless Steel	Hand Wheel Movement:	Fast Moving And Fine Adjusting
Resolution:	0.01mm, 0.001”	Structure:	Double Column Design
Measuring Clamp Material:	Rigid Alloy	Hardening Process:	The Integer Base
Highlight:	optical linear encoder , linear glass scale

Product Description

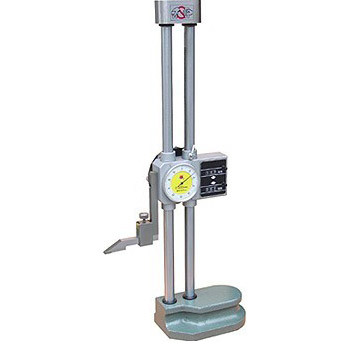

Double-Column Optical Linear Scale Height Tester

Precision height measurement instrument with gauge display and 0.01mm resolution, featuring advanced double-column design for superior accuracy.

Key Features

Constructed from durable stainless steel material
Large hand wheel enables fast movement and fine adjustment
Accurate digital counting with direction switching capability
High resolution: 0.01mm / 0.001"
Advanced double-column design ensures measuring precision
Rigid alloy measuring clamp with ergonomic curved lines
Hardened integer base for enhanced durability

Technical Specifications

Model	Measuring Range	Gauge Resolution	Digital Counter Resolution	Accuracy
3321-301	0-300mm	0.01mm	1.0mm	+0.03mm
3321-451	0-450mm	0.01mm	1.0mm	+0.04mm
3321-501	0-500mm	0.01mm	1.0mm	+0.05mm
3321-601	0-600mm	0.01mm	1.0mm	+0.05mm

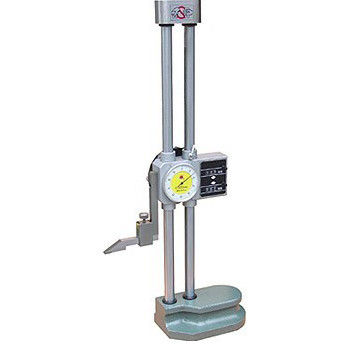

Product Images

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related precision measurement equipment.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable measuring instruments based on your product variety and measurement requirements.

Q4: Do you accept customized services?

A4: Yes, we provide both standard machines and custom solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced durability in critical components to ensure reliable performance.
