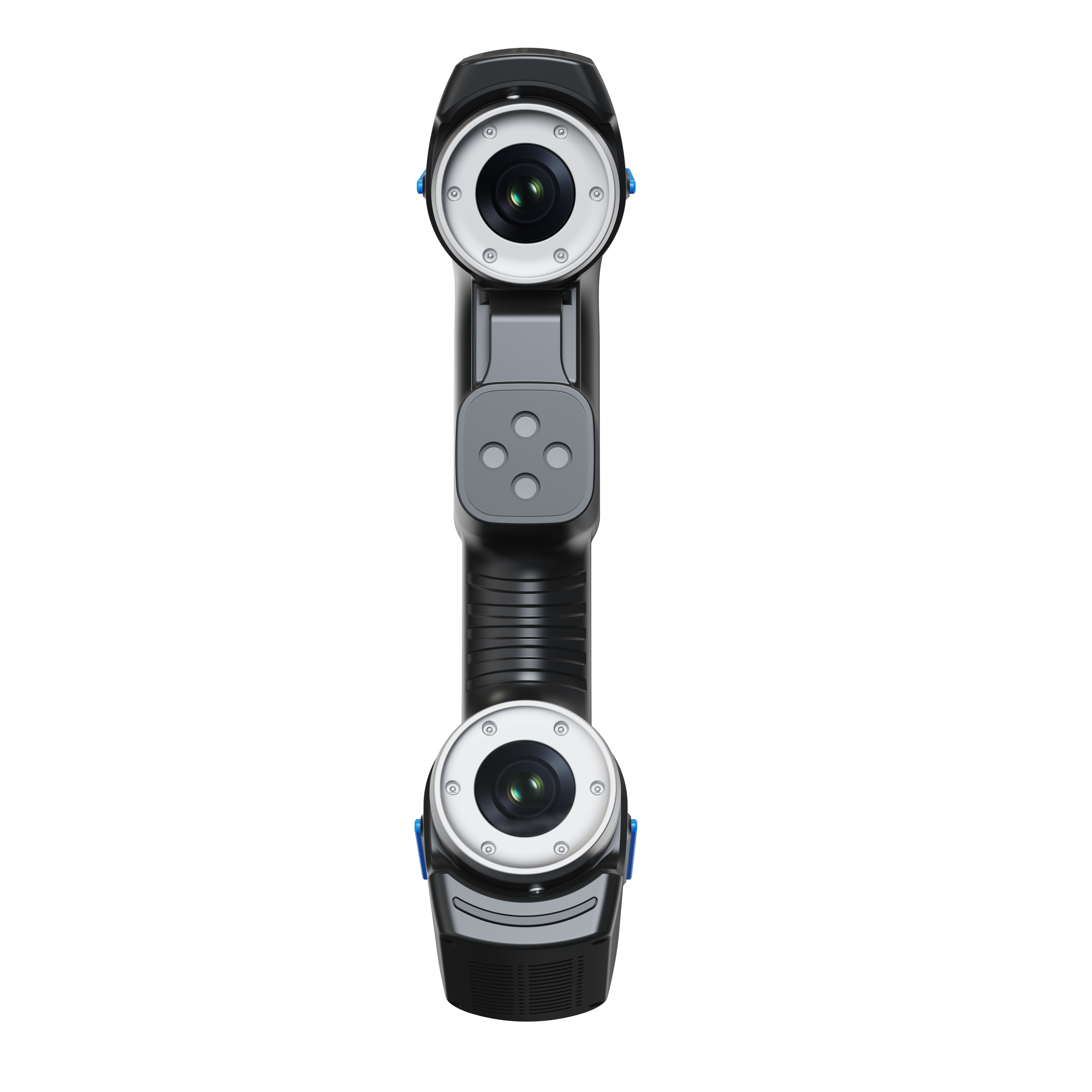

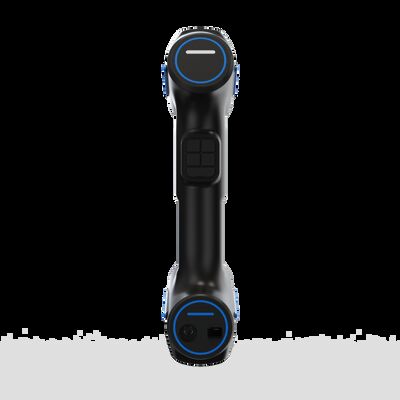

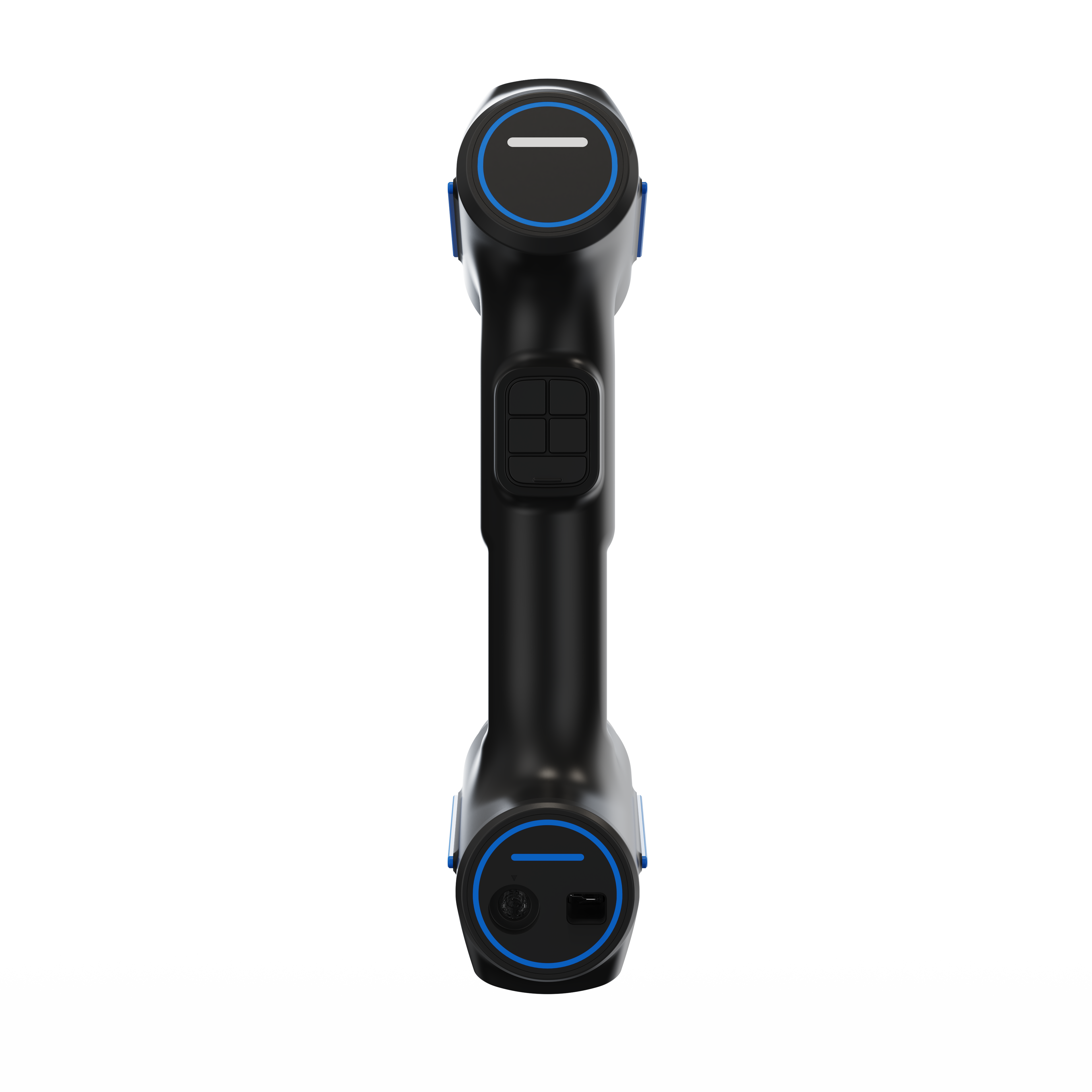

Name: MetroScan: Metrology-Grade Handheld 3D Scanner with 0.020mm Precision & 5.4M Measurements/s
Brand: Unimetro Precision Machinery Co., Ltd
SKU: MetroScan
Price: 20,500.00 USD
Availability: InStock

Detail Information

Highest Precision:	0.020mm	Maximum Scanning Speed:	5,400,000 Measurements Per Second
Maximum Scanning Field:	650mm×550mm	Maximum Resolution:	0.01mm
Volume Accuracy:	0.015mm+0.035mm/m 0.015mm+0.025mm/m(Selection Of Photogrammetric Scale Bars)	Laser Class:	Class Il(Eye Safe)

Product Description

MetroScan: Metrology-Grade Handheld 3D Scanner with 0.020mm Precision & 5.4M Measurements/s

Product Introduction
Comprehensively upgraded: precision-engineered exterior, robust structure, and enhanced performance.
While retaining its signature lightweight design, high-speed operation, and metrology-grade accuracy, the new generation elevates fine-detail scanning capabilities and global control precision. Its modular architecture significantly expands versatility, delivering tailored solutions for flexible cross-scenarioapplications.

Specification

Item		MetroScan
Scanning Mode	High-Speed Scanning	26 crossed blue laser lines
	Precision Scanning	7 blue laser lines
	Deep Hole Scanning	1 single blue laser line
Highest Precision		0.020mm
Maximum Scanning Speed		5,400,000 measurements per second
Maximum Scanning Field		650mm×550mm
Laser Class		Class Il(Eye Safe)
Maximum Resolution		0.01mm
Volume Accuracy		0.015mm+0.035mm/m 0.015mm+0.025mm/m(Selection of photogrammetric scale bars)
Reference Distance		200mm
Depth of Field		550mm
Output Format		ASC,IGS,TXT,UMK,STL,PLY,OBJ,etc.
Operating Temperature		-10℃ to 40℃
Interface Type		USB 3.0
Minimum computer requirements		OS:Windows 10 or later(64-bit required) GPU:NVIDIA GTX/RTX series (e.g.,RTX4060 or higher) VRAM:8 GB or more CPU:Intel Core i7-13700H or better RAM:32 GB or higher

Feature
AI Metrology-Grade Precision: Highest 0.020 mm precision,volume accuracy 0.015 mm+0.035 mm/m.
Ultra-High Speed Scanning: 5,400,000 measurements/s with 34 blue laser beams.
Minimal Environmental Requirements&Effortless Operation: -10℃ to 40°℃,no special lighting;quick calibration &USB plug-and-play.
Broad Application Fields: Automotive,Rail,Aerospace,Energy,Mold,Machinery.
Intelligent Inspection Workflow: One-click smart reports with color deviation maps.

Company Information

Our Clients & Global Distribution

Frequently Asked Questions

Are you a factory or trading company?

We are a factory and provide responses within 24 hours.

What does your company mainly produce?

We primarily manufacture vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, and related equipment.

How to Choose the Appropriate Specification?

Our professional team will recommend suitable specifications based on your product variety and measurement requirements.

Do you accept customized service?

Absolutely! We provide both standard machines and customized solutions tailored to specific customer needs.

What is your warranty period?

Our products come with a 1-year warranty. We have enhanced durability on breakable components, ensuring reliable product quality.
