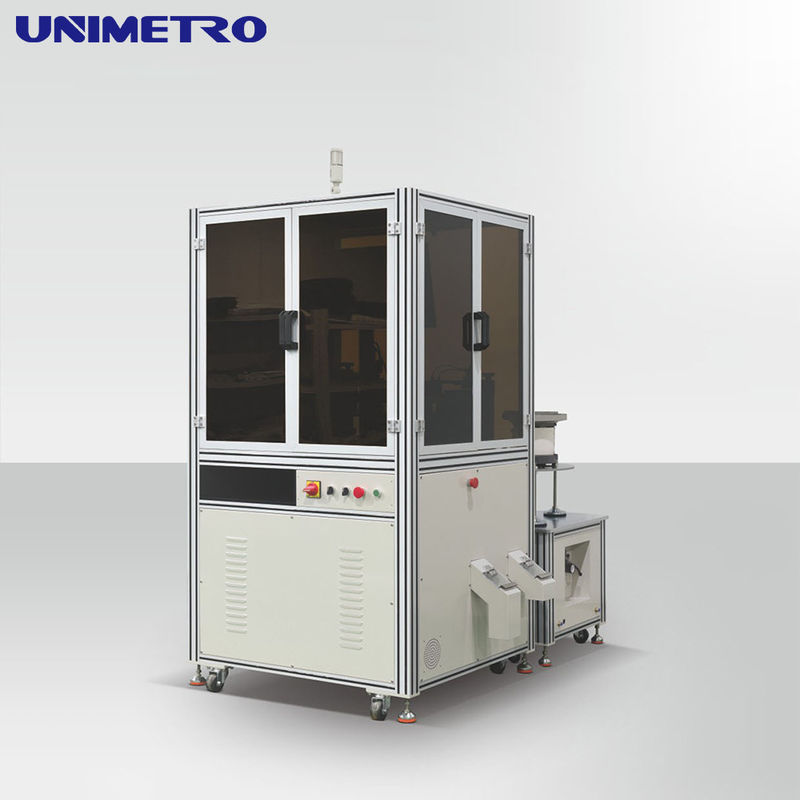

Acoustic Component Vision Inspection System
High Efficiency Visual Inspection Equipment for Acoustic Components Height/Diameter Size Measuring
Visual inspection equipment is a high-speed precision automatic measuring and screening system that integrates vision measurement software, CCD industrial camera, mechanical components, industrial computer, electrical systems, and solenoid valve blowing functions.
Through automatic feeding devices (vibrating plate, manipulator, belt, etc.), workpieces are transported to the detection station for high-speed photography. Visual inspection software then comprehensively evaluates and calculates results, sorting workpieces into good and defective products according to preset criteria. Electromagnetic valves direct workpieces into different collection boxes, achieving complete quality inspection and screening functionality.
Detection Capabilities
- Workpiece size measurement
- Workpiece appearance defect detection
- Color recognition and defect detection
- Character recognition (OCR) and defect detection
- Bar code recognition and defect detection
- Coding recognition and defect detection
Inspection Advantages
- Non-contact operation, no damage to workpieces
- High detection accuracy up to 0.001mm
- Fast detection speed: 5000 pieces per minute
- Improves overall enterprise efficiency
- Saves significant manpower and material costs
- Fully automatic detection, stable and reliable
- Enhances corporate competitiveness
Inspection System Features
Independently developed visual inspection software with over ten years of continuous improvement
Over 2000 software functions including defects, color, size, copper leakage, and OCR detection
Full automatic non-contact detection preserving workpiece integrity
Programmable software filtering up to 32 categories simultaneously
High-speed detection up to 5000 pieces per minute
Ultra-high accuracy up to 1μm depending on workpiece
Intuitive operation interface with simple training requirements
ERP system integration for enhanced data processing efficiency
Acoustic Components Visual Inspection Equipment
UNIMETRO acoustic component visual inspection equipment provides effective solutions for various appearance defects and dimensional quality problems in the manufacturing process of speaker pole pieces, porcelain bowls, injection molding brackets, and related products.
Automatic visual inspection of various mobile speaker parts appearance defects and dimensions with intelligent output of inspection reports. Helps speaker parts manufacturers optimize production processes, reduce costs, and ensure perfect product quality.
Product Specifications
Compatible with various speaker parts, pole pieces, porcelain bowls, porcelain bowl pole piece assemblies, speaker brackets, etc.
Dimensions: 900×1000×1800mm (L×W×H)
Weight: 300kg
Key Features
Automatically detects appearance defects and dimensions of commutators
All testing items completed in single operation
High versatility for multiple commutator products
Industry-leading defect detection capabilities
Detection speed: 800 pieces per minute
Detection accuracy: 0.001mm
Automatic classification and sorting of products
Automatic feeding with storage hopper
Equipped with imported optical components from Germany, Japan, and Italy
Intelligent test reporting for process improvement
Easy operation with minimal training required
24/7 uninterrupted operation capability
Technical Parameters
| Size Detection |
Exterior Detection |
| Height, length, width, aperture, inner length and width, outer length and width, step size, etc. |
Corner deformation, overall deformation, front and back defects, poor assembly, missing magnets, missing poles, magnets eccentricity, defects, fractures, excessive glue, front burrs, mixed materials, etc. |
