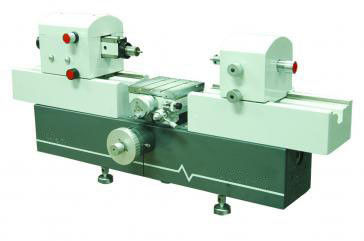

Universal Length Measuring Machine with 0.1 µm Resolution for Profile Projector Inspection

• The machine base is using high performance cast iron, with aging process, high stability.
• The measuring spindle is using optimize square design, ensures the movement stability during the measuring process.
• Multiple powerful accessories for option, satisfying different measuring requirement.
• The grating light source is using infrared generator, which is with advantage of low voltage, low current, small size, long life cycle.
• The UNIDL-36H length measuring machine is using high accuracy measuring system, according with the Abbe principle, offering high measuring precision.
• The series is using high performance optical grating system and subdivision system, with high accuracy and stability.
• Including powerful software, compensating the reading error and errors caused by temperature difference, and automatic identifying the turning points function included.

Measuring range (mm):

• External dimension: absolute measuring 0 - 100, increment measuring 0-750
• Internal dimension:
  • using the small measuring hook, (max. Depth 12, max thickness 50): 10-480
  • Using large hook(max depth 50, max thickness 85): 30-450
  • Using the electric device measuring: using the electric measuring hook is 1-60, when using the universal hook is 14-112

Resolution: 0.1um

Accuracy: (temperature 20°C±0.2°C)

Internal threads center diameter measuring:

• Using small hook (small diameter is 13-30)
• Using large hook, small diameter is 31-2 x (70 - the wall thickness), pitch: 0.5 - 6

External center diameter measuring(mm): max. 200, pitch 1 - 6

Measuring force(N):0, 1.5, 2.5

Value display error:

Universal working stage: installing dimension(mm), about 160 x 160

Height adjusting range(0-100)mm, transverse travelling: 25 mm

Around Y axis inclined: ±3 degrees, work stage rotation: ±4 degrees

Work stage loading: 10kg

Measuring cover internal diameter matching dimension: φ6H7

External diameter of the measuring cover rod and the measuring cover internal matching: φ6g6

Working environment: temperature 20℃±0.5℃, humidity ≤60%RH

Weight: 170kg

Dimension(mm): 1060 X 390 X 450
