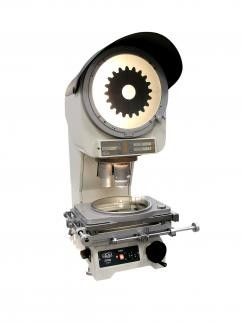

Optical Profile Projector with Robust Construction, 0.001mm Resolution, and a 3-Lens Turret

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UNPJ14A/14B

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	15 work days
Payment Terms:	T/T
Supply Ability:	10 per month

Get Best Price Contact Now

Detail Information

Lens Turret:	Included	Lens Option:	10X, 20X, 50X, 100X
RS232 Connector:	Included	Screen Diameter:	300mm
Magnification Error:	0.08%	Working Environment:	20℃±5℃, Humidity 40%－70％RH
Highlight:	horizontal profile projector , profile projector machine

Product Description

0.001 mm Resolution Optical Profile Projector Lens Turret Installing 3 Lens

Features

Smart design and stable structure, easy operation.
The light source is using high brightness and long life cycle halogen lamp, offers excellent illumination and clear image.
The contour light is switchable for 2 levels, high and low brightness, suitable for different measurement requirement.
3 models of stage size are for option, satisfying the measuring requirement of parts of different size.
With the projector box moving structure, enlarge the Z axis traveling range.
The focus lens is adjustable based on different magnification.
Lens turret included, embedded with 3 lens, users can change the magnification easily.
RS232 connector included, capable to connect to the 2D measuring software.

Specification

Screen

Screen diameter: 300mm

Rotating range: 0 - 360 degrees

Rotating angle resolution: 1’

Rotating measuring accuracy: 6’

Working stage

Item	Small	Medium	Large
Stage size(mm)	350 x 240	400 x 280	450 x 286
Measuring range(mm)	150 x 100	200 x 150	250 x 150
Focusing range(mm)	0 - 100	0 - 100	0 - 100
Resolution(mm)	0.001	0.001	0.001
Accuracy	3+L/75um (L is the measuring length, unit:mm)
Max. loading(kg)	10	15	20

Lens
Magnification	10X	00X	50X	100X
View range	φ30mm	φ15mm	φ6mm	φ3mm
Working distance	74mm	69mm	63mm	41mm

Magnification error: 0.08%

Illumination

Contour light: 24V150W halogen lamp

Surface light: 24V150W halogen lamp

Working environment

20℃±5℃, humidity 40%－70％RH

Dimension (mm) : 410 x 650 x 1070

Weight: 90kg

Application

Typical application: Automobile, shafts, motor bearing, valves, braking pad, tubes, diverter, gas injector; electronics, connectors, PCB, mobile phone covers, press buttons, for the dimension and holes measuring; rubber industry, rubber ring, rubber rod; mechanical,for threads, screws, motor blade, gears, tools; clocks and watches industry, bearings, gears, indicators; aviation, impeller, electronic components, bearings.
