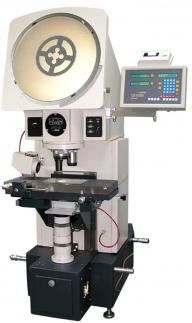

Benchtop Optical Comparator and Profile Projector with Motorized Z-Axis and Parallel Contour Illumination

Motorized Z Axis Optical Profile Projector Parallel Contour Light Heavy Loading

• Large work stage, heavy loading, large measuring range.
• Working stage movement, motorized control, easy operation.
• The optical system is telecentric, using parallel illumination, low measuring error.
• High accuracy lens turret, easy change of magnification, precise locating.
• Internal adjusting of the contour light, smart structure.
• Including standard fixture accessories as V type supporter, rods supporters.
• The UNPJ3-D series is including powerful functional digital readout system and mini printer.
• The UNPJ3-C series is including PC and measuring software.

Projector screen

Screen diameter: 500mm

Rotating range: 0 - 360 degrees

Rotating angle resolution: 1’

Rotating measuring accuracy: 6’

Working stage

Magnification error: 0.08%

Rods holder

Max. Diameter: 115mm

Max length: 300mm

Illumination

Contour light and Surface light: 12V100W halogen lamp

Working environment

20℃±5℃, humidity 40%－70％RH

Working dimension (mm) : 1340 x 800 x 1960

Weight: 1000kg

• Typical application: Automobile, shafts, motor bearing, valves, braking pad, tubes, diverter, gas injector; electronics, connectors, PCB, mobile phone covers, press buttons, for the dimension and holes measuring; rubber industry, rubber ring, rubber rod; mechanical,for threads, screws, motor blade, gears, tools; clocks and watches industry, bearings, gears, indicators; aviation, impeller, electronic components, bearings.
