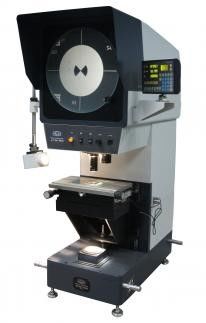

600 MM Screen Optical Profile Projector 100 X Lens Vertical Screen
Description
The projector screen is vertical, easy for users to observe.
The contour light is switchable by 2 levels, suitable for different parts measuring. Outstanding optical system, clear image, accurate magnification.
Parameters
Projector screen
Screen diameter: 600mm
Rotating range: 0 - 360 degrees
Rotating angle resolution: 1’
Rotating measuring accuracy: 6’
| Item |
Small |
Large |
| Stage size(mm) |
500 x 260 |
600 x 360 |
| Measuring range(mm) |
200 x 100 |
300 x 200 |
| Focusing range(mm) |
0 - 80 |
0 - 80 |
| Resolution(mm) |
0.001 |
0.001 |
| Accuracy |
4+40/Lum (L is the measuring length, unit:mm) |
| Max. loading(kg) |
10 |
15 |
| Magnification |
5X |
10X |
20X |
50X |
100X |
| View range |
φ120mm |
φ60mm |
φ30mm |
φ12mm |
φ6mm |
| Working distance |
102mm |
135mm |
87mm |
76mm |
49mm |
Magnification error: 0.08%
Illumination
Contour light: 24V150W halogen lamp
Surface light: 24V150W halogen lamp
Working environment
20℃±5℃, humidity 40%－70％RH
Dimension (mm) : 1420 x 1300 x 1940
Weight: 550kg
Application
Typical application:
Automobile, shafts, motor bearing, valves, braking pad, tubes, diverter, gas injector;
Electronics, connectors, PCB, mobile phone covers, press buttons, for the dimension and holes measuring;
Rubber industry, rubber ring, rubber rod;
Mechanical,for threads, screws, motor blade, gears, tools;
Clocks and watches industry, bearings, gears, indicators;
Aviation, impeller, electronic components, bearings.
