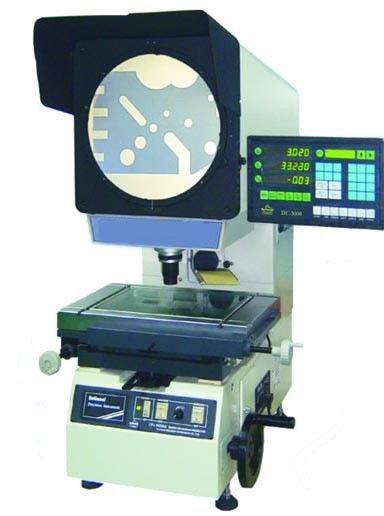

Optical Profile Projector with 300 mm Screen, Fixed Stage, Heavy Load Capacity, and 250 mm Travel

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UNIPJ-300AZ

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Wood case
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	20 per month

Get Best Price Contact Now

Detail Information

Measuring Accuracy:	≤ (3+L/75)	Screen Size(mm):	Ф 312mm, Display Range>Ф300(with The Cross Line)
Screen Rotary Range:	0°～360°	Rotary Angle Resolution:	1' Or 0.01°
Illumination:	24V / 150w - Halogen Lamp
Highlight:	digital profile projector , profile projector machine

Product Description

300 mm Screen Optical Profile Projector Fix Stage Heavy loading 250 mm travel

Features

High verticality : Mature installation technology ensures the verticality of XY, XY, and the YZ axis.
High accuracy: measuring accuracy 3+L/75um, leading in the industry.
Heavy loading: Advanced mechanical design, fix stage, offers max loading 50 KGs, and the accuracy remains stable under max loading.
Outstanding optical structure: the UNIPJ series optical profile projector is with outstanding optical design, offer users clear image, and eliminate the effect from the environment light source.

Precise angle measuring: the projecting screen A axis uses circle grating position transducer instead of the traditional encoder, eliminating the mechanical error and backlash, ensure high accuracy of the angle measuring.

Introduction

The UNIPJ-300AZ series profile projector is well known by its outstanding optical system and accurate magnification, the error of the contour edge measuring is less than 0.08%when using the contour light. Also foot switch is included, offers more convenient operation for the users.

The UNIPJ-300AZ series profile projector is using fix stage structure. Users move the optical box for focusing. Which provides much heavier loading capability for the working stage. Also the stage travel size is possible to be much larger than the traditional models.

Parameters

Model	Negative image		UNIPJ-3015A	UNIPJ-3020A	UNIPJ-3025A
	positive image		UNIPJ-3015AZ	UNIPJ-3025AZ	UNIPJ-3025AZ
Working table	Stage size(mm)		354*228	404*228	450*280
	Glass size(mm)		210*160	260*160	306*196
	X-axis,travel(mm)		150	200	250
	Y-axis,travel(mm)		100	100	250
	Z-axis,travel(mm)		100	100	100
Weight	(kg)		160	160	180
Dimension(LWH)	(mm)		7807801100	7807801100	8107801120
Measuring accuracy(um)			≤ (3+L/75) (L is the length of work pieces to be measured,unit:mm)
Resolution(X-axis,Y-axis)			0.5μm
Projector screen	Screen size(mm)	∅312 used range>∅300(with the cross line)
	Screen rotary range	0°～360°
	Rotary angle resolution	1‵ or 0.01°
Lens	Magnification	10X(option)	20X(option)	50X(option)	100X(option)
	Object view(mm)	∅60	∅30	∅15	∅6
	Working distance(mm)	77.7	44.3	38.4	25.4
	Max.Workpiece height	90mm	90mm	90mm	90mm
Data processing system		DC-3000 multi-function data processing system appearing in English,can be used to gather the data and measure the point,line,circle,angle and distance.
Illumination		The Illumination of transmission and reflection:24V/150w-halogen lamp.
Power		110V/220V(AC) 50/60Hz total power=400W
Cooling		By the fans
Accessories		Min-printer(option),Edge detector(option),M2D software(option) and so on,please refer to accessories for Profile Projector for more details
