Z Axis Motorized Optical Profile Projector Travel Speed 0.1 mm Resolution 0.5 mm

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNIPJ-3000DZ
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wood case
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Z Axis Movement: Motorized X,Y Axis Movement: Manual
Resolution: 0.5mm Magnification: 10, 20, 50, 100 X For Option
Z-axis Travel Speed: 5, 1, 0.01 Power: 110V/220V(AC) 50/60Hz Total Power=400W
High Light:

digital profile projector

,

horizontal profile projector


Product Description



Z Axis Motorized Optical Profile Projector Travel Speed 0.1 mm Resolution 0.5 mm



Introduction



The UNIPJ-3000DZ optical profile projector is using step motor for the Z axis movement, offers easier and faster focusing process. There are 10X, 20X, 50X and 100X magnification lens for option, to satisfy different application.



UNIPJ-3000DZ series optical profile projector is embedded with excellent quality of optical system. The series is processed of clear image and accurate magnification. The error of contour measuring is under 0.08% with the contour light. The indication error of the coordinate is under (3+l/75) um, (L is the length of the work pieced to be measured, unit: mm).

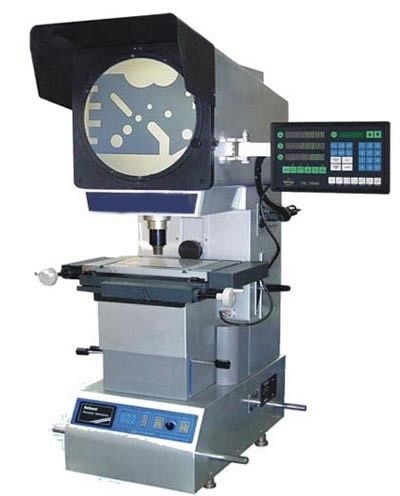

Z Axis Motorized Optical Profile Projector Travel Speed 0.1 mm Resolution 0.5 mm 0



Features



Motorized Z axis movement.

Stable and high rigidity work stage, which is the foundation of accurate measurement.

Embedded with 0.5um resolution linear scales, offers more precise measurement.

Using circle grating transducer for angle measuring, instead of encoder, ensures higher accuracy.

Outstanding optical system, clear image.

Brightness adjustable illumination, helps users to gain clear image and edge.

Surface light included. Users can also observe the surface of the object with the series.



Z Axis Motorized Optical Profile Projector Travel Speed 0.1 mm Resolution 0.5 mm 1



Parameters

Specification

Model

UNIPJ-3015DZ

UNIPJ-3020DZ

Working table The metal table's size(mm)

354*228

404*228

The glass table's(mm)

210*160

260*160

X-axis,travel(mm)

150

200

Y-axis,travel(mm)

100

100

Z-axis,travel(mm)

100

100

Weight

(kg)

120

125

Dimension(L*W*H)

(mm)

770*550*1100

770*550*1100

Measuring accuracy(um)

X-axis ,Y axis:(3+L/50) Z axis ;4+L/10 (L is the length of the work pieces to be measured,unit:mm)

Z-axis travel 'speed

5,1,0.01

Resolution(X-axis,Y-axis)

0.5μm

Projector screen

Screen size(mm)

Ф312 used range>Ф300(with the cross line)

Screen rotary range

0°~360°

Rotary angle resolution

1‵ or 0.01°

Lens

Magnification

5X(option)

10X(option)

20X(option)

50X(option)

100X(option)

Object view(mm)

Ф60

Ф30

Ф15

Ф6

Ф3

Working distance(mm)

53

77.7

44.3

38.4

25.3

Data processing system

DC-3000 multi-function data processing system appearing in English,can be used to gather the data and measure the point,line,circle,angle and distance.

Illumination

The Illumination of transmission and reflection:24V/150w-halogen lamp.

Power

110V/220V(AC) 50/60Hz total power=400W

Cooling

By the fans

Accessories

Min-printer(option),Edge detector(option),M2D software(option) and so on,please refer to accessories for Profile Projector for more details

Recommended supporting table

Loading weight>250kg Dimension:800(L)*550(H)*650(W)mm
