0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: UNIPJ-3000(Z)
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wood case
Delivery Time: 8 work days
Payment Terms: T/T
Supply Ability: 20 per month
Detail Information
Resolution(X-axis,Y-axis): 0.5um Digital Readout System: DC-3000
Power: 110V/220V(AC) 50/60Hz Total Power=400W Rotary Angle Resolution: 1' Or 0.01°
Screen Rotary Range: 0°~360°
High Light:

horizontal profile projector

,

profile projector machine


Product Description

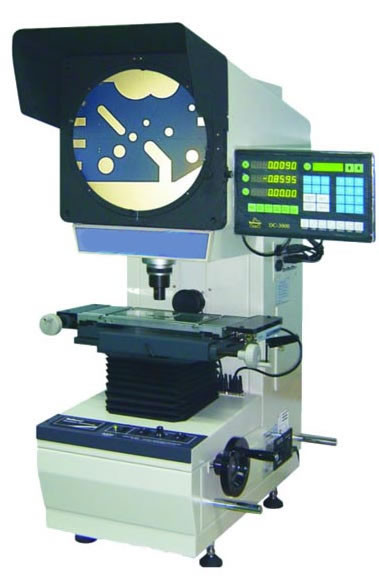

0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm



Introduction



UNIPJ-3000(Z) series optical profile projector is a photoelectric measuring system of high precision and efficiency. It is widely used in mechanism, meters, electronics, cell phones, automobile industry, college, research institute and QC departments. The UNIPJ-3000(Z) series optical profile projector is suitable for all kinds of small and precise objects measuring, contour and surface measuring available, such as electronic components, pressing work-pieces, thread, gear, milling, grinding or lathing workpieces.



UNIPJ-3000(Z) series optical profile projector is embedded with excellent quality of optical system. The series is processed of clear image and accurate magnification. The error of contour measuring is under 0.08% with the contour light. The indication error of the coordinate is under (3+l/75) um, (L is the length of the work pieced to be measured, unit: mm).



The UNIPJ-3000(Z) series optical profile projector provides the DC-3000 digital readout system and foot-switch, which ensures powerful function and easy operation.



Features



Stable and high rigidity work stage, which is the foundation of accurate measurement.

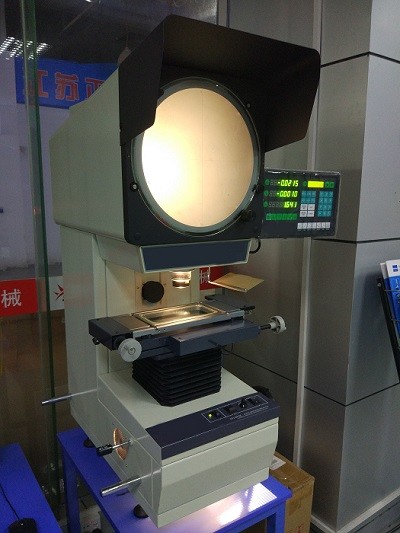

0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V 0



Embedded with 0.5um resolution linear scales, offers more precise measurement.



Using circle grating transducer for angle measuring, instead of encoder, ensures higher accuracy.



Outstanding optical system, clear image.



0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V 1  0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V 2



Surface light included. Users can also observe the surface of the object with the series.



0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V 3  0.5 um Resolution Optical Profile Projector Surface Measuring 200 mm 110V / 220V 4



Parameters

Specification

Model

Negative image

UNIPJ-3007

UNIPJ-3010

UNIPJ-3015

Positive image UNIPJ-3007Z

UNIPJ-3010Z

UNIPJ-3015Z

Working table

Stage size(mm)

260*152

306*152

340*152

Glass size(mm)

125*100

175*100

196*96

X-axis,travel(mm)

75

100

150

Y-axis,travel(mm)

50

50

50

Z-axis,travel(mm)

90(when focus)

90(when focus)

90(when focus)

Weight

(kg)

120

125

130

Dimension(L*W*H)

(mm)

770*550*1100

770*550*1100

770*550*1100

Resolution(X-axis,Y-axis)

0.5um

Projector screen

Screen size(mm)

Ф312 used range>Ф300(with the cross line)

Screen rotary range

0°~360°

Rotary angle resolution

1‵ or 0.01°

Lens

Magnification

10X(option)

20X(option)

50X(option)

100X(option)

Object view(mm)

Ф30

Ф15

Ф6

Ф3

Working distance(mm)

77.7

44.3

38.4

25.4

Max.Workpiece height

80mm

80mm

80mm

80mm

Digital readout system

DC-3000 multi-function data processing system appearing in English,can be used to gather the data and measure the point,line,circle,angle and distance.

Illumination

The Illumination of transmission and reflection:24V/150w-halogen lamp.

Power

110V/220V(AC) 50/60Hz total power=400W

Cooling

By the fans

Accessories

Min-printer(option),Edge detector(option),M2D software(option) and so on,please refer to accessories for Profile Projector for more details

Recommended supporting table

Loading weight>250kg Dimension:800(L)*550(H)*650(W)mm
