Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick

Basic Information

Place of Origin:	China
Brand Name:	UWC
Model Number:	HC-1

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper case
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	50 per month

Get Best Price Contact Now

Detail Information

Working Voltage:	12VDC	Working Current:	100mA
Port Rate:	115200bps	Cable Length:	3m
Dimension:	22010499mm	Press Button:	15
Indicators:	16
Highlight:	coordinate measuring machines , optical coordinate measuring machine

Product Description

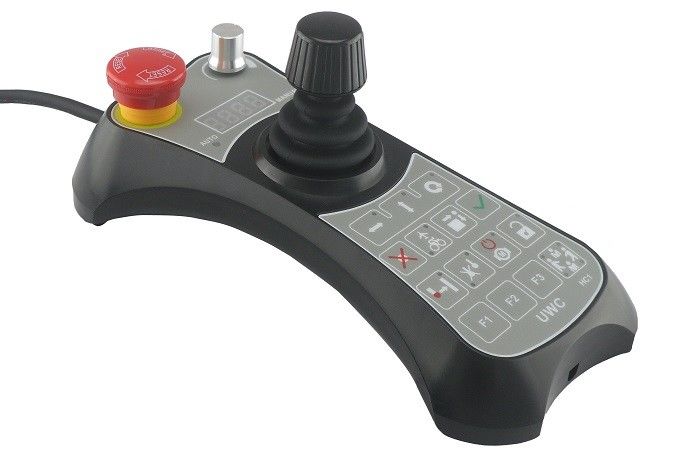

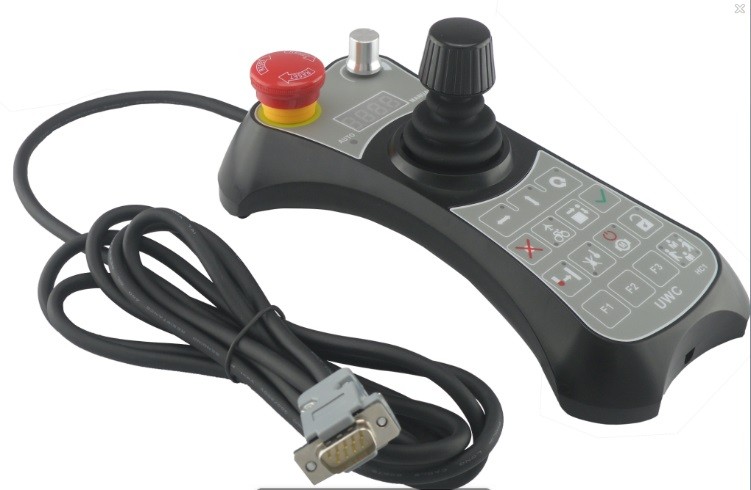

Automatic 3D Coordinate Measuring Machine Axis Movement Controlling Joystick

Introduction

1. Designed based on the vision measurement machine and coordinates measurement machine application.
2. Using the non-contact Hall joystick, long life cycle, small range of no-signal area.
3. Using rubber buffering press buttons, reliable and stable.
4. Including 4 magnet and 4 rubber pad at the bottom.
5. All the buttons with switching function is with LED indicator.
6. The emergency stop is with independent wiring, easy for the system wiring.
7. Including 4 “8" type Nixie tube display, the display content is up to the host computer.
8. Using RS232 communication interface, driver is not required and there is no limitation of the operation system.
9. DLL (Dynamic Link Library) is offered, able to be used on VB, VC, C#, labview or BCB etc.

Specification

Item	Value	Unit
Working voltage	12	DCV
Working current	100	mA
Port rate	115200	bps
Cable length	3	M
Dimension	22010499	mm
Press button	15	pc
Indicators	16	pc
Nixie tube	4	pc
Joystick life cycle	>3 million	Times
Press button life cycle	>2 million	Times
