Vision Measurement Machine With 24" LCD Monitor

Basic Information
Place of Origin: China
Brand Name: UNIMETRO
Model Number: Tool VMM
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Wood case
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Dark Color Or Black Objects: Gray And Black X Axis Travel: 80mm
Y Axis Travel: 60mm Z Axis Measuring Range: 60mm
Camera: 2M Pixel HD Camera/5M Pixel HD Camera(Optionsl) Measuring Accuracy: X~Y,(2.5+L/100)µm,L Is The Measured Length
High Light:

vision measuring machine

,

vision measurement system

,

LCD Monitor Vision Measurement Machine


Product Description



Milling Tool Inspection System Tool Video Measuring system Vision Measurement Machine





Product Application

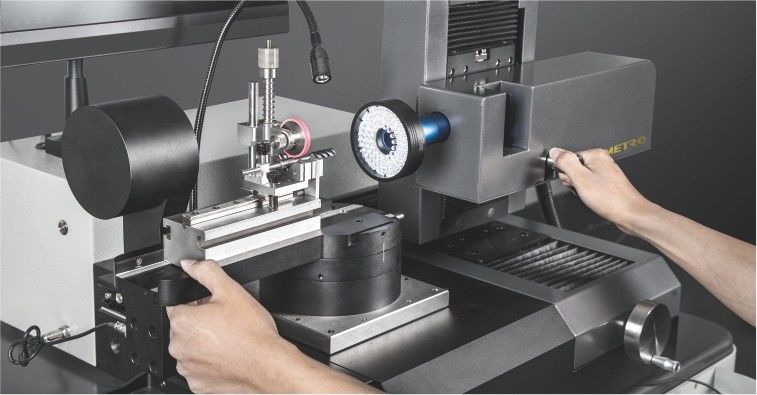

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under Flexible illuminating system. Thanks to the compact design and great stability, The RANGER600 can be employed in the metrology room, receiving inspection, or directly in production. The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, which makes it the best instrument for all types of metal cutting tools, starting from fast checking of single criteria, such as the outer contour or angles, to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.





Advanced Design



--Ergonomic design and solid construction.
--HD image capturing and display combination, also microscope magnification level is optional.
--Stable and accurate V block for easy tools holding and alignment.
--Mechanical fixed measuring angle of 0 degree and 90 degrees are available on the rotary stage.
--High accuracy encoder is embedded in the rotary table, offers precise angle location for users.

--Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
--SMARTOOL measuring software offers specific measuring function for cutting tools.
--Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.
--Measuring result fast output to EXCEL file report or CAD file.
--ALL-IN-ONE PC system makes the machine more stable.



Vision Measurement Machine With 24" LCD Monitor 0

Vision Measurement Machine With 24" LCD Monitor 1


Specification



SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR

X axis travel

80mm

Y axis Travel

60mm

Z axis measuring range

60mm

Max tool Diameter

50mm

Max tool length

300mm

Working distance

90mm

Lens

0.7-4.5X dented zoom lens

Camera

2M pixel HD camera/5M pixel HD camera(Optionsl)

Linear scale resolution

0.0001mm

Magnification

12.6X~79.2X/25.2X~158.4X(Optional)

Field of view

27*20mm~4.3*3.3mm/13.5*10mm~2.3*1.6mm(Optional)

Measuring accuracy

X~Y,(2.5+L/100)µm,L is the measured length

PC

ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor

Illumination

8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable.

Input format

DXF files

Output format

EXCEL,DXF







Multiple Angles Measuring



For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc.
If other angle location should be required, users can also use the accurate encoder which is embedded in the rotary table to obtain. The angle reading is display in the software.



Vision Measurement Machine With 24" LCD Monitor 2
                      0 degree                                     45 degrees                                  90 degrees




Standard Accessories



Free angle auxiliary light

A dimmable additional light is available on a flexible arm. Which helps the users to get a local enhance image.
Vision Measurement Machine With 24" LCD Monitor 3

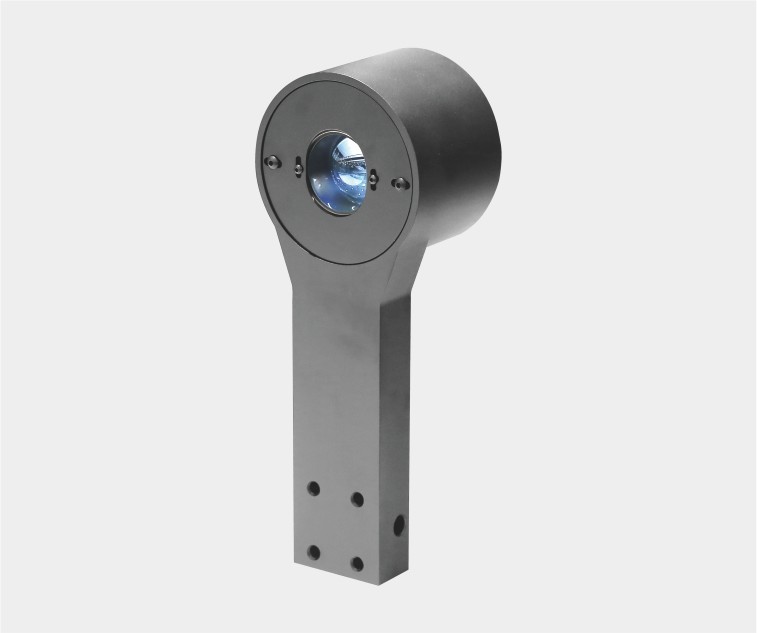

Contour light module

The RANGER600 is including a parallel light path contour LED light module, which is movable along the X axis direction, offers the best image and sharp edge of the object view to the user when measuring the contour of the tool.

Vision Measurement Machine With 24" LCD Monitor 4


Base table

Solid standing work station with practical and open-view storage space for storage of materials and tools.
Vision Measurement Machine With 24" LCD Monitor 5



Tools holder

A multiple section tools holder is embedded at the side of the machine. Users can hold all the tools in order for preparation to avoid confusion.

Vision Measurement Machine With 24" LCD Monitor 6




SMARTOOL Measuring Software


Leading cutting tools measuring solution

The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, it is easy and intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in grinding business.

Sharp,high-contrast views at all magnification.Allmagnification are calibrated.
High zooming level allows analysis of even the smallest surface details or the inspection of micro-tools.
Intuitive and easy-operating software interface-for fast and easy measurement application,all function keys and operation panel are graphical,and the automatic edge detection function helps to eliminate the measuring result difference of different operators.
Free switch between obiect image view and real time contour curve view-users are able to get the observation and measure the max edges of the tools during dyamic rotating process.Advanced calibration and compensation process-the SMARTOOL software offers advanced calibration and compensation function,highly increase the accuracy of the measurement.

Vision Measurement Machine With 24" LCD Monitor 7




Leading Features



Easy operation

High resolution image display and graphical operation interface. All function keys and control panel are displayed on the software window.



Vision Measurement Machine With 24" LCD Monitor 8





Dynamic Real Time curve view

The software offers real time edge detecting curve view, makes the edge analyse and measuring more intuitive and clear. Users are able to switch to the curve view mode at any time during measuring process.



Vision Measurement Machine With 24" LCD Monitor 9





Fast angle measuring with retical

The reticle displayed in the image area of the SMARTOOL software is freely rotatable and able to display angles. Users can achieve fast angle measuring easily by using the retical for edge comparison.



Vision Measurement Machine With 24" LCD Monitor 10





CAD comparison

The SMARTOOL measuring software is supporting CAD comparison function. Users can directly input the CAD drawing of the tool to the software as reference, and compare the real image to the drawing to evaluate the geometries of the cutting tools.

Measuring Capability.



Vision Measurement Machine With 24" LCD Monitor 11




Measuring Capability



Vision Measurement Machine With 24" LCD Monitor 12
                   Helix Angle                            Axial Front Angle                        First Rear Angle



Vision Measurement Machine With 24" LCD Monitor 13
                         Second Rear Angle                                               Tilting Edge Angle





Vision Measurement Machine With 24" LCD Monitor 14
                     Tool End                       Tool End - Center Shaft            Tool End - Front Angle



Vision Measurement Machine With 24" LCD Monitor 15
                             First Rear Angle                                               Second Rear Angle
