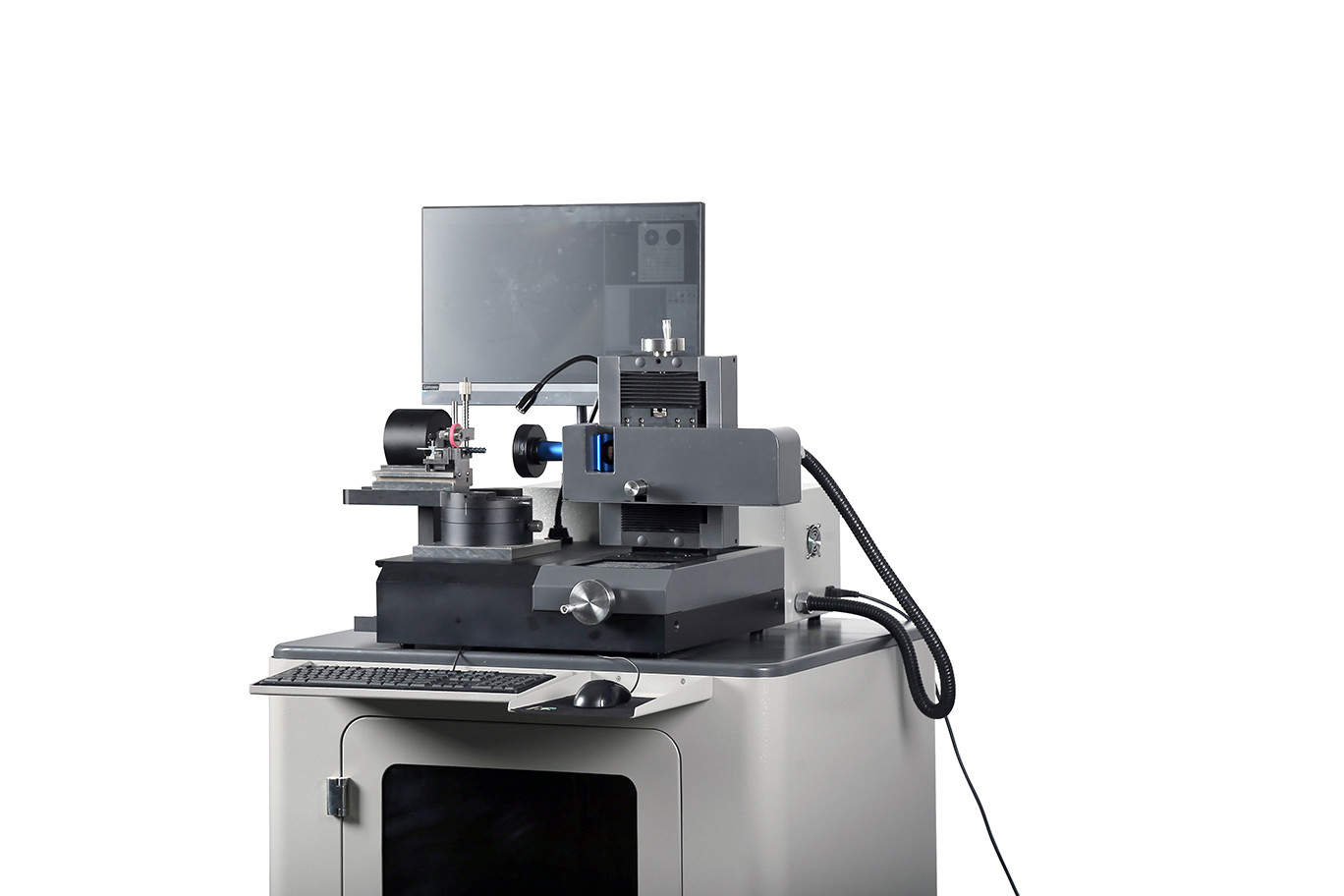

The UNIMETRO RANGER600 Tool VMM Machine is the universal measuring machine for drills, milling cutters and counters and countersinks under Flexible illuminating system. Thanks to the compact design and great stability, The RANGER600 can be employed in the metrology room, receiving inspection, or directly in production. The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, which makes it the best instrument for all types of metal cutting tools, starting from fast checking of single criteria, such as the outer contour or angles, to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.


Advanced Design

--Ergonomic design and solid construction.
--HD image capturing and display combination, also microscope magnification level is optional.
--High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
--Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
--SMARTOOL measuring software offers specific measuring function for cutting tools.

Parameters

Features

For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc.
If other angle location should be required, users can also use the accurate encoder which is embedded in the rotary table to obtain. The angle reading is display in the software.

Software Function

Leading cutting tools measuring solution
The SMARTOOL Cutting Tools Measuring Software is developed based on high accuracy optical and digital measuring technology, it is easy and intuitive to operate and offers numerous measuring and evaluation algorithms specifically for tools manufactured or sharpened in grinding business.

Measuring Capability

            Helix Angle                            Axial Front Angle                        First Rear Angle


              Tool End                          Tool End - Center Shaft            Tool End - Front Angle
