Electronic Power Tool Inspection System with SMARTOOL Measuring Software and Wooden Case Packaging

Basic Information

Place of Origin:	Guangdong, China
Brand Name:	UNIMETRO
Model Number:	Ranger 600

Minimum Order Quantity:	1
Price:	$15,600-22,000

Get Best Price Contact Now

Detail Information

X Axis Travel:	80mm	Y Axis Travel:	60mm
Z Axis Range:	60mm	Max Tool Diameter:	50mm
Max Tool Length:	300mm	Working Distance:	90mm
Lens Magnification:	0.7-4.5X	Camera Resolution:	2M Pixel HD (5M Optional)
Linear Scale Resolution:	0.0001mm	Magnification Range:	12.6X~79.2X (25.2X~158.4X Optional)
Field Of View:	2720mm~4.33.3mm (13.510mm~2.31.6mm Optional)	Measuring Accuracy:	X~Y, (2.5+L/100)µm
PC System:	ALL-IN-ONE PC, Windows 10 OS, 24" LCD	Illumination Type:	8-section LED Ring Light, Contour Light, Auxiliary Light
Input/output Formats:	DXF, EXCEL
Highlight:	Electronic Power Tool Inspection System , SMARTOOL Measuring Software Vision Measurement Machine , Wooden Case Packaging Video Measuring System

Product Description

Milling Tool Inspection System Tool Video Measuring System Vision Measurement Machine

Product Application

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and countersinks with a flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.

The RANGER600 Tool Inspection system is configured with SMARTOOL universal measuring software, making it the ideal instrument for all types of metal cutting tools - from fast checking of single criteria (such as outer contour or angles) to complete control of special tool geometries. Users can easily achieve a PUT-MEASURE-ANALYSE measuring process with the RANGER600.

Technical Parameters

X axis travel	80mm
Y axis Travel	60mm
Z axis measuring range	60mm
Max tool Diameter	50mm
Max tool length	300mm
Working distance	90mm
Lens	0.7-4.5X dented zoom lens
Camera	2M pixel HD camera/5M pixel HD camera (Optional)
Linear scale resolution	0.0001mm
Magnification	12.6X~79.2X/25.2X~158.4X (Optional)
Field of view	2720mm~4.33.3mm/13.510mm~2.31.6mm (Optional)
Measuring accuracy	X~Y,(2.5+L/100)µm, L is the measured length
PC	ALL-IN-ONE PC system, Windows 10 OS, with 24" LCD monitor
Illumination	8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable
Input format	DXF files
Output format	EXCEL, DXF

Advanced Design Features

Ergonomic design and solid construction
HD image capturing and display combination, with optional microscope magnification levels

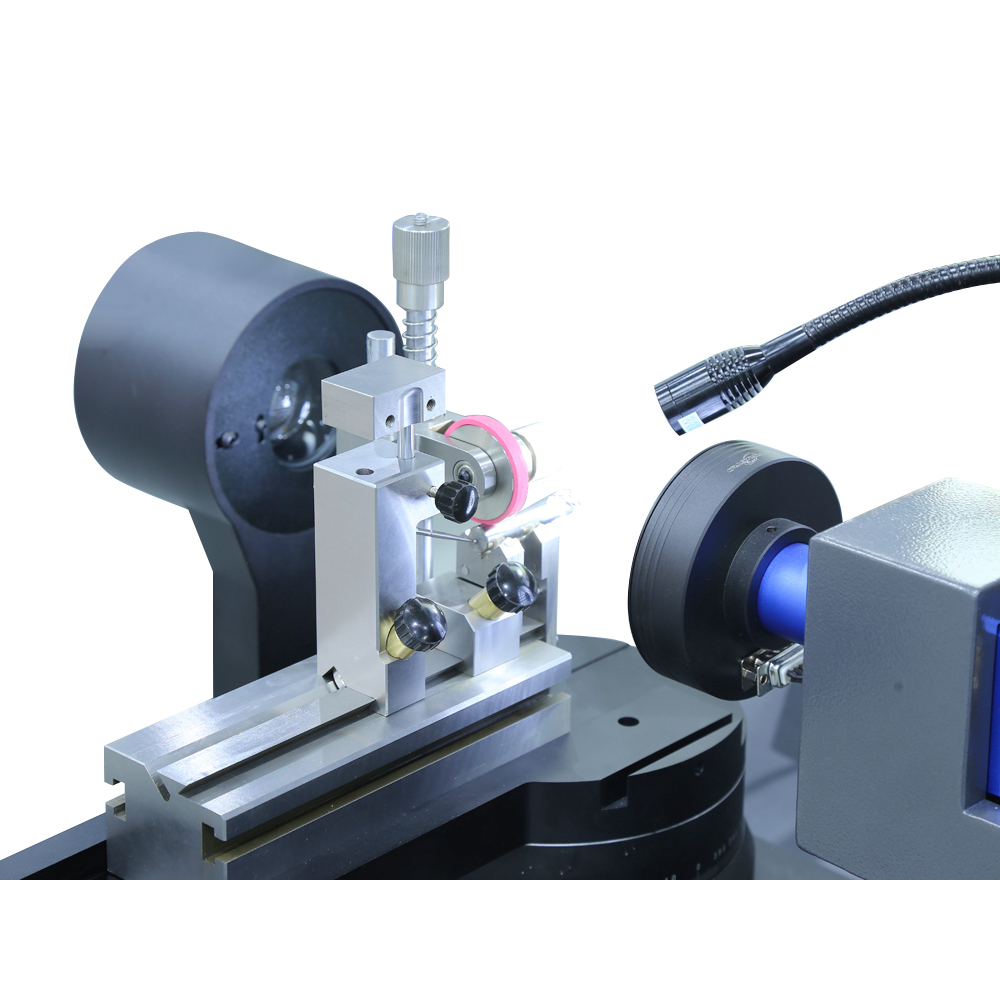

Stable and accurate V block for easy tools holding and alignment
Mechanical fixed measuring angles of 0 degree and 90 degrees available on the rotary stage
High accuracy encoder embedded in the rotary table for precise angle location

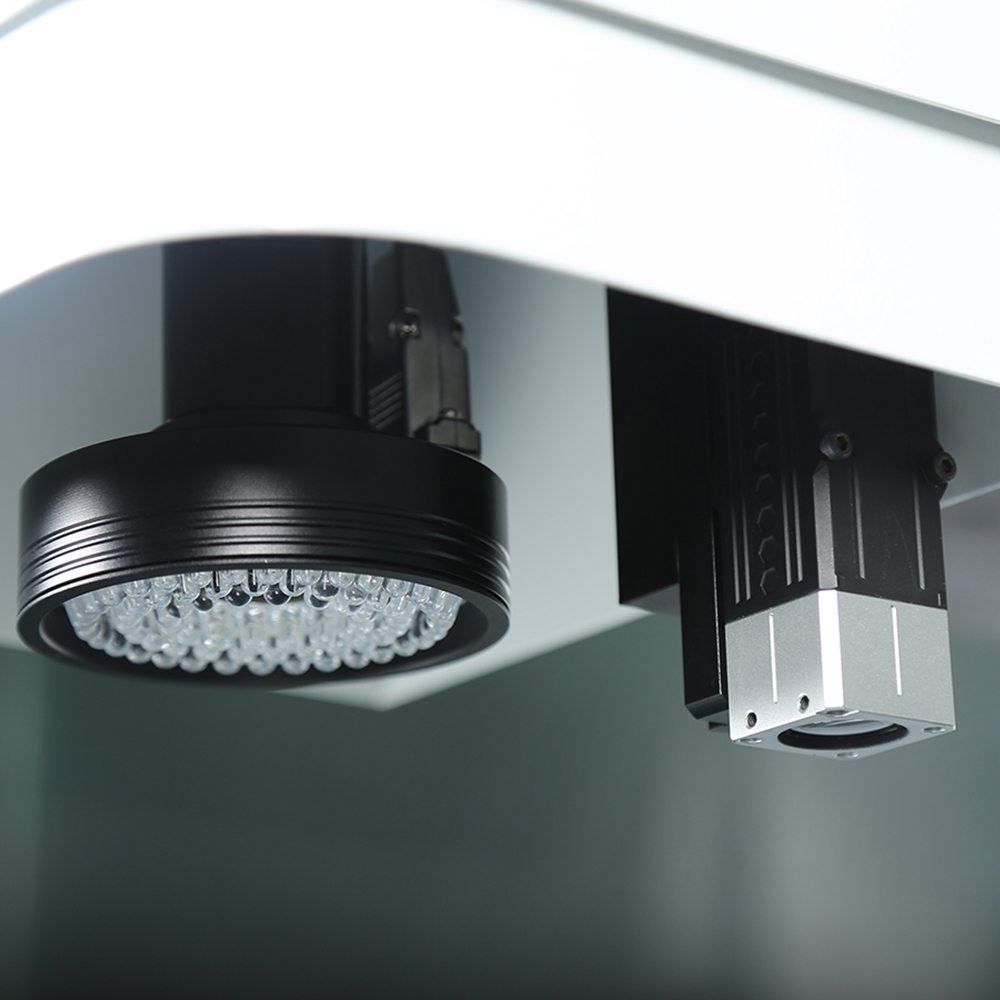

Multiple section programmable LED ring light for surface illumination, including contour lighting and free angle auxiliary light
SMARTOOL measuring software with specific functions for cutting tools
Automatic edge detection, fast angle measurement with reticle, and CAD element comparison functions
Measuring results can be quickly output to EXCEL file reports or CAD files
ALL-IN-ONE PC system for enhanced stability

Multiple Angle Measurement Capabilities

The rotary table of the RANGER600 offers two mechanical fixed angles (0° and 90°) for fast and precise tool angle location during measurement. At 0°, users can measure Tool End, Tool End - Center shaft, and Tool End - front angle. The 90° position is designed for Helix angle, Axial Front angle, First Rear angle, Second Rear angle, and Tilting Edge angle measurements. For other angle requirements, the embedded encoder provides precise angle readings displayed in the software.

0 Degree Measurement

45 Degrees Measurement

90 Degrees Measurement

Illumination System Features

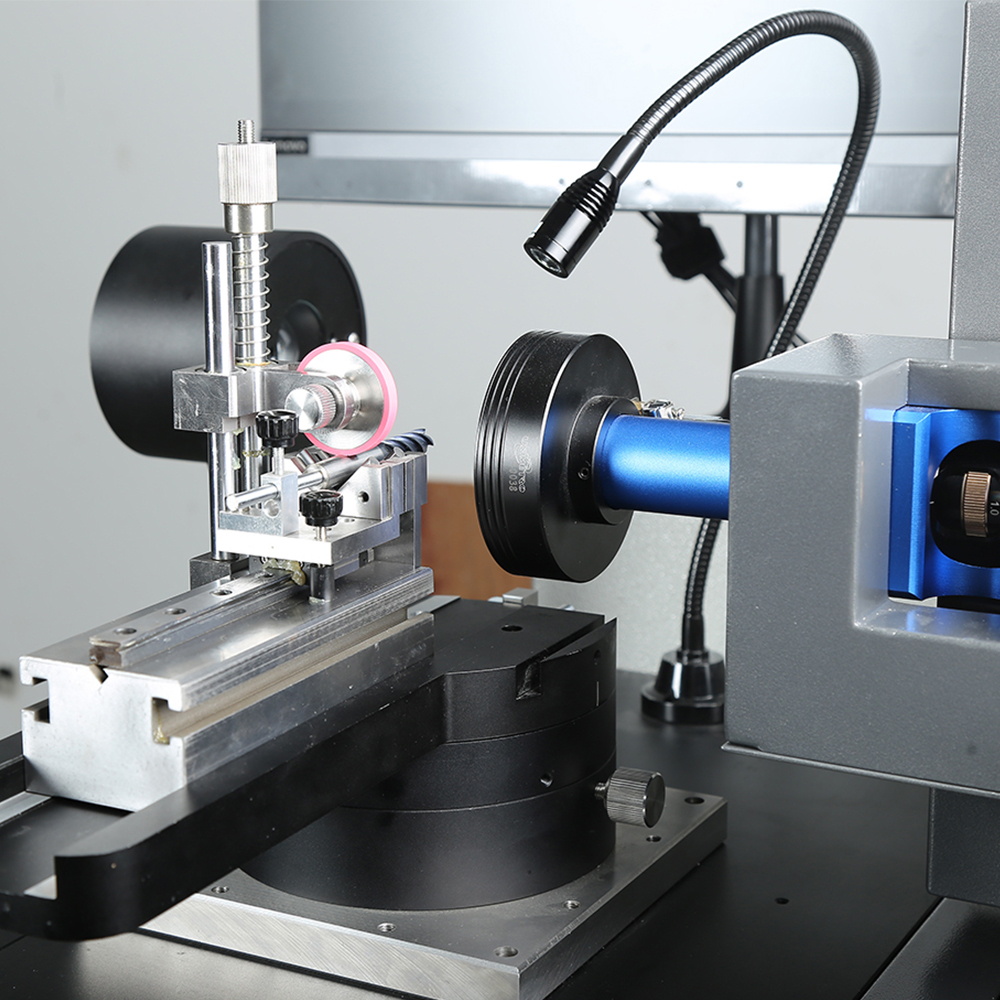

Free Angle Auxiliary Light

A dimmable additional light on a flexible arm provides localized image enhancement for detailed measurements.

Contour Light Module

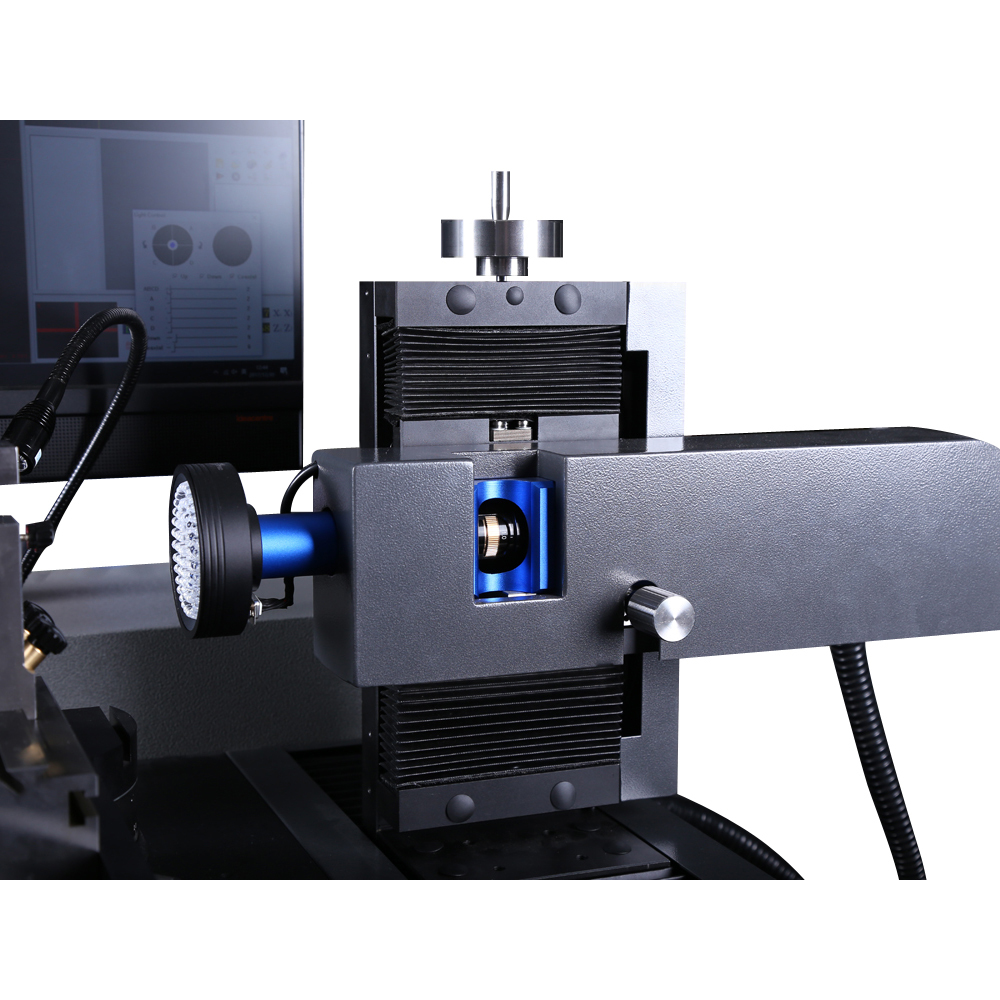

The RANGER600 includes a parallel light path contour LED module that moves along the X-axis, providing optimal imaging and sharp edge definition when measuring tool contours.

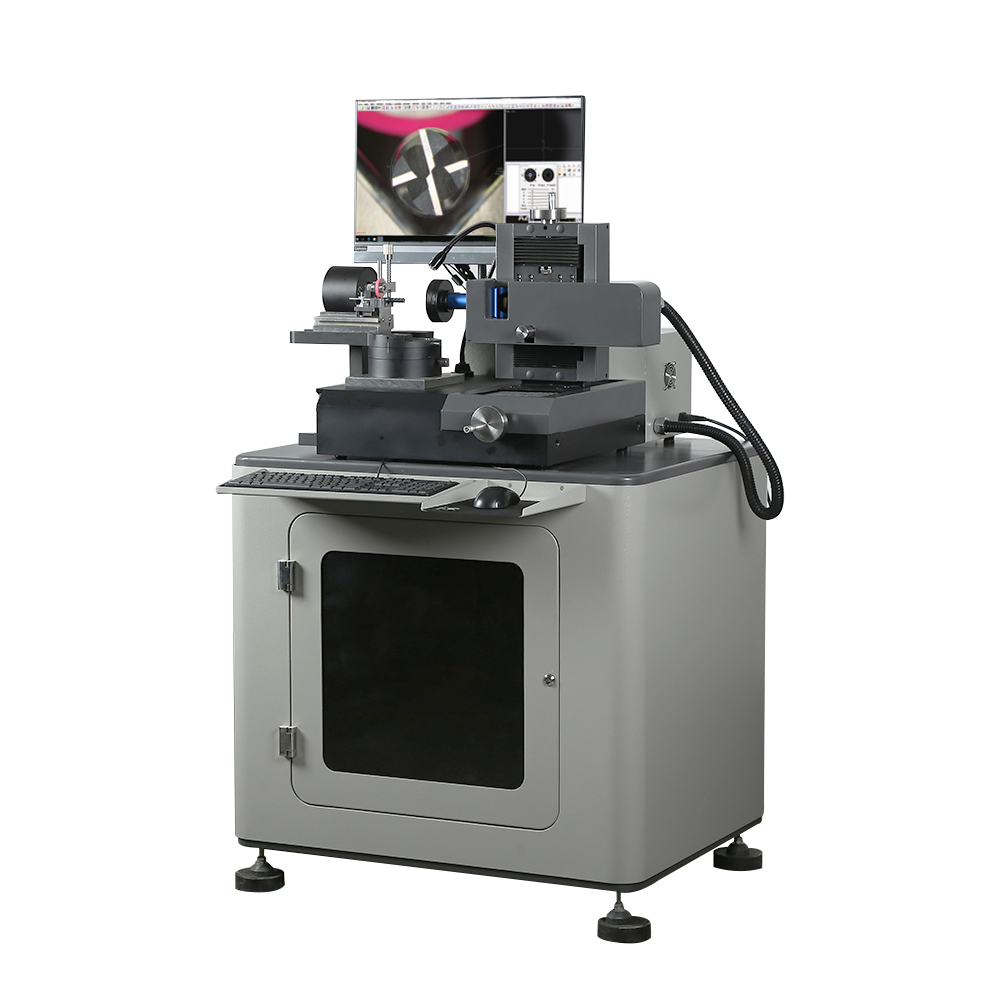

Base Table

The solid standing workstation features practical, open-view storage space for materials and tools.

Tools Holder

A multi-section tools holder is embedded at the machine side for organized tool preparation and storage.

SMARTOOL Software Features

The SMARTOOL Cutting Tools Measuring Software is developed based on high-accuracy optical and digital measuring technology. This intuitive software offers numerous measuring and evaluation algorithms specifically designed for tools manufactured or sharpened in grinding operations.

Key Software Features

Easy Operation

High-resolution image display with graphical interface. All function keys and control panels are displayed on the software window for intuitive operation.

Dynamic Real-Time Curve View

The software provides real-time edge detection curve visualization, making edge analysis and measurement more intuitive. Users can switch to curve view mode at any time during measurement.

Fast Angle Measuring with Reticle

The freely rotatable reticle in the SMARTOOL software displays angles, enabling quick angle measurements through edge comparison.

CAD Comparison

Users can import CAD tool drawings as references, comparing real images to CAD designs to evaluate cutting tool geometries.

Measuring Capabilities

Helix Angle Measurement

Axial Front Angle Measurement

First Rear Angle Measurement

Second Rear Angle Measurement

Tilting Edge Angle Measurement

Tool End Measurement

Tool End - Center Shaft Measurement
