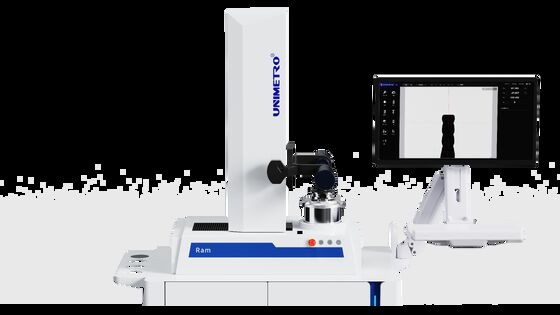

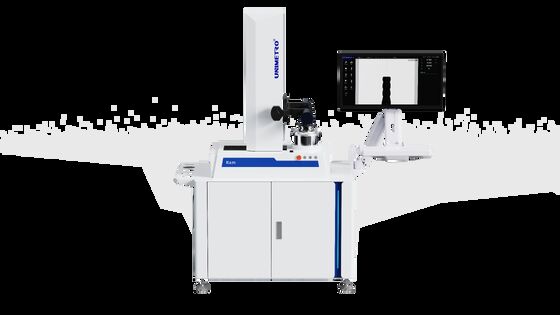

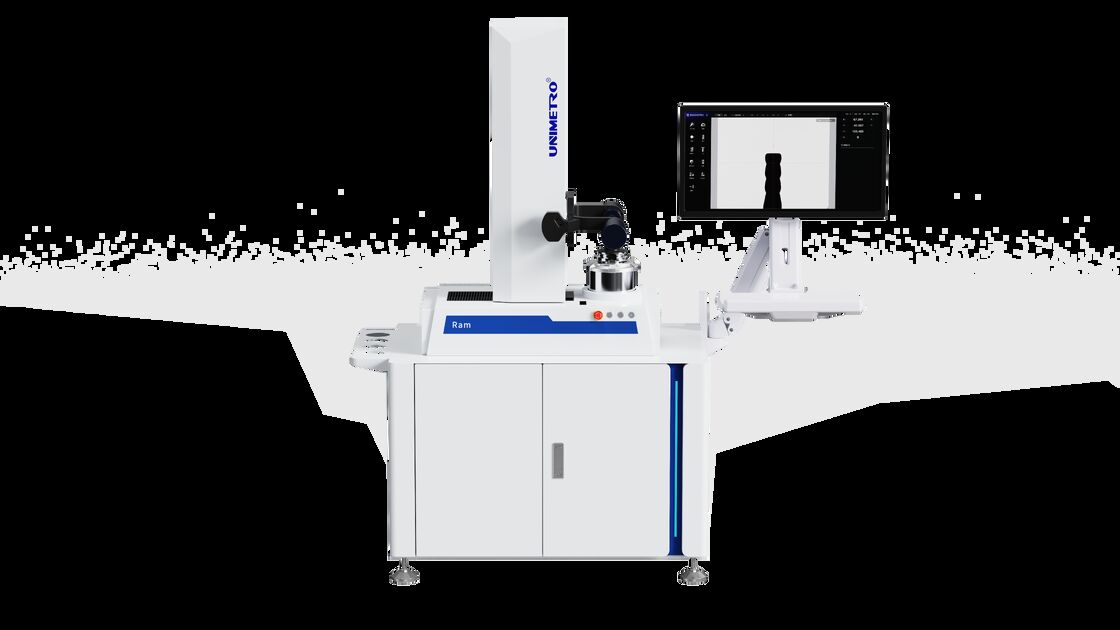

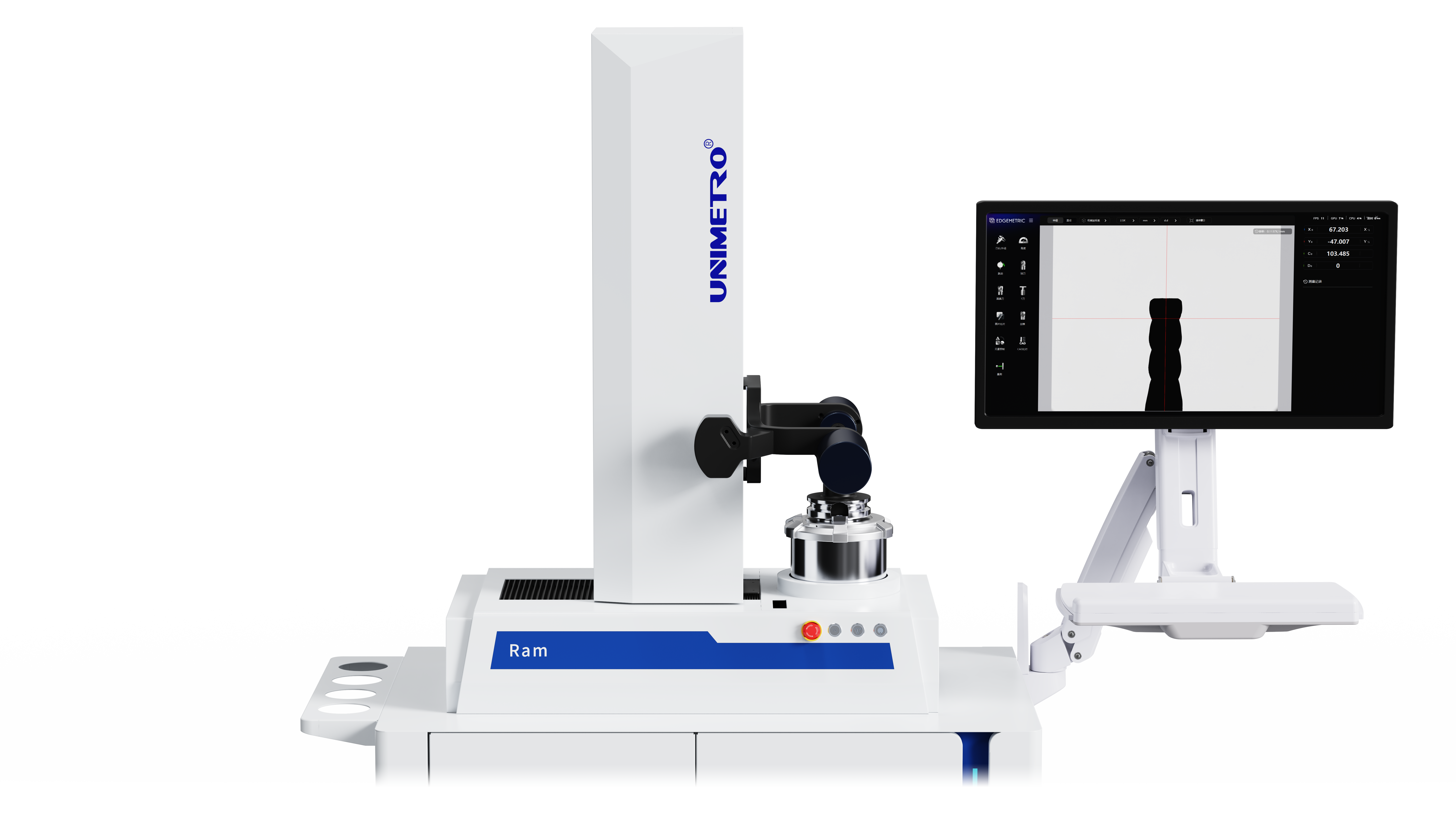

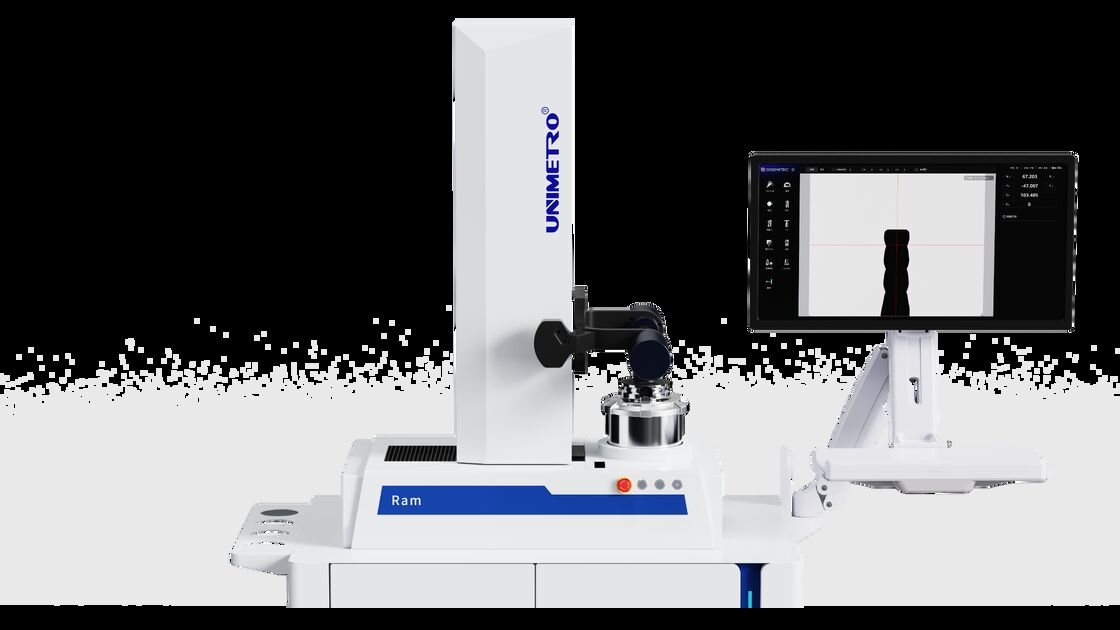

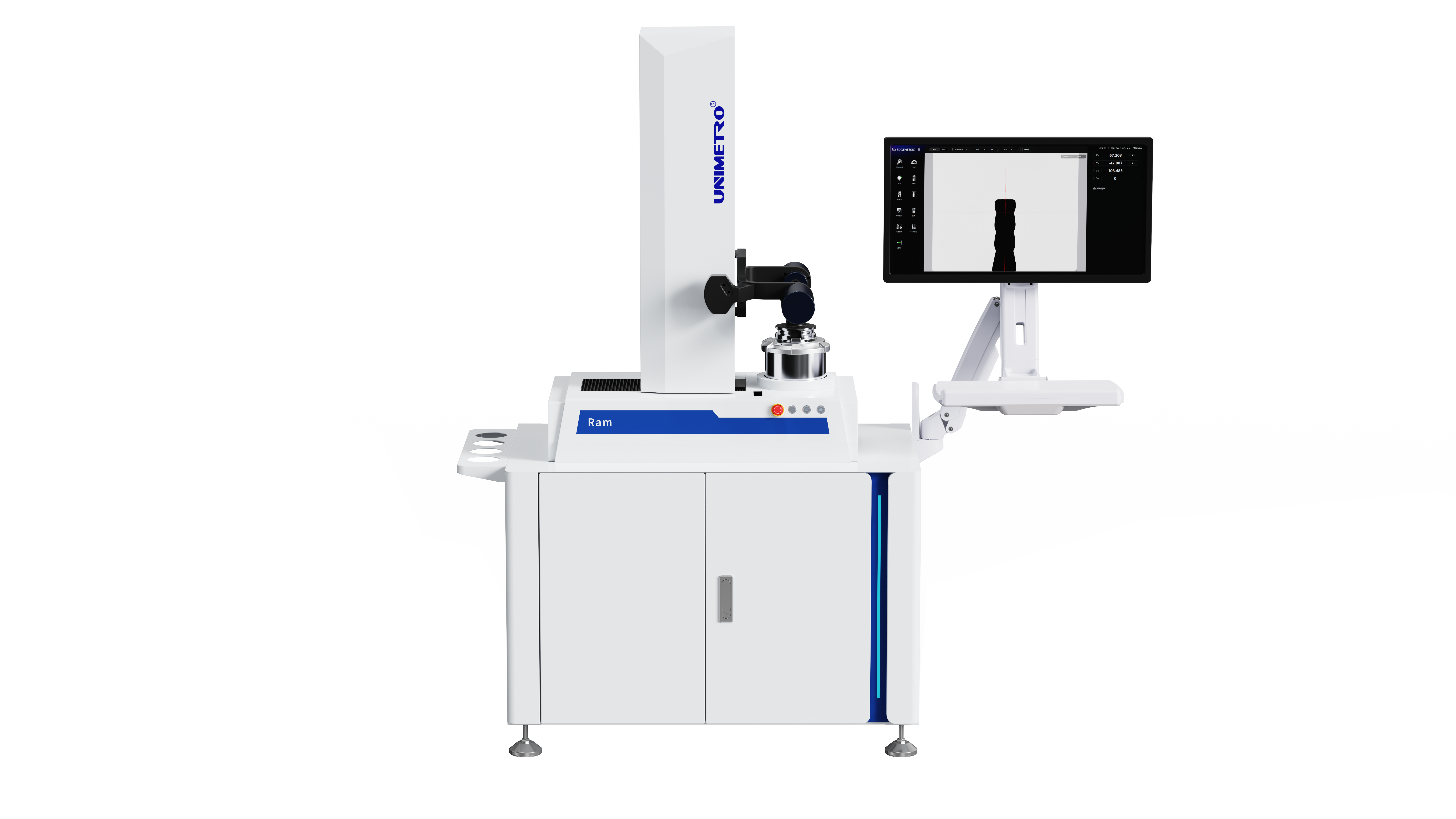

RAM Series Fully Automatic High-Precision Tool Presetter with 0.0001mm Resolution for Accurate Tool Measurement

RAM Series Tool Presetter redefines the standards for precision and efficiency in tool presetting. Rather than being a mere upgrade of conventional tool setters, it integrates highly rigid mechanical design, intelligent CNC technology and fully automatic measuring processes.

It transforms tool clamping, measuring and compensation from manual operation to one touch precision, providing a solid and reliable reference for tool length and radius in machine tool processing.

• Runout (300mm): ≤3μm
• Spindle Concentricity: 1μm
• Spindle Clamping Force: Mechanical clamping ≥250kg
• Rotation Mode: Manual/Fully automatic

• Power supply: 120V AC/220V AC, 50HZ/60HZ
• Air pressure: 0.4-0.6Mpa
• Light Source: Surface light and bottom light
• Resolution: 0.0001mm

Spindle calibration bar, calibration glass, adapter sleeve (BT50/BT40, BT50/BT30, BT50/HSK63A, BT50/HSK100A)

• Improve Tool Setting Efficiency and Consistency: The fully automatic process drastically shortens single measurement cycles, completely eliminates human error, and ensures objective and repeatable data.
• Ensure Machining Accuracy and Success Rate: Provide precise and reliable tool offset data for machine tools, improving first-piece success rate and machining consistency at the source.
• Reduce Dependence on Professional Skills: Simplify operation to enable ordinary operators to quickly perform high-precision tool setting, enhancing overall equipment effectiveness (OEE).
• Establish a Traceable Tool Data Chain: Measurement data can be stored, exported and networked, laying a foundation for digital tool management and process traceability.
