Name: CMS Surface Profile and Contour Measurement System with Profilometer Technology
Brand: Unimetro Precision Machinery Co., Ltd
SKU: SP1000
Price: 20,500.00 USD
Availability: InStock

Detail Information

Sensor:

Digital Contour Sensor

Software:

CMS Contour Measuring Software

Applicant:

Engine Oil Ring,Piston Grinding Tool,Bearing,Axial Core....

Highlight:

contour measuring equipment

roughness measuring instrument

Product Description

CMS Surface Profile and Contour Measurement System with Profilometer Technology

Digital Type Contour Measuring Machine

The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components require comprehensive analysis of all these elements.

Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features
Shape: Deviation from the target shape of the surface (plane, sphere, cone, etc.), typically caused by machine error
Roughness: Caused by factors such as cutting tools or machining processes
Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process

SP1000 Series Features

Standard type with low cost of use
Digital contour sensor
Large-scale profilometry capability

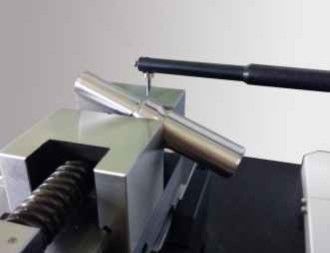

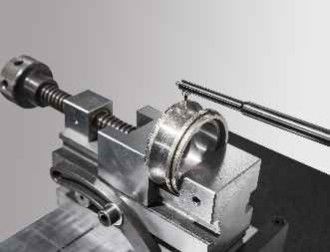

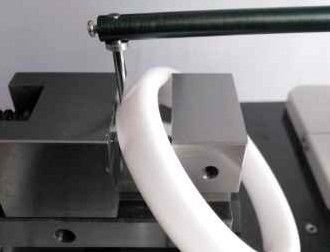

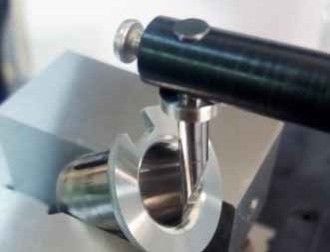

Measuring Case Examples

Recommended Specifications

Specification	Details
Model Number	SE2022G-tbo
Measuring Range X-axis	120mm
Measuring Range Z-axis	420mm
Z1-axis Range	±0.5mm~±7.5mm/262144:1
Z1 Linear Precision	0.07%f.s.
Angle Accuracy	±1′
Straightness	0.3μm/100mm
X-axis Drive Speed	0.05~20mm/s
Z-axis Drive Speed	0.2~20mm/s
Measurement Functions	Line elements, point features, distances, parallelism, perpendicularity, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, profile analysis

System Components

P Series Digital Contour Sensor

Resolution: 65536:1 / 262144:1
Range: R:±400µm/±600µm, C:±5mm/±7.5mm
Linear precision: R:±7%/±4%, C:0.15%/0.07%
Residual noise: ≤0.025µm/≤0.02µm
Roughness reference: Guideway, no guide
High-precision integrated inductance sensor for both roughness and profile measurement with needle change

Driver Options

Rail travel: 100-150mm
Number interval: 0.2~2µm
Contour straightness: 0.5µm/100mm
Roughness residual value: ≤0.02µm
Maximum moving speed: 10mm/s
Minimum measurement speed: 0.1mm/s
Standard drive meets part-level contour measurement accuracy requirements

Column Components

Range: 320~420mm / 520~620mm
Maximum moving speed: 10mm/s
Minimum moving speed: 0.5mm/s
Positioning accuracy: 0.01mm
Lightweight design with frame-type column for long-term stability

Platform Components: MPM Integrated Standard Machine

Material: Marble
Specification: 500*800, 500*1000
One-piece design with compact structure for easy maintenance
