Name: Multi-Sensor Universal Contour and Roughness Measurement System with Integrated Profilometer
Brand: Unimetro Precision Machinery Co., Ltd
SKU: SER1000
Price: 20,500.00 USD
Availability: InStock

Detail Information

Sensor:

Inductive Roughness Profile Sensor

Software:

CMS Profile Measurement System&RMW Surface Roughness Measuring And Anlysis System

Applicant:

Brake Oil Can,Brake Oil CanA,Spring,Car Fastening Bolt Etc

Highlight:

contour measuring instrument

roughness measuring instrument

Product Description

Multi-Sensor Universal Contour and Roughness Measurement System

Surface Roughness Tester Contour Measuring System

Universal Surface Roughness and Contour Measuring System with Combined Sensor Roughness Measurement Profilometer Machine

Surface Measurement Analysis Fundamentals

All surfaces can be measured across four key elements: dimensions, shape, roughness, and waviness. High-precision components require comprehensive analysis of all these parameters.

Dimensions: Surface functional shapes defined by linear relationships between radius, angle, distance, and features
Shape: Deviation from target surface shape (plane, sphere, cone, etc.), typically caused by machine error
Roughness: Surface texture variations caused by cutting tools or machining processes
Waviness: Non-ideal machine effects resulting from vibration, insufficient rigidity, or other process instabilities

SER1000 Series Features

Standard Type with Low Cost of Use

Inductive Profile Sensor

No-Lead Roughness Measurement

Small Range High Precision Profile Measurement

Roughness and Profile Measurement Composite

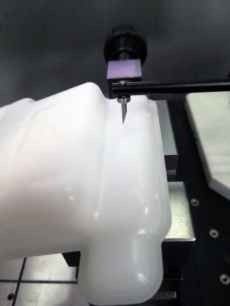

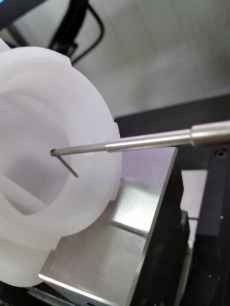

Measurement Applications

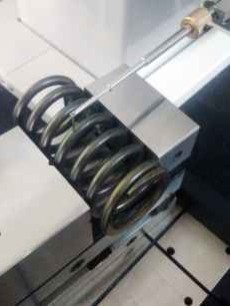

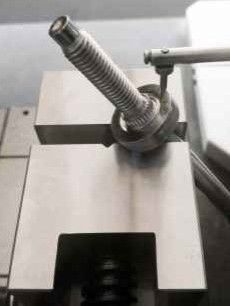

Applications Include: Brake Oil Cans, Springs, Car Fastening Bolts

Technical Specifications

Specification	SER1143G-sak
Measuring Range
X-axis	100mm
Z-axis	320mm
Z1-axis	C:±5mm R:±400µm
Contour Accuracy
Z1 Linear Precision¹	0.15% f.s.
Pt	±0.3µm
Angle	±2´
Straightness	0.5µm/100mm
Roughness Accuracy
Linear Precision	±7%
Residual Noise	≤0.025µm
Duplicate Value	1δ≤3nm
Cutoff Wavelength	0.025, 0.08, 0.25, 0.8, 2.5, 8mm
Rating Length	λcX2,3,4,5,6,7
Drive Speed
X-axis	0.1~10mm/s
Z-axis	0.5-10mm/s
Measurement Functions
Profile	Line elements, point features, distances, parallelism, perpendicularity, angle, groove depth, groove width, radius, straightness analysis, convexity analysis, profile analysis
Roughness	Ra, Rp, Rv, Rz(jis), R3z, RzDIN, Rzj, Rmaz, Rc, Rt, Rq, Rsk, Rku, Rsm, Rs, RΔq, Rk, Rpk, Rvk, Mr1, Mr2, Rmr
Waviness	Wa, Wt, Wp, Wv, Wz, Wq, Wsm, Wsk, Wku, Wmr
Original Contour	Pa, Pt, Pp, Pv, Pz, Pq, Psm, Psk, Pku, Pmr

System Components

P Series Digital Contour Sensor

Resolution: 65536:1 / 262144:1
Range: R:±400µm/±600µm, C:±5mm/±7.5mm
Linear Precision: R:±7%/±4%, C:0.15%/0.07%
Residual Noise: ≤0.025µm/≤0.02µm
Roughness Reference: Guideway, no guide
High-precision integrated inductance sensor for both roughness and profile measurement with simple needle change

Driver Options

Rail Travel: 100-150mm
Number Interval: 0.2~2µm
Contour Straightness: 0.5µm/100mm
Roughness Residual Value: ≤0.02µm
Maximum Moving Speed: 10mm/s
Minimum Measurement Speed: 0.1mm/s
Standard drive meets part-level contour measurement accuracy requirements

Column Components

Range: 320~420mm / 520~620mm
Maximum Moving Speed: 10mm/s
Minimum Moving Speed: 0.5mm/s
Positioning Accuracy: 0.01mm
Lightweight frame-type column design for long-term stability

Platform Components

Material: Marble
Specification: 500*800, 500*1000
One-piece design with compact structure for easy maintenance

About UNIMETRO

Building Your Business with Professional Metrology Solutions

UNIMETRO is a professional manufacturer of metrology equipment with over 10 years of experience. We provide high-performance products at reasonable prices and welcome professional partners from global markets.

Our Services

UNIMETRO is committed to providing the best metrology products and solutions, along with comprehensive after-sales service including free online support, software upgrades, and fast response times.

Global Market

We welcome dealers and distributors worldwide and provide full commercial and technical support. UNIMETRO consistently delivers products with the best price-performance ratio and superior service.

OEM and Custom Solutions

UNIMETRO offers OEM services for distributors and develops custom measurement solutions through our professional technical team. Consult our engineers for specialized requirements.

Place of Origin:	CHINA
Brand Name:	UNIMETRO
Model Number:	SER1000

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	wood case
Payment Terms:	T/T
Supply Ability:	15set per month
