Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function

Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function

  • Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function
  • Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function
  • Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function
  • Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function
Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function
Product Details:
Place of Origin: CHINA
Brand Name: UNIMETRO
Model Number: SPR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: wood case
Payment Terms: T/T
Supply Ability: 15set per month
Contact Now
Detailed Product Description
Sensor: Deep Noise Digital Contour Sensor&wide Range No-head Roughness Sensor Software: CAS Contour Measurement And Anlysis System&RMW Surface Roughness Measurement And Anlysis System
Applicant: Engine Casing,Spool Valve Body,piston,Automobile Clutch Parts Etc
High Light:

contour measuring instrument

,

contour measuring equipment







Surface Roughness Tester Contour Measuring System Roughness And Contour Measuring machine



Surface Roughness and Contour Tester High Level Analysis Multiple Function Roughness measurement profilometer machine



Product Description

Roughness profile measurement analysis basis

The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining processes
◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process







SPR2000 Series

Features: the best balance of performance and cost, with the best price/performance ratio

★ High precision digital contour sensor
★ No head wide range roughness sensor
★ Large-scale profilometry, micro-profile measurement
★ Wide range roughness measurement
★ High-precision large-scale roughness, high-precision large-scale contour measurement of composite models





Measuring Case



   Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 0 Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 1

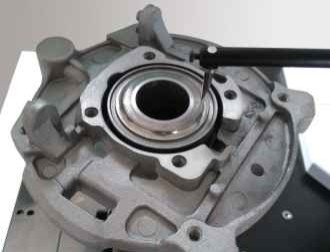

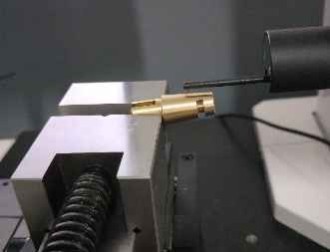

                             Engine casing                                        Spool valve body



    Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 2 Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 3

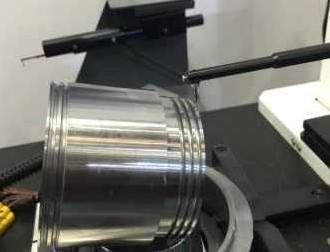

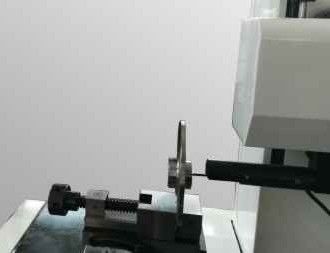

                               piston                                         Automobile clutch parts



Recommended Size



Specification number
SPR2012G-tdp


Measuring range
X-axis
150mm
Z-axis
420mm
Z1-axis
C:±12.5mm/R:±620µm


Contour accuracy
Z1 Linear precision¹
±(0.8+|0.12H|)µm
Arc
±(1.5+R/12)µm
angle
±1´
Straightness
0.5µm/100mm



Roughness accuracy
Linear precision
±3%
Residual noise
0.005µm
Repeatability
1δ≤1nm
Cutoff wavelength
0.025,0.08,0.25,0.8,2.5,8mm
Rating length
λcX2,3,4,5,6,7

Drive speed
X-axis
0.05~20mm/s
Z-axis
0.2-20mm/s






Measurement function
Profile
Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis.
Roughness
Roughness function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq,Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr
Waviness parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr
Original contour parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr



System Components



Sensor:Php Series Low Noise Digital Profile Sensor

Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 4
● Resolution: 0.02-0.1um
● Range: ±7.5-±30um

● Linear precision: ±(0.7+|0.05H|)um

● Measuring force:0.7g
● Feature description:No guide type roughness sensor, with good frequency response and wide signal bandwidth, is the best type of roughness sensor.



Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

Surface Roughness Contour Measuring Equipment High Level Analysis Multiple Function 5

● Rail travel:100-150mm/180~220mm
● Number interval: 0.05~2µm/0.05~5µm
● Contour straightness:0.3µm/100mm
● Roughness residual value:≤0.005µm
● Maximum moving speed:20mm/s
● Minimum measurement speed:0.1mm/s
● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.



Column member: Cnf High Speed Column / Cnfl High Speed Long Column

(Can choose according to your needs)



● Range:320~420mm / 520~620mm
● Maximum moving speed:20mm/s
● Minimum moving speed:0.2mm/s
● Positioning accuracy:0.005mm
● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy



Platform components: Mpe Integral Ergonomic Machine Table



● Material:marble
● Specification:500*800,500*1000
● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.



About us

UNIMETRO helps you to build your own business!
UNIMETRO is the professional manufacturer of metrology with over 10 years experience. We offer high performance products with reasonable price. And professional cooperators from global market are always welcome to join us and UNIMETRO will always offer the best marketing and technical support.



Our service

UNIMETRO is devoting to offer the best metrology products and solution,also offer the best after sales service.Free on-line support, free software upgrade and fast reaction of after salesservice ensure the satisfaction of our customers and dealers.

Global market

Dealers or distributors all over the world are welcome and we will offer fullsupport in commercial and technical phase.UNIMETRO is always providing products with the best price performance ratio and the best service.

OEM and special measuring solution

UNIMETRO is available for OEM service for our distributors.

Thanks to the professional technical team of UNIMETRO, we are also capable for varies kinds of special measuring solution or devices development, please consult to our engineer if you have such kind of requirement.
