Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing

Basic Information
Place of Origin: Dongguan,china
Brand Name: UNIMETRO
Model Number: SPR1000
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: wood case
Detail Information
Sensor: Digital Type Contour Sensor&Standard No-head Roughness Sensor Sorftware: CMS Contour Measurement System&RMW Surface Roughness Measurement And Anlysis System
Applicant: Articulated Arm Bearing ,Optical Grade Germanium Crystal,Seal Ring,Turbo Seal Etc
High Light:

contour measuring instrument

,

contour measuring equipment


Product Description







Surface Roughness Tester Contour Measuring System



Surface Roughness Contour Tester Roughness Contour Measuring machine Roughness measurement profilometer machine





Product Description



Roughness profile measurement analysis basis



The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.

◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
◆ Roughness: caused by factors such as cutting tools or machining processes
◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process







SPR1000 Series



Characteristics:Standard type, low cost of use.



Using a digital contour sensor and an inductive standard roughness sensor dual sensor, a machine can be used to measure contour and roughness.











Measuring Case



Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 0 Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 1

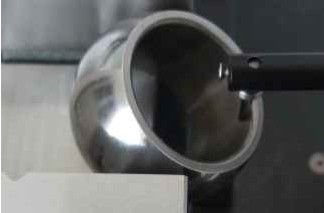

                Articulated arm bearing                              Optical grade germanium crystal





Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 2 Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 3



                                 Seal ring                                                               Turbo seal









Recommended Size



Specification number

PR1103G-sdk

Measuring range

X-axis

100mm

Z-axis

320mm

Z1-axis

C:±12.5mm/R:±420μm

Contour accuracy

Z1 Linear precision1

±(1.5+|0.2H|)μm

Arc

±(2+R/8)μm

angle

±2′

Straightness

0.8μm/100mm

Roughness accuracy

Linear precision

±4%

Residual noise

≤0.02μm

Duplicate value

1δ≤2nm

Cutoff wavelength

0.025,0.08,0.25,0.8,2.5,8mm

Rating length

λcX2,3,4,5,6,7

Drive speed

X-axis

0.1~10mm/s

Z-axis

0.5-10mm/s

Measurement function

Profile

Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis

Roughness

Roughness function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq, Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr Waviness parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr Original contour parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr





System Components



Sensor:P series digital contour sensor



     Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 4
● Resolution ratio: 0.02-0.2µm


Range: ±7.5-±30µm


Linear precision: ±(1.5+|0.6H|)µm


Measuring power: 1.2kg


Feature description:Digital contour sensor still has excellent linearity in large range







Driver: DS standard driver / Dc ceramic driver(Can choose according to your needs)



Surface Roughness Contour Measuring Instrument For Articulated Arm Bearing 5

● Rail travel:100-150mm


● Number interval: 0.2~2µm


● Contour straightness:0.5µm/100mm


● Roughness residual value:≤0.02µm


● Maximum moving speed:10mm/s


● Minimum measurement speed:0.1mm/s


● Feature description:Standard drive, performance can meet the requirements of part-level contour measurement accuracy, with roughness sensor can meet the measurement needs of Ra greater than 0.1 microns







Column member: Cns standard type column / Cnsl standard type long column

(Can choose according to your needs)







● Range:320~420mm / 520~620mm


● Maximum moving speed:10mm/s


● Minimum moving speed:0.5mm/s


● Positioning accuracy:0.01mm


● Feature description:Lightweight design, frame-type column, long-term use without deformation







Platform components: Mpm integrated standard machine







● Material:marble


● Specification:500*800,500*1000


● Feature description:One-piece design, compact structure, easy maintenance and saving
