    Product Details:

    Place of Origin: CHINA
    Brand Name: UNIMETRO
    Model Number: SER2000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: wood case
    Payment Terms: T/T
    Supply Ability: 15set per month
    Contact Now
    Detailed Product Description
    Sensor: Wide Range Inductive Roughness Profile Sensor Software: CAS Roughness Measurement And Anlysis System&RMW Surface Roughness Measurement And Anlysis System
    Applicant: Gearbox Accessories,Gear,Valve Body Etc







    Surface Roughness Tester Contour Measuring System Roughness And Contour Measuring machine



    High Precision Roughness and Profile Tester Surface Roughness Contour Measuring Machine



    Product Description

    Roughness profile measurement analysis basis

    The measurable elements of all surfaces include size, shape, roughness and waviness. Many high-profile components need to analyze all of the above elements.
    ◆ Dimensions: Surface functional shapes defined by the linear relationship between radius, angle, distance, and features.
    ◆ Shape: deviation from the target shape of the surface (plane, sphere, cone, etc.), usually caused by machine error
    ◆ Roughness: caused by factors such as cutting tools or machining processes
    ◆ Waviness: Non-ideal machine effect caused by vibration, insufficient rigidity or other unstable factors in the process







    SER2000 Series

    Features: the best balance of performance and cost, with the best price/performance ratio

    ★ High precision digital contour sensor
    ★ No head wide range roughness sensor
    ★ Large-scale profilometry, micro-profile measurement
    ★ Wide range roughness measurement
    ★ High-precision large-scale roughness, high-precision large-scale contour measurement of composite models





    Measuring Case



       High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s

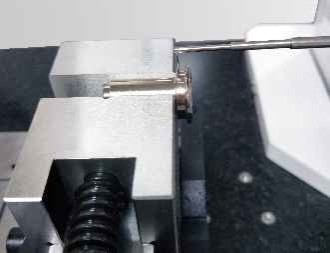

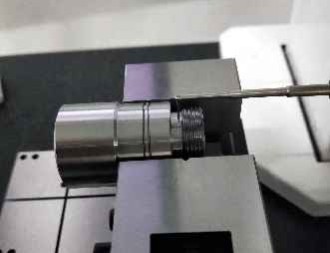

                         Gearbox accessories                            Gearbox accessories



       High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s

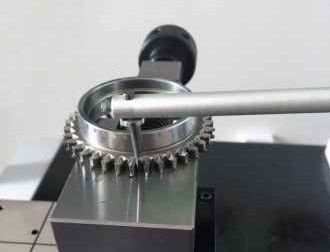

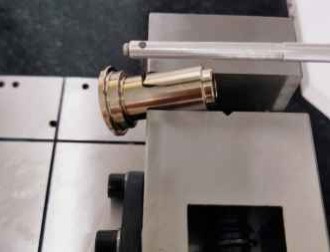

                                   Gear                                                  Valve body



    Recommended Size



    Specification number
    SER2042G-tbo

    Measuring range
    X-axis
    120mm
    Z-axis
    420mm
    Z1-axis
    C:±7.5mm R:±600µm


    Contour accuracy
    Z1 Linear precision¹
    0.07%f.s.
    Pt
    ±0.3µm
    angle
    ±1´
    Straightness
    0.3µm/100mm



    Roughness accuracy
    Linear precision
    ±4%
    Residual noise
    0.02µm
    Duplicate value
    1δ≤3nm
    Cutoff wavelength
    0.025,0.08,0.25,0.8,2.5,8mm
    Rating length
    λcX2,3,4,5,6,7

    Drive speed
    X-axis
    0.05~20mm/s
    Z-axis
    0.2-20mm/s






    Measurement function
    Profile
    Line elements of various types of workpiece surfaces, point features, distance between points and points, distance between lines and lines, position of each element including distance, parallelism, perpendicularity, angle, groove depth, groove width, radius, can be performed Straightness analysis, convexity analysis, profile analysis
    Roughness
    Roughness function:Ra,Rp,Rv,Rz(jis),R3z,RzDIN,Rzj,Rmaz,Rc,Rt,Rq,Rsk,Rku,Rsm,Rsm,Rs,RΔq,Rk,Rpk,Rvk,Mr1,Mr2,Rmr
    Waviness parameter:Wa,Wt,Wp,Wv,Wz,Wq,Wsm,Wsk,Wku,Wmr
    Original contour parameter:Pa,Pt,Pp,Pv,Pz,Pq,Psm,Psk,Pku,Pmr



    System Components



    Sensor:ER Series Inductive Roughness Profile Sensor

    High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s

    ● Resolution ratio: 65536:1 / 262144:1
    ● Range: R:±400µm/±600µm/,C:±5mm/±7.5mm
    ● Linear precision: R:±7%/±4%,C:0.15%/0.07%
    ● Residual noise:≤0.025µm/≤0.02µm

    ● Roughness referance:Guideway, no guide
    ● Feature description:High-precision integrated inductance sensor can realize not only roughness measurement but also profile measurement. The switch of roughness and profile measurement function can be realized only by changing the measuring needle.





    Driver: Dsh Low Noise Driver/Dch Low Noise Ceramic Driver(Can choose according to your needs)

    High Accuracy Surface Roughness Contour Measuring Machine Fast Moving Speed 20mm/s

    ● Rail travel:100-150mm/180~220mm
    ● Number interval: 0.05~2µm/0.05~5µm
    ● Contour straightness:0.3µm/100mm
    ● Roughness residual value:≤0.005µm
    ● Maximum moving speed:20mm/s
    ● Minimum measurement speed:0.1mm/s
    ● Feature description:Low noise actuator can meet the requirement of profile measurement accuracy of standard parts, and the measurement requirement of Ra greater than 0.025 micron can be met with roughness sensor.



    Column member: Cnf High Speed Column / Cnfl High Speed Long Column

    (Can choose according to your needs)



    ● Range:320~420mm / 520~620mm
    ● Maximum moving speed:20mm/s
    ● Minimum moving speed:0.2mm/s
    ● Positioning accuracy:0.005mm
    ● Feature description:High-speed column, frame column, long-term use of non-deformable, precision and fast transmission structure, fast moving speed, wide speed range, high positioning accuracy



    Platform components: Mpe Integral Ergonomic Machine Table



    ● Material:marble
    ● Specification:500*800,500*1000
    ● Feature description:Integral design, compact structure, convenient maintenance, saving use space, ergonomics, reduce operator fatigue strength.
