    Product Details:

    Place of Origin: China
    Brand Name: UNIMETRO
    Model Number: HE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Packaging Details: Wood case
    Delivery Time: 30 work days
    Payment Terms: T/T
    Supply Ability: 1 per month
    Contact Now
    Detailed Product Description
    Z Axis Travel: 150mm Objective Lens: Manual Detented Zoom Lens / Autozoom Lens 0.7-4.5X / Navitar Lens For Option
    Magnification: 33-195X Vision Field: 8.1-1.3
    Measuring Resolution: 1um / 0.5um / 0.25um / 0.1um For Optional Measuring Software: Rational Vue 3D Composite Measuring Software
    Illumination: Programmable 8 Sections Ring LED For Surface Light, 40 Sections Ring LED For Option, LED Parallel Contour Light, Co-axial Light For Option.



    HE Series Gantry Type CNC Automatic Vision Measurement Machine





    Product Decription



    The HE series high accuracy gantry type vision measurement machine combines high accuracy and high efficiency, offers high speed measuring for the geometric elements of different kinds of parts. The HE series is widely used in varies industries and products as PCB, copper clad laminate, large glasses, LCD modules, and insulation materials etc.



    Finite elements analysis is introduced in the designing process of the HE series, ensures high rigidity and accurate mechanical structure. The machine base is using closed frame movable bridge type structure, which is simple and offers high loading capability and the best motion performance.



    000 grade granite machine base, offers high rigidity, corrosion resistance and high stability.



    The work stage is able to preset multiple products fixturing solution, also multiple lens combination is for option, satisfy different measuring requirement from different customers.



    Full close loop motion control system ensures the best movement and positioning performance.



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems



    With the finite element analysis and the 000 grade granite, we get the most reasonable and optimized machine frame design, which ensures high rigidity and reliability.



    The HE series high efficiency large size vision measurement machine is using UWC motion controller and high torque motors, offers high performance motion control, the high acceleration and fast locating offers high efficiency in the measuring process.



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems

    UWC large size vision measurement machine solution package, Panasonic motors for option



    The machine frame is with moving gantry structure which ensures a simpler, smarter structure with higher loading and better movement Performance.











    Detailed Images



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems

    X/Y axis use accurate liner guide way, Z axis uses high performance cross rail with the original German friction driven group.



    Renishaw linear scales included, with high accuracy, stability and long life cycle.



    According to users’ requirements the working stage is able to preset with multiple type of products fixtures, also multiple lens and cameras combination option are available, gives more flexibility to users.

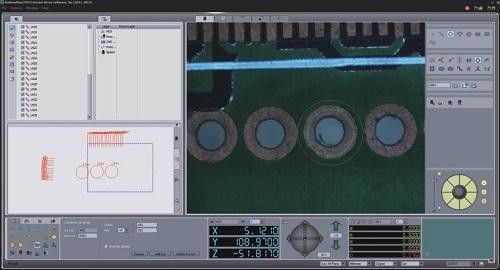

    With the powerful Rational-Vue software users can achieve complicated measuring programs easily. In the mass production the HE series vision measurement machine can be a powerful measuring instrument.



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems











    Parameters



    Items
    HE862
    HE1080
    HE1210
    HE1512
    HE1812
    Dimension(mm)
    1700*1280*1750
    1900*1480*1750
    2100*1680*1750
    2500*1880*1750
    2700*1880*1750
    Measuring range (mm)
    600*800*200
    800*1000*200
    1000*1200*200
    1200*1500*200
    1200*1800*200
    Measuring Accuracy
    3+L/200um
    3+L/200um
    3+L/200um
    3+L/200um
    3+L/200um
    Repeatability ( µ m )
    3
    3
    4
    4
    4
    Weight ( kg )
    1800kg
    2900kg
    3200kg
    4400kg
    4800kg


    Image and Measuring
    CCD
    Industrial grade color CCD camera
    Lens
    Manual dented zoom lens 0.7-4.5X/Auto zoom lens 1-10X
    Magnification
    18-195X ( For reference only. With different camera and lens the magnification will be different. )
    Field of View
    8.1~1.3mm
    Working distance
    108mm
    Linear scale resolution
    1µ m ( 0.5µ m for option )
    Driving system
    CNC control, close-loop AC Servo driving system, joystick, mouse or key board control
    Illumination
    Programmable 8 sections LED ring surface light, parallel LED contour light, 40 section LED ring light, co-axial light, movable multi color ring light for option










    Optional solutions



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems



    Illumination:
    Lens:
    Touch probe:
    Laser sensor
    4/8/40 sections LEDsurface ring light
    48 sections 4 colors LED ring light
    Movable 4 colors LED ring light
    Manual dented zoom lens
    Auto zoom lens
    Manual dented zoom lens with co-axial light
    Auto zoom lens with co-axial light
    Renishaw MCP kits
    Measuring error<=0.75µm
    Renishaw PH6+TP20
    Measuring error<=0.35µm
    KEYENCE not-contact laser sensor
    White light measuring sensor











    Joystick control



    Large Size Vision Measurement Machine Rapid Movement PCB LCD Vision Measuring Systems
