Rational DMIS 3D Video Measurement Software with Full Revo 5-Axis Support for Precision Metrology

Basic Information

Place of Origin:	USA
Brand Name:	External Array
Model Number:	Rational DMIS

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	10 per month

Get Best Price Contact Now

Detail Information

Supporting 5 Axis Probes:	Renishaw PH20 High Speed 5 Axis Probe, 5 Axis Scanning REVO	Supporting Non-contact Devices:	CCD, OTP6M, LD50-Laser, LD60-Laser
Supporting Motion Controller:	UCC1, UCC2, UCClite, WPC, DEVA, TUTOR-P, MicroScribe Arm, Baces3D Arms, HEADER Line Laser	Standard:	DMIS
Supporting Auto Rotating Probe:	PH9, PH10T, PH10M	Supported Continuous Scanning:	SP80, SP600M, SP25
Highlight:	3d metrology software , video measurement software

Product Description

Rational DMIS 3D Video Measurement Software with Full Revo 5-Axis Support

Advanced Coordinate Measuring Machine Software Solution

Through years of continuous development, RationalDMIS has gained widespread acceptance among users in the precision metrology industry. The software's unique click-and-drag operation mode combined with powerful functionality represents a significant advantage in coordinate measuring machine technology.

Key Features and Benefits

Intuitive User Interface

Simple, user-friendly operation interface designed for ease of use
Eliminates window jamming situations and repetitive data entry

Click and Drag Functionality

Complete functionality achieved through simple mouse click and drag operations
Construction, tolerance analysis, and programming operations require only mouse clicks

Innovative Interface Options

Rational Quick Interface enhances window switching efficiency and tolerance calculations
Xmeas Interface provides simplified, intelligent, and personalized measuring environment
Online Assistant offers user-friendly and intelligent support features

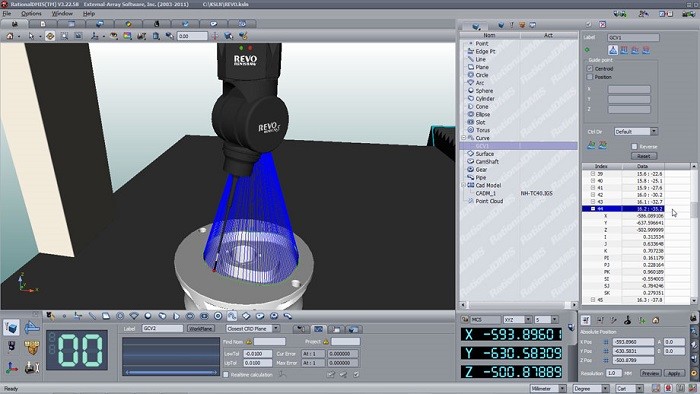

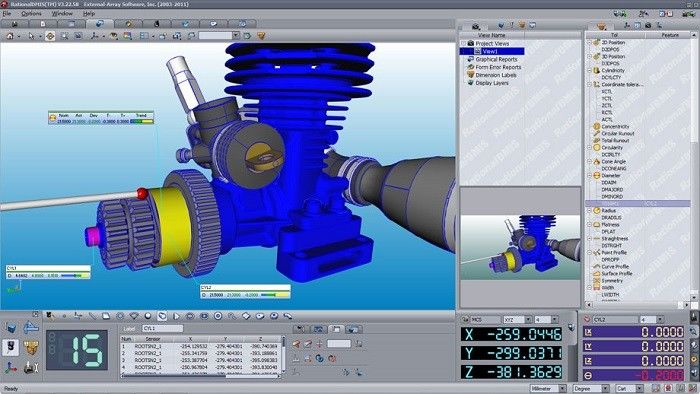

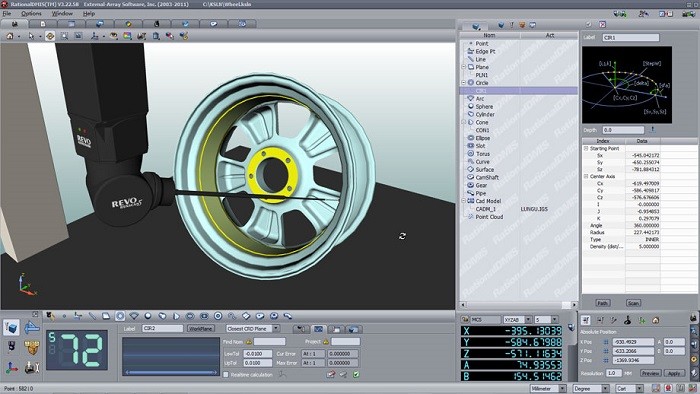

Real-time Graphical Display

100% real-time graphical representation of complete measurement process
Full visualization of machine modeling, probe creation, calibration, and measurement operations

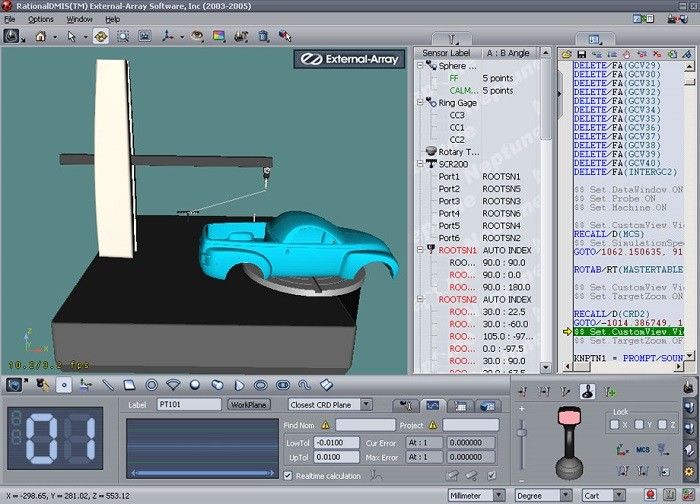

Advanced Safety and Simulation

Path simulation and collision detection capabilities
Enhanced measurement planning for predictable operations
Minimizes crash risks from inexperienced operations

DMIS Standard Compliance

Pure DMIS core ensuring 100% DMIS standard compliance
Integration with common DMIS commands, functions, and macros
Self-learning function automatically generates standard DMIS commands

Target-Based Measurement

Image-driven measurement for rapid programming
Automatic recognition of digital model theoretical elements
Click-and-measure functionality increases operational efficiency

Comprehensive Reporting

Multiple graphical report output options

Hardware Compatibility

Supported Motion Controllers

UCC1, UCC2, UCClite, WPC, DEVA, TUTOR-P
MicroScribe arm, Baces3D arms, HEADER line laser

Probe and Sensor Support

High Speed 5-Axis Probes

Renishaw PH20 high speed 5-axis probe
5-axis scanning REVO system

Non-Contact Measurement

CCD, OTP6M, LD50-Laser, LD60-Laser systems

Continuous Scanning Probes

SP80, SP600M, SP25 scanning probes

Auto Rotating Probes

PH9, PH10T, PH10M auto-rotating probe systems

Triggering Probes

MCP, MH8, MH20i, RTP20, TP20, TP200 trigger probes

Probe Changers

MCR20, SCR200, FCR25-L3, FCR25-L6 probe changers

Additional Accessories

MCG calibrating gauge
Rotary stage systems
Temperature sensors
