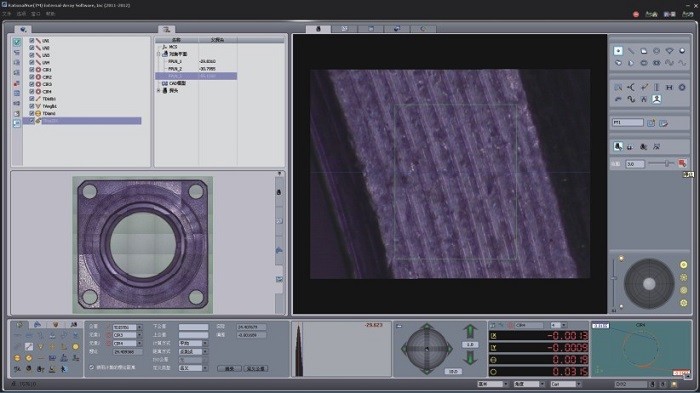

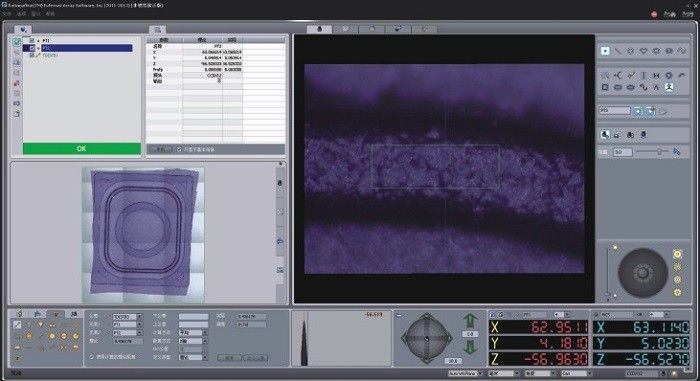

2D Vision Measurement Software with Grayscale and Color Filters
The Rational Vue 2D Measurement Software series provides universal and powerful 2D image measuring capabilities. It supports basic element measurement including points, lines, angles, circles, and distances. With outstanding motion control for automated machines, advanced edge detection functions, and easy programming, RationalVue ensures high measuring efficiency for mass production applications. Ideal for cell phones, plastic products, electronics, and other industries requiring mass production and quality control.
Key Features
Precision Machine Calibration
Advanced calibration capabilities including CCD length-width scale calibration, CCD auto-rotate/horizontal calibration, CCD lens coaxial calibration, and CCD pixel calibration. Multiple calibration methods maximize measurement accuracy. Lens distortion calibration dramatically enhances precision for large wide-angle lenses.
Burrs Filtering
Advanced filtering removes burrs and imperfections from measured products, eliminating convex or concave areas to ensure complete and accurate measurements.
Advanced Edge Detection
Captures fuzzy and rough edges easily, enabling true automation measurement capabilities.
Color Filtering
Set specific measuring colors while removing interference from other colors for precise measurements.
Grayscale Filtering
Remove white highlight edge effects and filter unmeasured edges to ensure weak edges are not affected by clearer edges.
Special Edge Processing
Advanced edge processing capabilities for various challenging measurement scenarios.
Complete Feature Measurement
Comprehensive measurement capabilities including points, lines, circles, arcs, ellipses, slots, rectangles, curve scanning, girth, and flaw area analysis. Includes form comparison with CAD nominal curves.
Powerful Edge Function
Advanced weak-edge algorithm enables measurement of weak-edge lines without special settings.
Optical Focusing
Advanced focus algorithm completes part focusing in 2-3 seconds with repeat focus accuracy of 0.003mm. Suitable for tolerance measurements including height and flatness.
Curve Scan & Form Error Analysis
Automatically tracks product edges to scan curve profiles. Compares with imported CAD nominal curves, calculates profile errors, and outputs graphical FormError reports.
Grid Board Measurement
Professional measuring tools specifically designed for grid boards, enabling easy measurement of grid lines. Ideal for solar energy and TV industries.
Multi-layer Segment Measurement
One-button multi-layer line measurement with user-selectable line options for complex measurement scenarios.
Advanced Sub-pixel Algorithm
International advanced sub-pixel algorithm dramatically increases measurement accuracy and repeatability.
Path Optimization
Optimizes measurement paths to the shortest possible routes, maximizing measurement efficiency and reducing operational costs.
Company Information
Our Clients & Agents
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company mainly produce?
A2: We primarily manufacture Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to Choose the Appropriate Specification?
A3: Our professional team will recommend suitable specifications based on your product variety and measurement requirements.
Q4: Do you accept customized service?
A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We have enhanced durability on breakable parts and maintain stable product quality.
