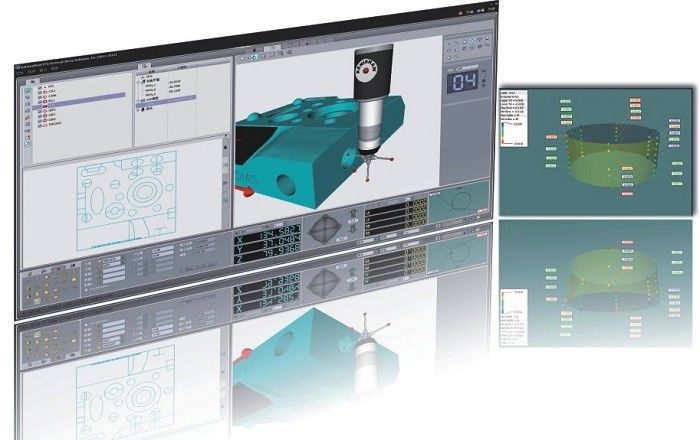

Integrated 2D/3D Metrology Software for Laser Scanner and CCD Measurement Systems
Compound 3D Measurement Software with 2D Measurement Probe Function and Laser Scanner
The Rational Vue 2D/3D Compound Measurement Software series provides universal and powerful 2D/3D measuring capabilities. It offers comprehensive measurement of basic elements including points, lines, angles, circles, distances, and more. The RationalVue series delivers exceptional motion control for automated machines, combined with robust edge detection functionality and simplified programming to ensure maximum measuring efficiency in mass production environments.
This advanced vision measuring software is ideally suited for cell phones, plastic products, electronics, and other industries requiring mass production and stringent quality control. The powerful 3D measuring functionality serves as an essential tool for complex parts requiring precise 3D dimensional measurement.
Key Features of RationalVue Software
- First software globally to integrate CAD functionality into video measurement systems
- Pioneering software that seamlessly combines CCD, probe, and laser technologies with free switching between measurement modes
- Comprehensive platform integrating 2D/3D measurement, data analysis, SPC, CAD reverse engineering, form error analysis, profile scanning, and offline simulation
- Offline simulation measurement capability for training and programming without physical equipment
3D/2D Composite Measurement Technology
RationalVue enables perfect coordinate, program, and data unification across CCD, probe, and laser systems. This allows product measurement with free switching between probes within the same coordinate system. The composite measurement approach reduces component assembly times and significantly enhances measurement efficiency while saving costs and reducing space requirements.
Advanced CAD Functionality with CMM Software Engine
- Import IGES, STEP (3D), and DXF formats for CAD comparison measurement
- Direct interface support for UG, ProE, Catia, Solidworks, and other major CAD platforms
- CAD positioning capabilities for precise alignment
- Guide programming feature that enhances programming efficiency by more than 2x
- Export CAD data in IGES and DXF formats for reverse engineering applications
Company Information
Our Clients & Agents
Frequently Asked Questions
Q1: Are you a factory or trading company?
A1: We are a factory and provide responses within 24 hours.
Q2: What does your company primarily manufacture?
A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.
Q3: How to choose the appropriate specification?
A3: Our professional team will recommend suitable measurement instruments based on your product variety and size requirements.
Q4: Do you accept customized services?
A4: Yes, we provide both standard machines and custom solutions tailored to specific customer requirements.
Q5: What is your warranty period?
A5: Our products come with a 1-year warranty. We maintain very stable product quality and have significantly improved durability on breakable components.
