3D Video Measurement Software / Measuring Software Revo 5 Axis Supported

Basic Information
Place of Origin: USA
Brand Name: External Array
Model Number: Rational DMIS
Minimum Order Quantity: 1
Price: Discussible
Packaging Details: Paper box
Delivery Time: 5 work days
Payment Terms: T/T
Supply Ability: 10 per month
Detail Information
Supporting 5 Axis Probes: Renishaw PH20 High Speed 5 Axis Probe, 5 Axis Scanning REVO Supporting Non-contact Devices: CCD, OTP6M, LD50-Laser, LD60-Laser
Supporting Motion Controller: UCC1, UCC2, UCClite, WPC, DEVA, TUTOR-P, MicroScribe Arm, Baces3D Arms, HEADER Line Laser Standard: DMIS
Supporting Auto Rotating Probe: PH9, PH10T, PH10M Supported Continuous Scanning: SP80, SP600M, SP25
High Light:

3d metrology software

,

video measurement software


Product Description



Coordinates Measuring Machine 3D Measurement Software Revo 5 Axis Supported



Introduction



Through years of development, the RationalDMIS is more and more accepted by the users. The unique click and drag operation mode and the powerful function is the known advantage in the coordinates measuring machine industry.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 0



Features



Simple operation interface, easy operation



User friendly operation interface



Avoiding the jamming situation caused by jump out windows.

Users do not need repeat entering operation.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 1



Click and drag inputting



All function are able to achieve by only clicking and moving the mouse.

Constructing, tolerance, and programming operation only need mouse click to achieve.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 2



Multiple innovative interface and widows



Rational quick interface, increase the efficiency of windows switching, tolerance calculating and element constructing.

Xmeas interface, offers more simple, intelligent, user friendly and personal measuring interface.

Online assistant, provides user friendly and intelligent support.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 3

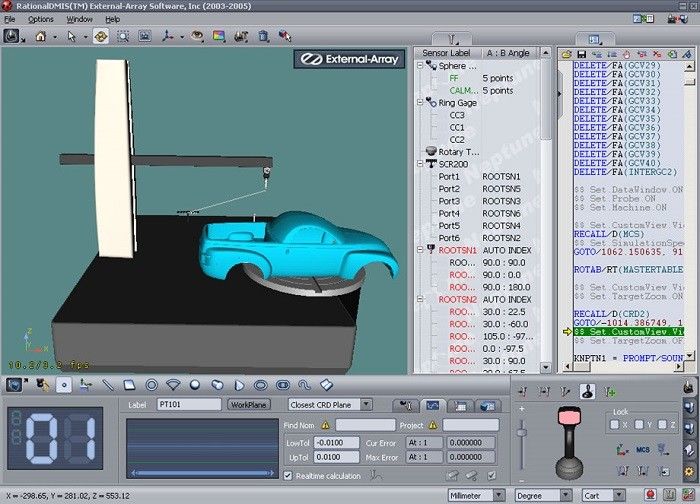

100% realtime graphical display



Full graphical display of building the machine model, creating touch probe, calibration, measuring, constructing, tolerance and outputting.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 4



Function of path simulation, crashing detecting, measuring plan increase make the measuring operational and predicable. Offers safer operation, minimize the risk of crashing caused by the unexperienced operation.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 5



Meeting the DMIS standard, fast programming.



Pure DMIS core, 100% meet the DMIS standard.



Integrated with common DMIS commands, function and macro.

Self-learning function, creating standard DMIS command automatically.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 6



Measuring based on target, image driving, to achieve fast programming.



Automatic recognize digital model theory element, fast building measuring program.

Click and measure, increase the efficiency.



Multiple graphical report output



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 7



The RationalDMIS is supporting multiple motion controller



UCC1, UCC2, UCClite, WPC, DEVA, TUTOR-P, MicroScribe arm, Baces3D arms, HEADER line laser.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 8



The RationalDMIS is supporting many touch probes / probe changer



High speed 5 axis: Renishaw PH20 high speed 5 axis probe, 5 axis scanning REVO

Non-contact: CCD, OTP6M, LD50-Laser, LD60-Laser...

Continuous scanning: SP80, SP600M, SP25...

Auto rotating probe: PH9, PH10T, PH10M

Triggering probes: MCP, MH8, MH20i, RTP20, TP20, TP200

Probe changer: MCR20, SCR200, FCR25-L3, FCR25-L6...

Others: MCG calibrating gauge, rotary stage, temperature sensors.



3D Video Measurement Software / Measuring Software Revo 5 Axis Supported 9
