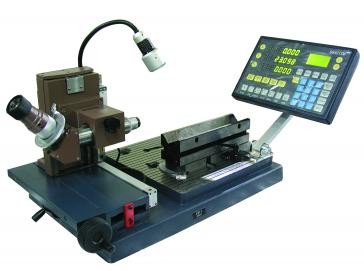

Optical Profile Projector Tool Measuring Machine with 0.001mm Resolution and Rotating Scale Range 0-360 Degrees for User-Friendly Operation

Basic Information

Place of Origin:	China
Brand Name:	UNIMETRO
Model Number:	UNIX11A/UNIX15

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	wood case
Delivery Time:	20 work days
Payment Terms:	T/T
Supply Ability:	5 per month

Get Best Price Contact Now

Detail Information

Resolution:	0.001mm	Accuracy:	(8+L/20)um
Rotating Scale Range:	0 - 360 Degrees	Rotating Scale Measuring Accuracy:	UNIX11A: 10', UNIX15: 6'
Max. Loading:	≦20kg
Highlight:	horizontal profile projector , profile projector machine

Product Description

Optical Profile Projector Tool Measuring Machine with User-Friendly Operation for Milling Tools

Tools Optical Profile Projector Tools Measuring Machine Milling Tools

Key Features

Stable open type cast iron working stage for fast and precise online measuring
X,Z axis using V type linear guide way with X axis precise ball screw driving for stable tool contour movement
X and Z axis equipped with protective covers
Rotatable V type working stage with rough number scale, locatable in any position within 90 degrees range
45 degrees detecting mode with advanced dividing scale technology for precise aiming
Freely adjustable supporting legs for convenient application
Digital readout with installing bracket for flexible unloading
LED or halogen illumination options available
UNIX11A model for rotary working stage pressing measuring with flexible stage rotation
UNIX11A features LED cold lighting illumination
X axis with V type accurate linear guide way using drive nut for transmission
Z axis using linear guide way and ball screw

Technical Parameters

Item	UNIX11A	UNIX15
Measuring range	150 x 50 mm	100 x 45 mm
Resolution	0.001mm
Accuracy	(8+L/20)μm
Magnification	0.5X \| 1X \| 2X
View field	φ30 \| φ15 \| φ7.5
Rotating scale range	0 - 360 degrees
Rotating scale measuring accuracy	10'	6'
Working stage accuracy	Grade 1
V block accuracy	Grade 1
Max. loading	≤20kg
Dimension(mm)	520 x 310 x 350	540 x 350 x 350
Additional Features	-	V block rotate for 90 degrees

Applications

The UNIX11A/UNIX15 series tool measuring machine is a production line instrument suitable for measuring milling tools, drillers front angle, back angle, blade width, and helical angle.

Product Gallery

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We primarily manufacture Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will recommend suitable measuring instruments based on your product variety and size requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We have enhanced product stability and improved breakable parts for reliable performance.
