Name: Rational DMIS 3D Measurement Software, 32/64-bit, with CAD Module and Graphical Display
Brand: Unimetro Precision Machinery Co., Ltd
SKU: Rational DMIS
Price: 20,500.00 USD
Availability: InStock

Detail Information

Operation:

100% Graphical Display

Construction Function:

Bisector, Parallel, Crossing, Vertical, Etc

Supporting 3D Drawing File Format:

IGES

Standard:

DMIS And ISO22093:2003 Standard

Highlight:

3d coordinate measurement machine

optical coordinate measuring machine

Product Description

Rational DMIS 3D Measurement Software, 32/64-bit, with CAD Module and Graphical Display

Advanced 3D Coordinate Measuring Machine Software

Rational-DMIS is an advanced 3D coordinate measuring machine software developed by External-Array Software, Inc. (US). The software complies with DMIS and ISO22093:2003 standards, as well as the German PTB standard, and has been approved by industry experts. Rational-DMIS is compatible with Renishaw UCC controllers using I++ standard and other control devices and software interfaces. It represents one of the software solutions supporting the highest level of DMIS standard.

Key Features

32/64-bit software architecture
Latest version software including CAD module
Supports various scanning devices with powerful functionality

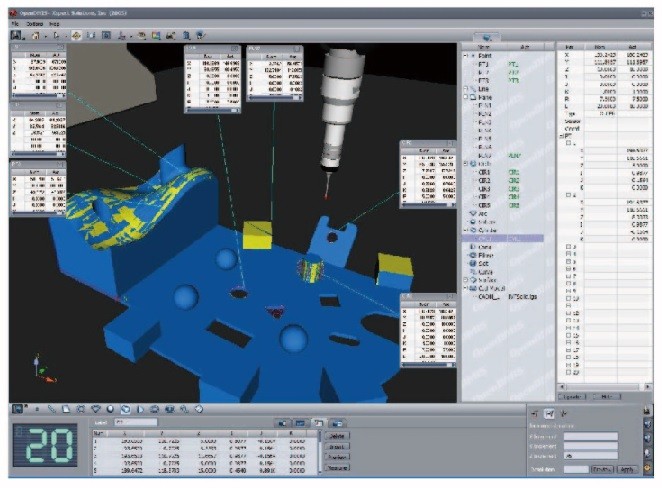

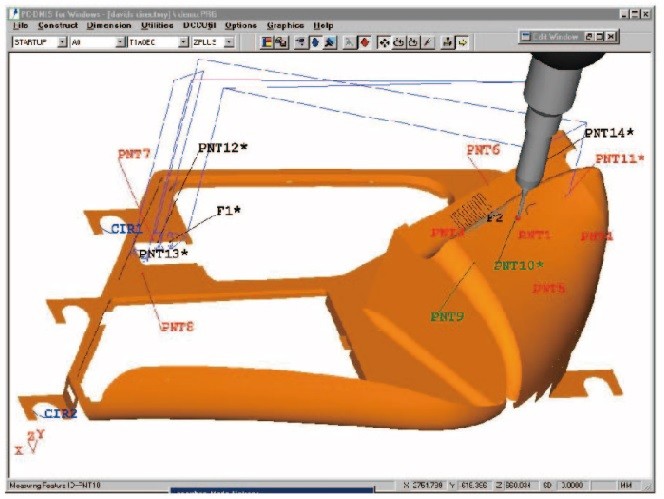

100% graphical display with real-time simulation
Unique operation interface with mouse click and drag functionality
Software learning mode eliminates text programming requirements
Intelligent self-learning measurement capabilities
Full CAD data compatibility
Complete geometrical elements measurement functions
Powerful geometrical elements construction capabilities
Comprehensive geometric tolerance calculations
IGES file building mold support and reverse engineering
Points group processing, construction, input and output
Curve measuring module
Multiple output report formats
Optional modules: propeller, gear, camshaft, tube, SPC, CCD, laser scanning

Application Examples

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company primarily manufacture?

A2: We specialize in producing vision measuring machines, coordinate measuring machines, CMM & VMM fixtures, and related equipment.

Q3: How to choose the appropriate specification?

A3: Our professional team will recommend suitable measurement instrument specifications based on your product variety and measurement requirements.

Q4: Do you accept customized services?

A4: Yes, we provide both standard machines and customized solutions tailored to specific customer needs.

Q5: What is your warranty period?

A5: Our products come with a 1-year warranty. We maintain stable product quality and have enhanced durability on critical components.

Tag:

Place of Origin:	US
Brand Name:	External Array
Model Number:	Rational DMIS

Minimum Order Quantity:	1
Price:	Discussible
Packaging Details:	Paper box
Delivery Time:	5 work days
Payment Terms:	T/T
Supply Ability:	100 per month
