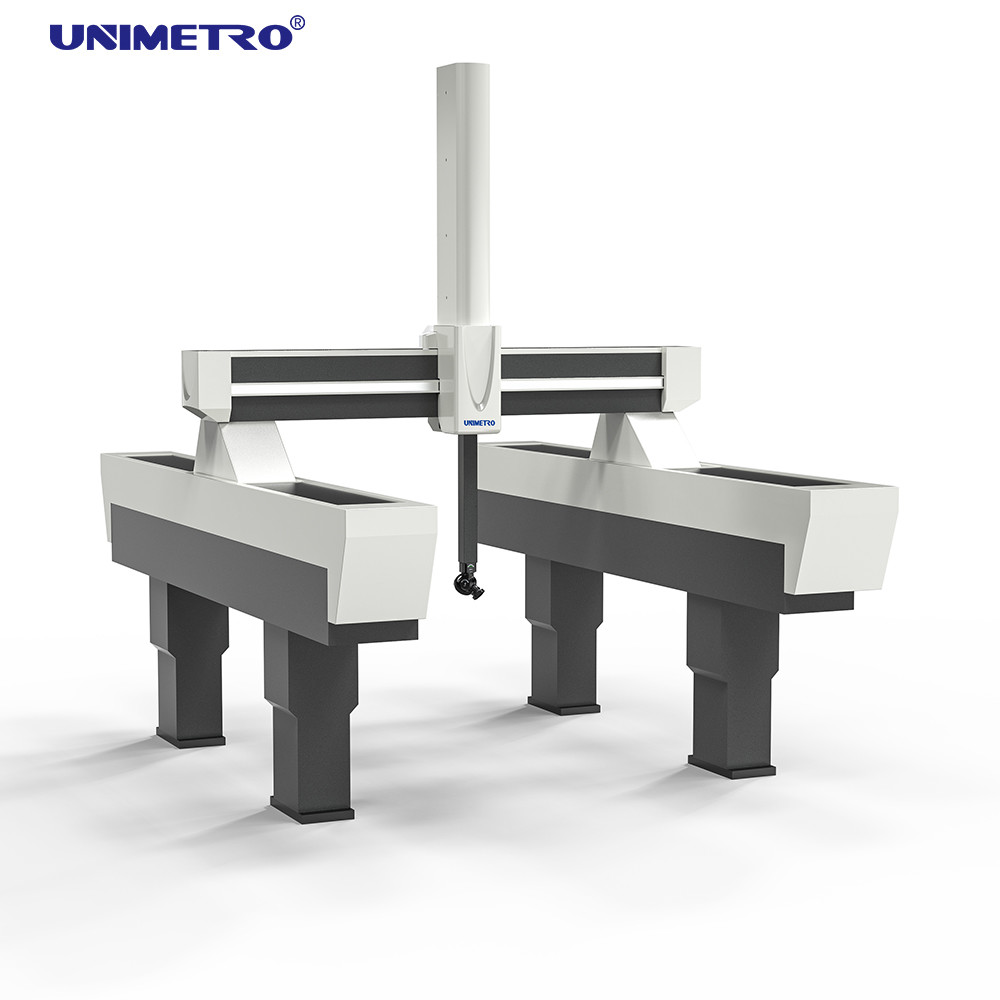

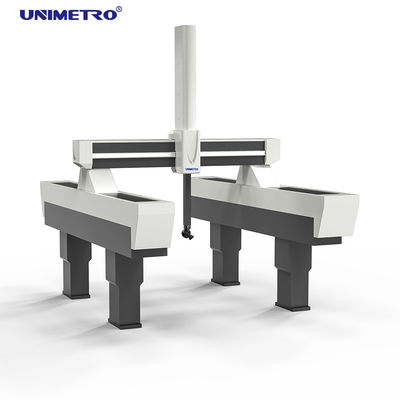

1.1 µm Ultra-High Precision 3D Coordinate Measuring Machine

The Metroking series 3D coordinate measuring machine represents the culmination of extensive experience in high-accuracy measuring machine development and manufacturing. Approved by multiple industries, this series has become a benchmark model in the high-precision measurement industry.

Ideal for high-accuracy workpiece measurement and curve scanning, the Metroking series is also suitable for official institutions and standard piece measurement applications.

• Constructed from granite material with finite element design and gantry structure
• Full-closed framing structure with granite cross beam, integrated machine base, column working stage, and Z axis
• Features high stability, low deformation, and outstanding thermal stability

• Three-axis system using advanced soft steel wire synchronous gear belt drive
• Noise-free operation with fast positioning and long life cycle
• Y-axis utilizes DUO dovetail guide way drive system
• Center driving with centrally installed high-accuracy linear scales
• Minimizes axis movement offset and Abbe error

• High-power servo motors for superior motion control performance
• Enhanced acceleration, braking, and rapid running capabilities
• Advanced air system with Z-axis air balance for improved positioning accuracy
• Three-stage precise filter system for extended guide way life
• High-performance power cable and towline for electronic stability

Advanced Renishaw UCC series controller provides universal control for the 3D coordinate measuring machine.

The Metroking series is compatible with full-line trigger probes, contact-type scanning probes, laser line scanning probes, high-accuracy point scanning heads, and LV series high-resolution CCD digital optical vision measuring heads. This enables high-accuracy complicated curve high-speed scanning (reverse engineering) and micro-dimension high-accuracy non-contact measurement.
