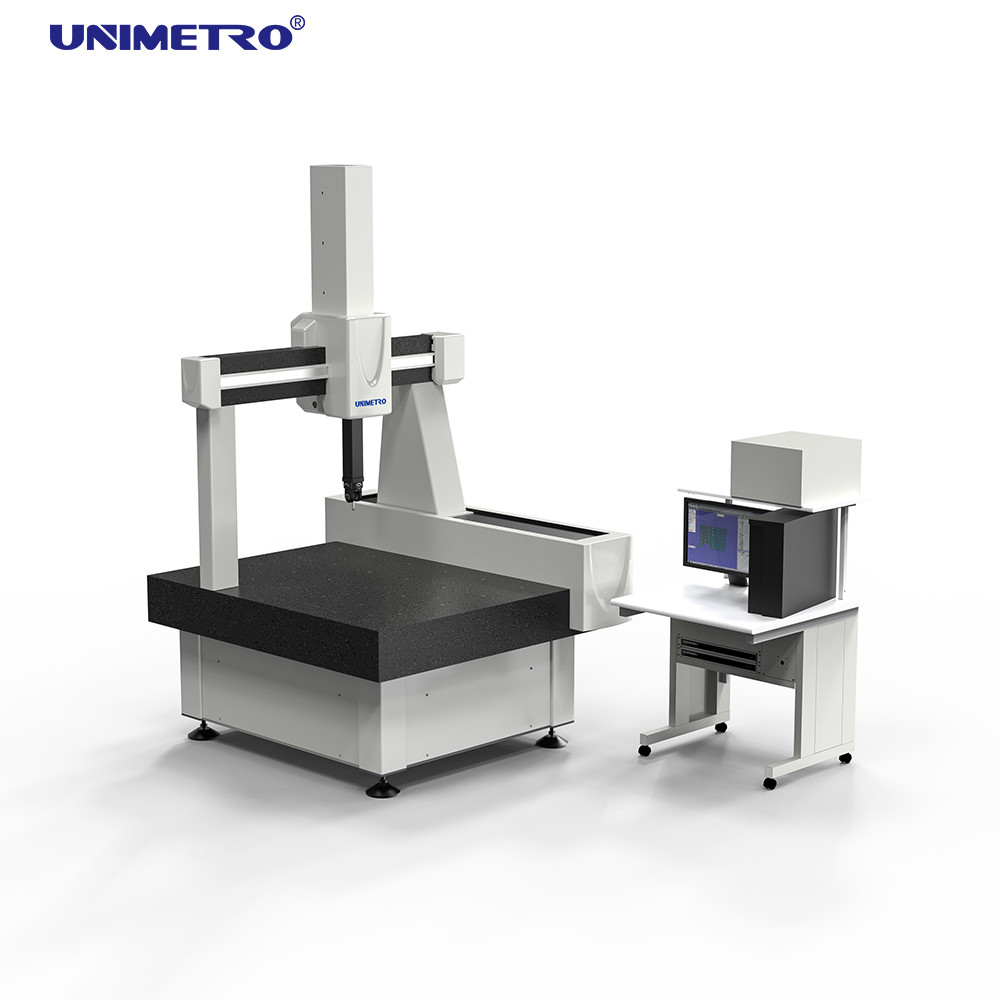

Semi-Automatic Helium Type 3D Coordinate Measuring Machine with 500 mm/s Traverse Speed
Helium Type 600*600*600mm High Precision CMM Machine
"Helium" is characterized by the highest precision machine which is UNIMETRO wholly developed and designed. Each part is selected strictly during manufacturing to ensure perfect and timely assembly. The acceptance of measuring machines takes place according to ISO 10360-2, using two standardized acceptance procedures. All measuring machines are measured with an ultra precision laser and tested with DKD-certified solid measures such as gauge blocks and ball plates. The result is a high quality, high precision machine featuring German Technology.
Technical Parameters
| Parameter |
Specification |
| Measuring Area |
X=610mm, Y=610mm, Z=610mm |
| Overall Dimension |
1350 × 1580 × 2680 mm |
| Maximum Part Weight |
1000kg |
| Machine Weight |
1950kg |
| MPEe |
≤ 1.8+L/300 (μm) |
| MPEp |
≤ 2.5μm |
| Scale Resolution |
0.5μm |
| Maximum 3D Speed |
500mm/s |
| Maximum 3D Acceleration |
900mm/s |
Key Advantages
High Repeatability
One-way repeatability ≤ 1μm
Patent Double Passive Vibration Damping
Integrated directly in the machine frame, allowing suitable positioning close to production without requiring special foundations in most cases.
High Quality Granite Worktable
Made with high precision, heavy and stable natural granite from "Mount TAI" to support vibration damping and improve performance.
Enclosed Guides in All Axes
Protects guide ways from damage, dirt, and direct thermal influences, making it suitable for dusty environments.
Friction "Automatic Rectifying" Transmission
Uses "fixed + micro suspension" structure to ensure transmission is parallel with guide way, making the machine largely maintenance-free.
Imported Key Parts
All key parts (servo motor, transmission system, pneumatic system, etc.) are from famous brands for optimal precision and service life.
RENISHAW Optical Scale
High accuracy optical scale with 0.05μm resolution from the industry-leading brand.
Air Bearing Surround Guide Way
4-sided surrounded structure with multiple air pressure regulators and annular pneumatic bearing design for instrument stability during movement.
Small Holes Technology
Air consumption: 150NL/Min. Creates condensate zone between air bearing and guide way to offset heat from motion friction, improving thermal stability.
Software
Rational-DMIS - A newly developed large-scale integrated 3D measurement software package. Developed with full and native DMIS kernel (ISO 22093:2003 standard), it meets the requirements of both beginners and advanced users while serving as a model for CMM measurement software standardization.
Probe Function
Probe Head: MH20i Manual Head by RENISHAW
| Parameter |
Specification |
| Repeatability of Position |
+0.5 μm |
| Positioning Steps |
15° |
| Rotating Axis |
+180° |
| Temperature Range |
10-40℃ |
Probe: TP20 SF Module; M2 Probe Assembly
| Number |
Name |
Specifications |
Quantity |
| A-5004-7585 |
Probe Extension Rod |
10mm |
2 |
| A-5004-7586 |
Probe Extension Rod |
20mm |
1 |
| A-5000-7806 |
Ball Probe |
Φ1×10mm |
1 |
| A-5000-3603 |
Ball Probe |
Φ1×20mm |
2 |
| A-5000-3604 |
Ball Probe |
Φ1×10mm |
2 |
| A-5000-4161 |
Ball Probe |
Φ1×20mm |
1 |
| A-5000-2285 |
Ball Probe |
Φ1×50mm |
1 |
|
Probe Spanner |
|
2 |
| Total: 8 Types, 12 pieces |
