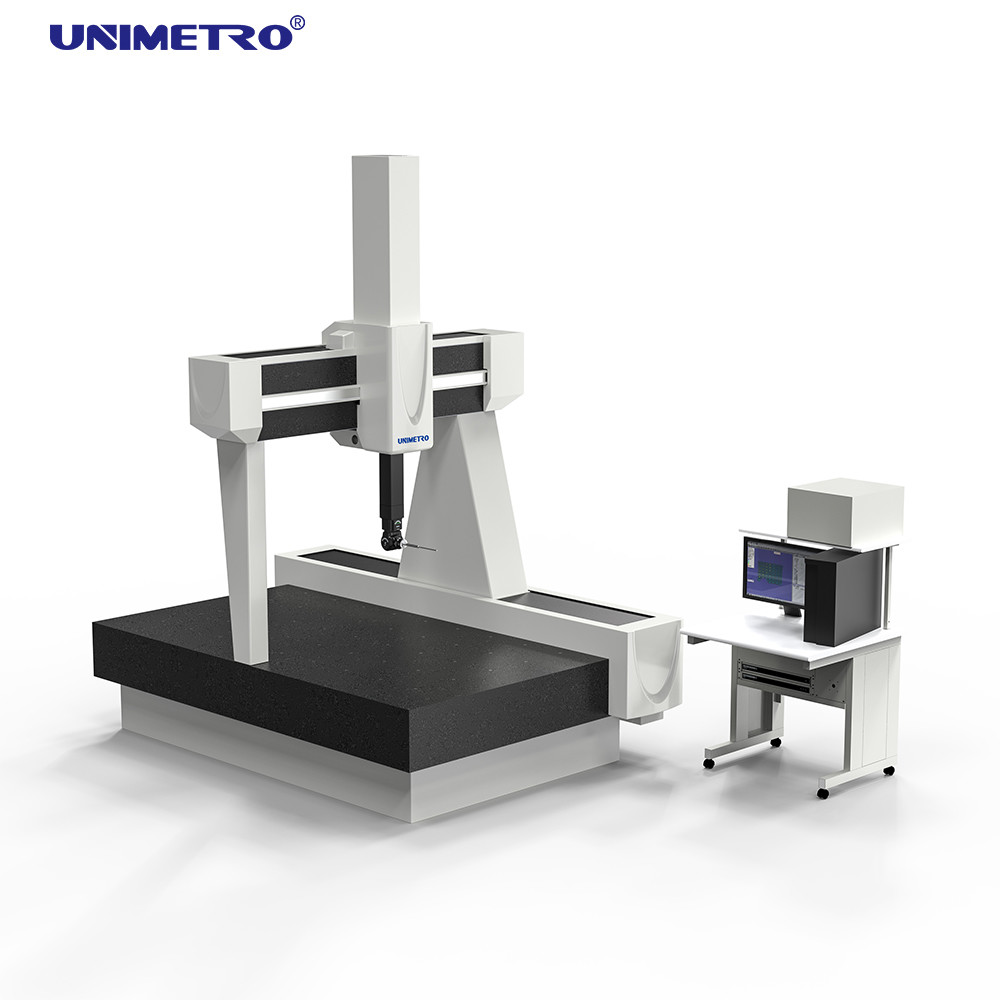

3D Coordinate Measuring Machine with Large Measuring Range

• Navigator series gantry type 3D coordinate measuring machine is ideal for accurate inspection of enormous parts in automotive, aviation, marine, and large mold industries
• Advanced structural design ensures high accuracy, stability, rigidity, and reliable performance even in workshop environments
• Multiple safety devices ensure safe operation with automatic temperature compensation and geometric error compensation throughout the measuring space
• DUO-Linear scales and DUO axis driving system design provides high reliability and performance with simple, smart structure
• Compatible with Renishaw trigger probes, contact scanning probes, LS series laser line scanning heads, and high accuracy laser point scanning probes for complex curve high-speed scanning applications (Reverse engineering)

This machine is primarily used for measuring cabinets, frames, gears, cams, worm gears, worms, blades, curves, curved surfaces, and other components in machinery, automotive, aviation, military, furniture, tool prototypes, and various small to medium-sized parts and mold industries. It is also applicable in electronics, hardware, and plastics industries for precise detection of workpiece dimensions, shape, and geometric tolerances, enabling part inspection, shape measurement, and process control tasks.

The Navigator series 3D coordinate measuring machine is widely used in heavy and high-precision industries including automotive, aviation, marine, and large mold manufacturing.
