Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries

Basic Information
Place of Origin: China
Brand Name: Unimetro
Model Number: RANGER600
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: Wooden case+ vacuum package
Delivery Time: 15 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 50 sets per month
Detail Information
Applications: Vertical, Taper, Cutter Head, Special-shaped Knife Warrenty: 12 Months
Lineat Scale Resolution: 0.1um Mode: Manual Or Automatic
Working Distance: 90mm Service: OEM, ODM

Product Description

Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries







Descrition

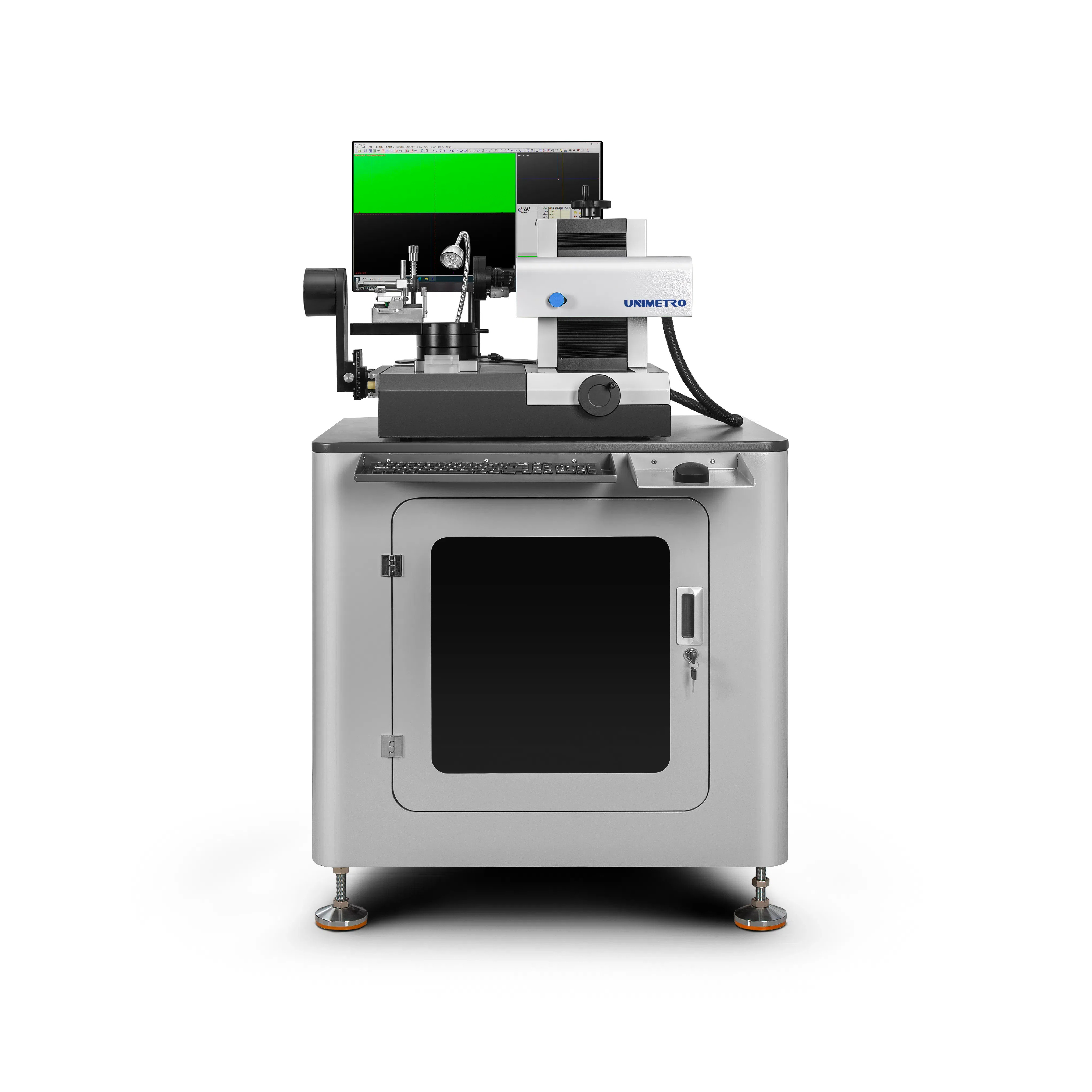

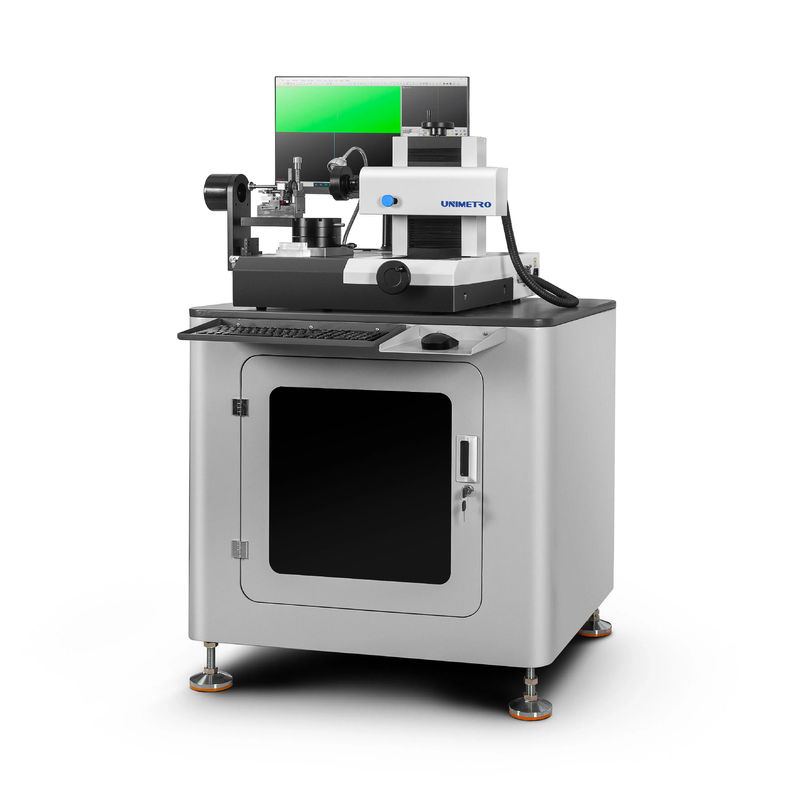

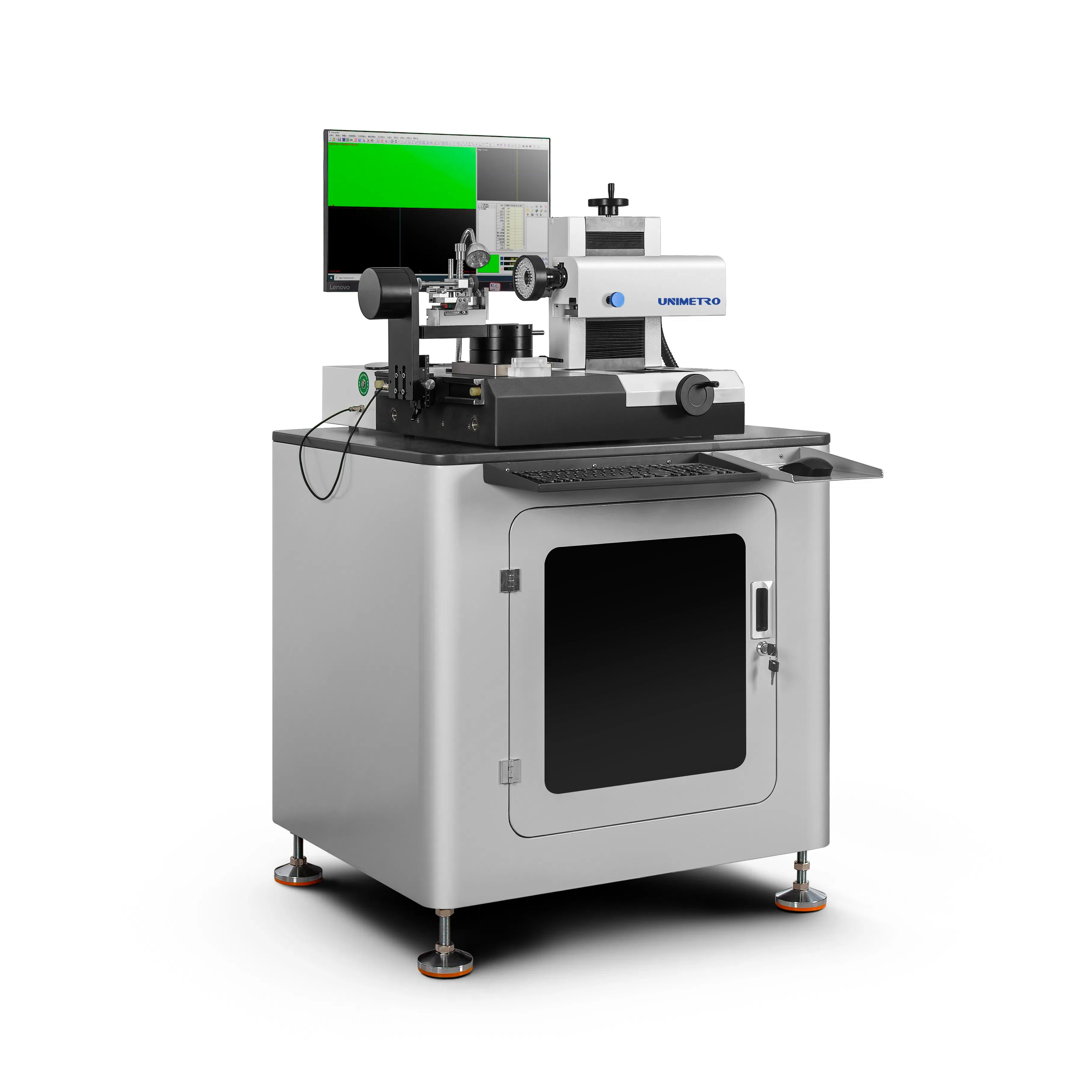

The UNIMETRO RANGER600 Tool Inspection System is the universal measuring machine for drills, milling cutters and counters and countersinks under a Flexible illuminating system. Thanks to the compact design and great stability, the RANGER600 can be employed in the metrology room, receiving inspection, or directly in production.



Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 0


Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 1Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 2



Parameters



Product name Multi-Function Tool Inspection Machine For Different Shape Cutting Tools
Model Ranger 600
X axis travel 80mm
Y axis travel 60mm
Z axis measuring range 60mm
Max tool diameter 20mm (optional 30mm)
Max tool length 200mm (optional 350mm)
Working distance 90mm
Lens 0.7X-4.5X dented zoom lens
Camera 5MP HD camera
Linear scale resolution 0.1um
Magnification 12.6X-79.2X/25.2X-158.4X(optional)
Field of vision 27*20mm-43*33mm/13.5*10mm-2.3*1.6mm (Optional)
Accuracy X ~ Y, (2.5 + L / 100)μm , L is the measured length
PC Windows 10 OS, with 24" LCD monitor
Illumination system 8 sections LED ring light, contour light and flexible auxiliary light, all software control and programmable.
Input format DXF files
Output format EXCEL, DXF













Accessories



Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 3
Free angle auxiliary light Contour light module

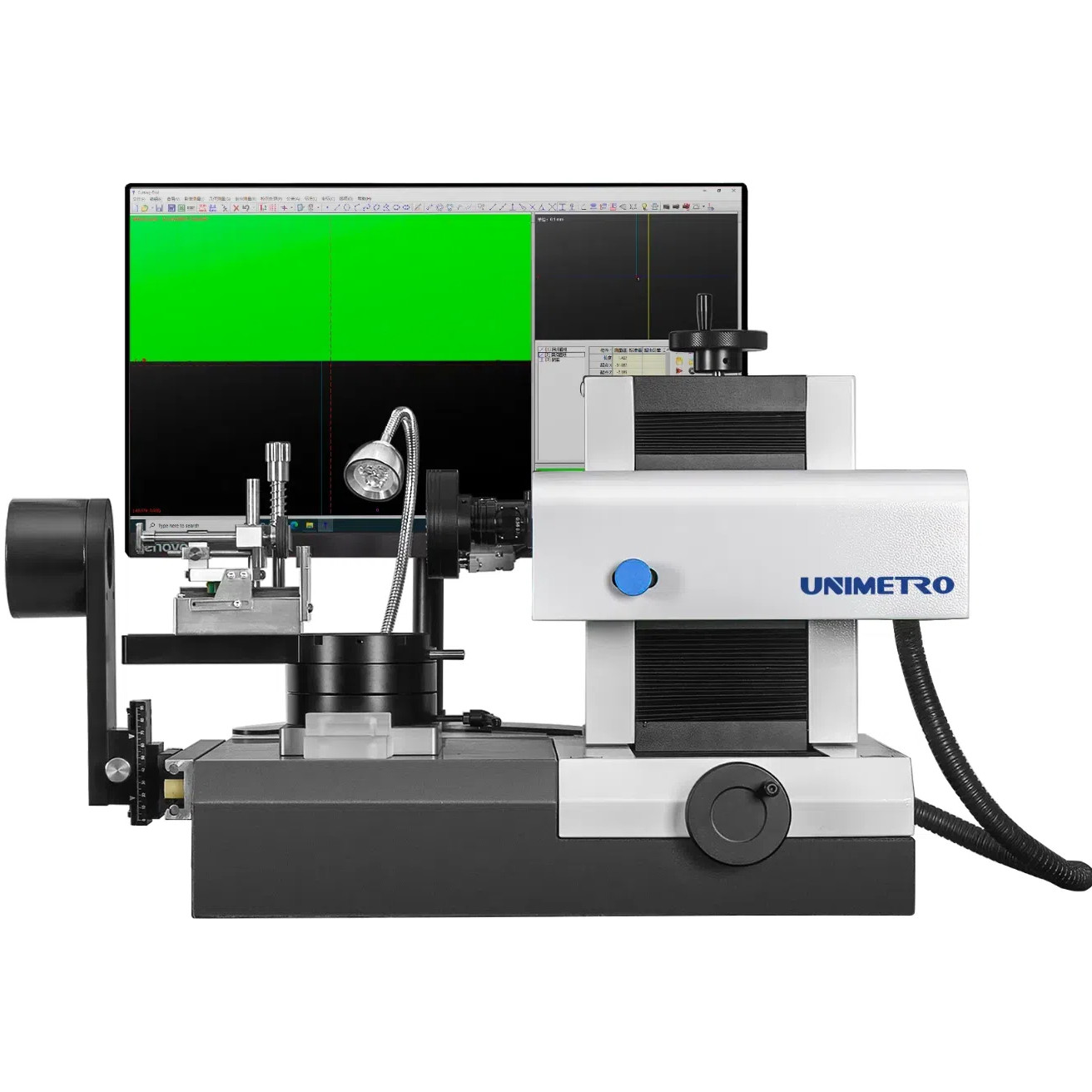

A dimmable additional light is available on a flexible arm. Which helps the users to get a local enhanced image. This is movable along the X-axis direction offers the best image and sharp edge of the object views to the user when measuring the contour of the tool.





Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 4
Base table Tools holder

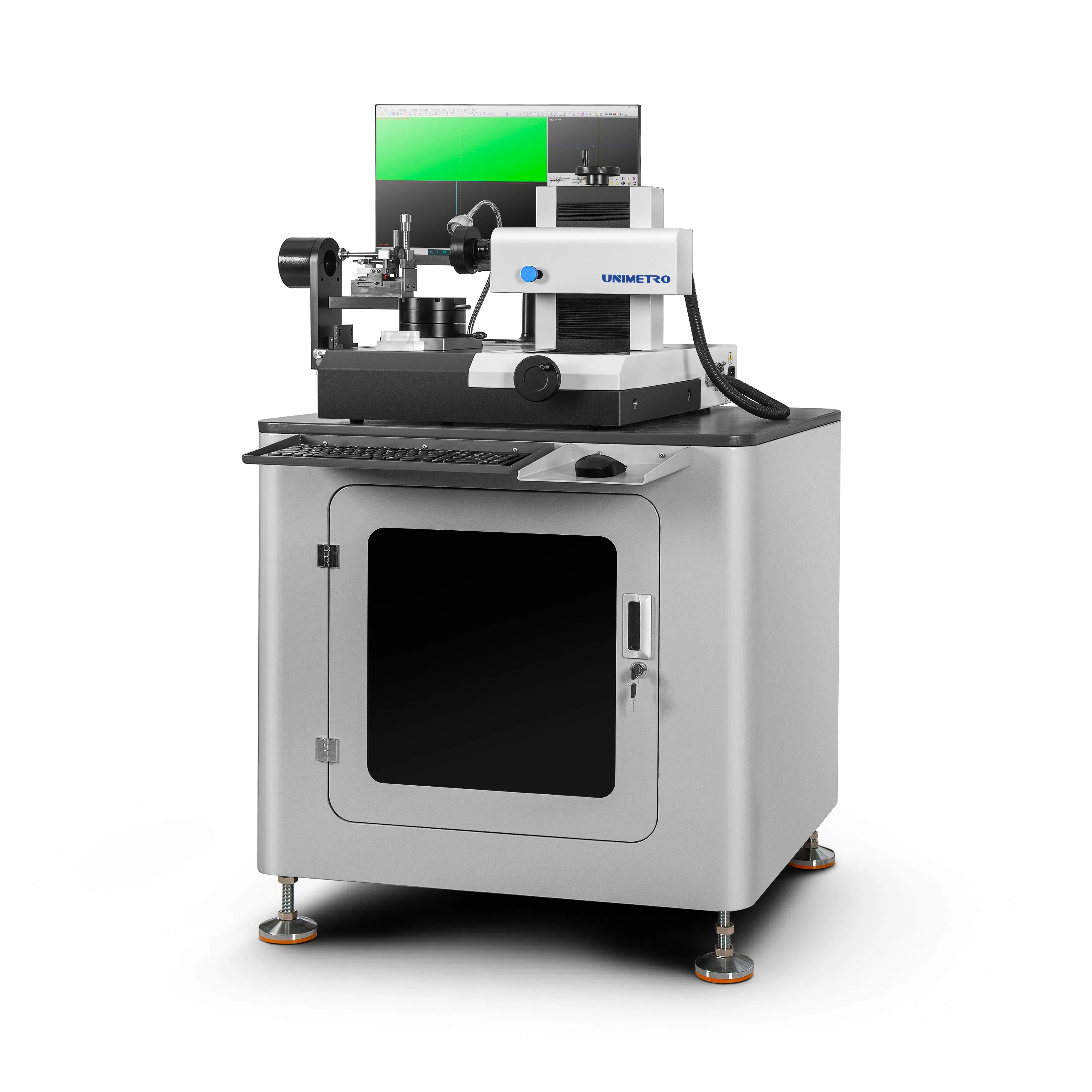

Solid standing work station with practical and open-view storage space for storage of materials and tools.
A multiple-section tools holder is embedded at the side of the machine. Users can hold all the tools in order for preparation to avoid confusion.




Features


1. Advanced Design
﹥Ergonomic design and solid construction.
﹥HD image capturing and display combination, also microscope magnification level is optional.
﹥Stable and accurate V block for easy tools holding and alignment.
﹥Mechanical fixed measuring angles of 0 degrees and 90 degrees are available on the rotary stage.
﹥High accuracy encoder is embedded in the rotary table, offers precise angle location for users.
﹥Multiple section programmable LED ring light for surface illumination, also including contour lighting and free angle auxiliary light for standard features.
﹥SMARTOOL measuring software offers specific measuring function for cutting tools.
﹥Automatic edge detection, fast angle measurement with reticle, CAD element comparison functions are available.

2. Multiple Angles Measuring
For a more fast and precise tools angle location during the measuring process, the rotary table of the RANGER600 offers 2 mechanical fixed angles, 0 degree and 90 degrees. At the 0 degree position users are able to measure Tool End, Tool End - Center shaft, Tool End - front angle, etc. And 90 degrees position is available for Helix angle, Axial Front angle, First Rear angle, Second Rear angle and Tilting Edge angle, etc.

Optical Cutting Tool Inspection System Optical Used To Ensure The Accuracy Quality, And Safety Of Tools Used In Various Industries 5

0 degree 45 degrees 90 degrees
