Detail Information

Power Voltage:	220V	Air Pressure:	0.7-1.0Mpa
Filter Accuracy:	0.3 Um	Air Supply:	0.12-0.45m³/min
Working Temperature:	18-22°C	Hourly Temperature Cycle:	1 °C/H
Max 3D Acceleration:	900mm/s	Max 3D Speed:	520mm/s
Highlight:	Mold Industry 3D Measuring Machine , 0.1um Resolution 3D Measuring Machine , 220V 3D Coordinate Measuring Machine

Product Description

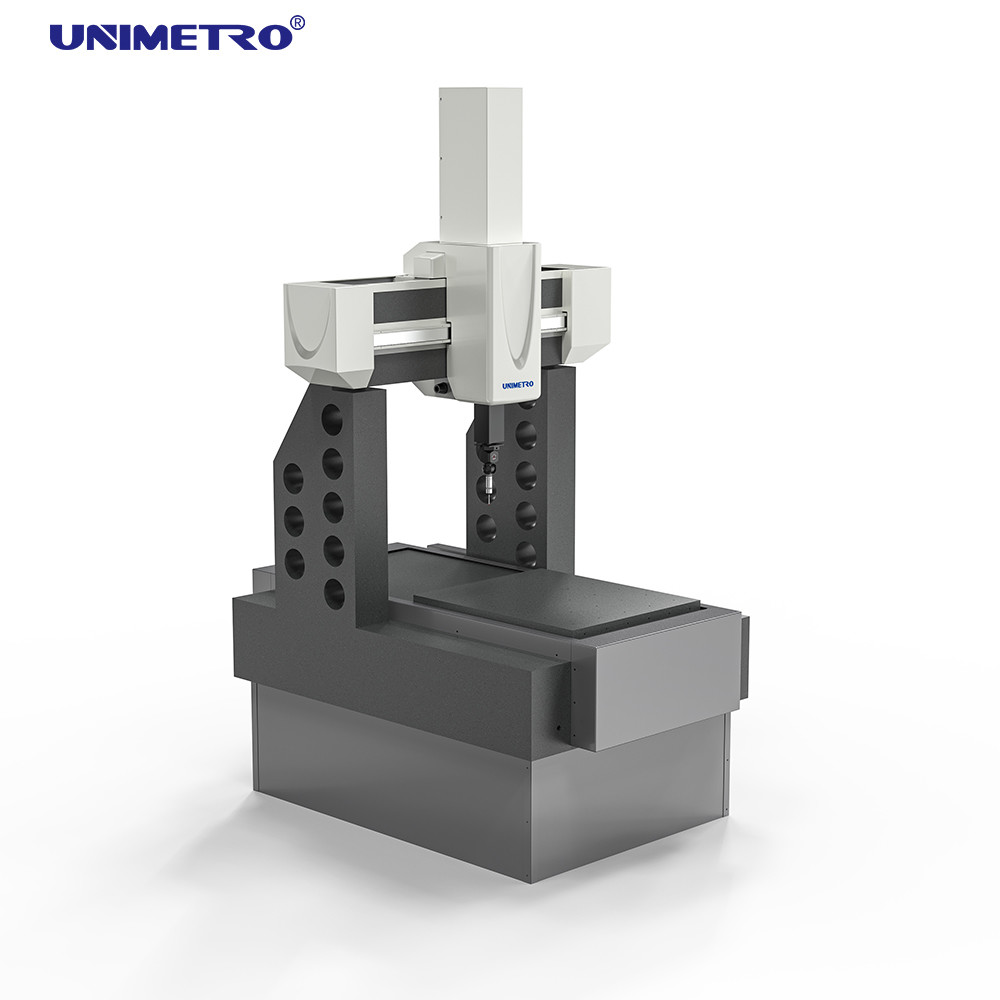

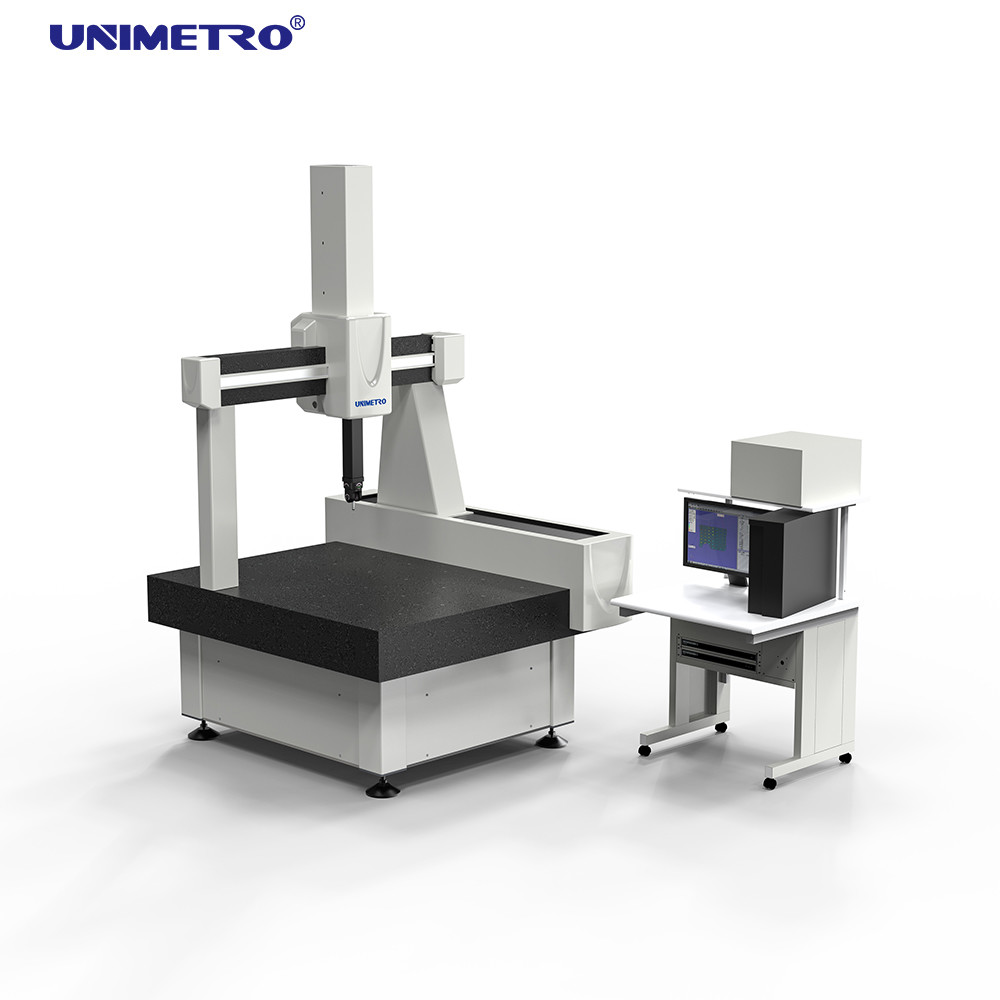

3D Coordinate Measuring Machine for Mold Industry with Powerful Software and 0.1 µm Resolution

Product Overview

"Helium" represents the highest precision measuring machine wholly developed and designed by UNIMETRO. Each component undergoes strict selection during manufacturing, ensuring perfect and timely integration during assembly. All measuring machines are accepted according to ISO 10360-2 standards, utilizing two standardized acceptance procedures with ultra-precision laser measurement and DKD-certified solid measures.

Technical Parameters

Parameter	Specification
Measuring Area	X=710mm, Y=1016mm, Z=610mm
Overall Dimension	1460 × 1800 × 2700 mm
Maximum Part Weight	1000kg
Machine Weight	2380kg
MPEe	≤ 1.8+L/350 (μm)
MPEp	≤ 2.3μm
Scale Resolution	0.5μm
Maximum 3D Speed	520mm/s
Maximum 3D Acceleration	900mm/s

Key Advantages

Patent double passive vibration damping
High quality granite worktable
Enclosed guides in all axes
Friction "automatic rectifying" transmission
Imported key parts
RENISHAW optical scale
Air bearing surround guide way in all 4 sides
Small holes technology

Software Features

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package. Designed to accommodate both beginners and advanced users, it has become a model for CMM measurement software standardization. Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which complies with ISO standard (ISO 22093:2003).

Probe System Specifications

Probe Head: MH20i manual head by RENISHAW

Feature	Specification
Repeatability of position	+0.5 μm
Positioning steps	15°
Rotating axis	+180°
Swing axis	0° - 90°
Total number of positions	140mm
Operational temperature	10-40℃

Probe: TP20 SF module & M2 probe assembly

Number	Name	Specifications	Quantity
A-5004-7585	Probe extension rod	10mm	1
A-5004-7586	Probe extension rod	20mm	2
A-5000-2280	Probe extension rod	240mm	1
A-5000-7805	Ball probe	Φ0.7×10mm	2
A-5000-7806	Ball probe	Φ1×10mm	2
A-5000-3603	Ball probe	Φ2×10mm	2
A-5000-3604	Ball probe	Φ3×10mm	2
A-5000-4161	Ball probe	Φ4×10mm	1
A-5000-2286	Ball probe	Φ5×10mm	1
	Probe spanner		2
Total:		10 Type	16pc

Company Information

Our Clients & Agents

Frequently Asked Questions

Q1: Are you a factory or trading company?

A1: We are a factory and provide responses within 24 hours.

Q2: What does your company mainly produce?

A2: We specialize in Vision Measuring Machines, Coordinate Measuring Machines, CMM & VMM fixtures, and related equipment.

Q3: How to Choose the Appropriate Specification?

A3: Our professional team will advise you on suitable specifications based on your product variety and measurement requirements.

Q4: Do you accept customized service?

A4: Yes, we provide both standard machines and customized solutions tailored to customer needs.

Q5: What is your warranty period?

A5: Our product warranty period is 1 year. We have improved breakable parts and maintain stable product quality.
