Product Name: Ceramic Beam Design CMM Coordinate Measuring Machine Wtih Higher Precision Model: Neon
MPEe: ≤ 1.2+L/350 (μm) MPEp: 1.2μm
Waranty: 12 Months Advantage: High Accuracy
High Light:

Coordinate Measuring Machines And Systems

,

High Precision Coordinate Measure Machine

,

CMM Coordinate Measure Machine


Product Description



Accuracy 1.2um High Precision 3D Measuring Machine CMM Coordinate



Product overview

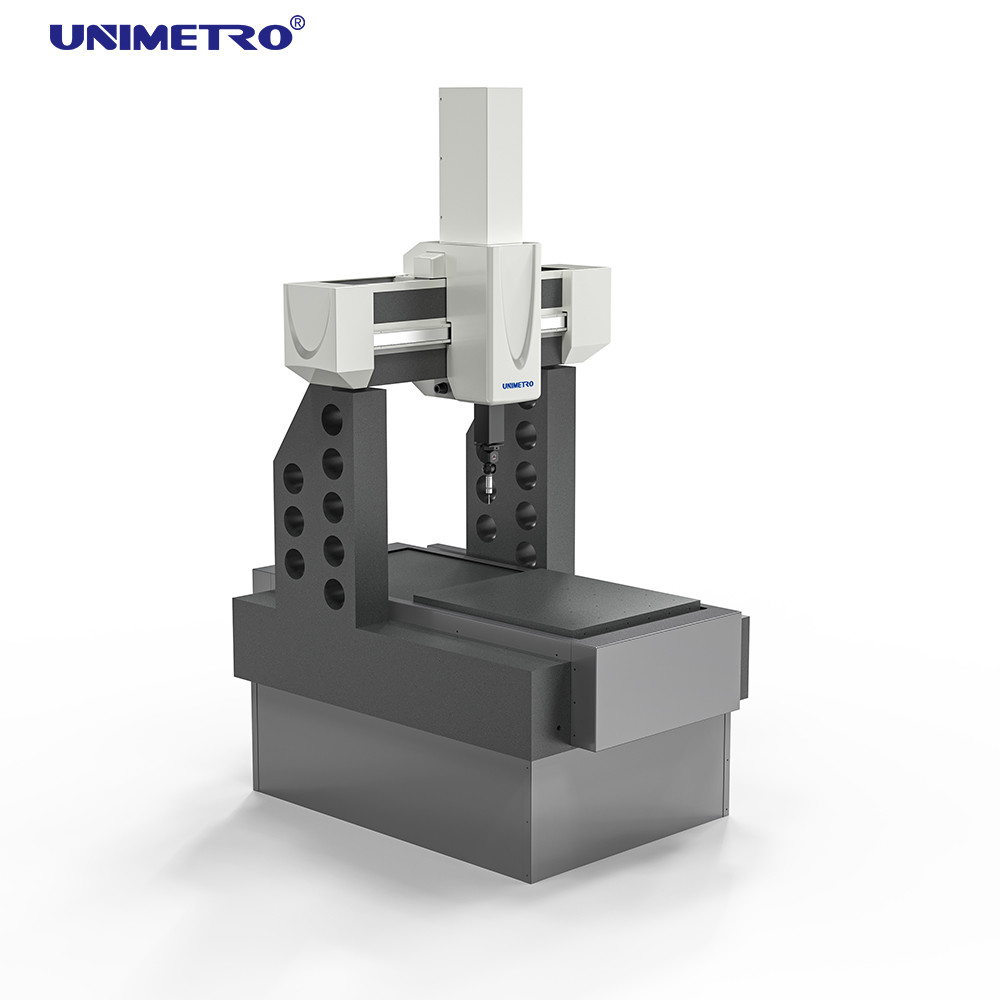

“The Neon series coordinate measuring machine adopts innovative ceramic design to achieve ultra-high-precision scanning and detection capabilities on the current market. Particularly suitable for the application needs of high-precision products in the electronics, automotive and aerospace fields. It is a unique and excellent three-coordinate that can be equipped with multiple three-coordinate probes.

TECHNICAL PARAMETERS

Product name Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection
  Travel range (mm) Accuracy (um)
Ne series X Axis Y Axis Z Axis MPEe MPEp
600.700 600-1000 600 0.9+L/350um 0.9um
800 800-1500 700
1000 1000-3000 800
1200 1500-4000 1000
Software system Measuring SW Rational-DMIS Advanced version (CAD)
Manual Manual+disk
Control system &probe system Include the joystick RENISHAW control system, include MCU joystick
Probe set RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...
Probe stylus RENISHAW M2 M3 stylus





Typical application


· Automobile engine and gearbox parts
· Aviation blades, engines and aircraft parts
· General Precision Engineering·
· Pharmaceutical Manufacturing

Features

Working platform High-quality granite platform, precision dovetail guide rail
The granite workbench is the support of the whole machine, and its quality affects the overall performance of the machine. The platform is made of granite, combined with precise dovetail guide rails, which effectively reduces the vibration of the measuring machine and improves the performance of the whole machine.
Fully enclosed three-axis guide rail, ceramic beam, spindle:
The X and Z axes are made of ceramic material, which is not easy to rust, has good rigidity, smaller thermal expansion coefficient and higher precision!
Base bracket dual passive damping mechanism:
The three-coordinate measuring machine is basically used in the production workshop, and it is inevitable that there will be vibrations generated by nearby machine tools or transport vehicles, which will have a fatal impact on the accuracy of the three-coordinate. Making an earthquake-resistant foundation is a basic idea, which will add additional costs and troubles. Our three-coordinate support adopts a double passive damping structure to prevent the influence of low-frequency vibration, which greatly ensures the accuracy of measurement and can reduce the trouble of earthquake-resistant foundation measures.

Software

Rational-DMIS is a newly developed large-scale comprehensive three-dimensional measurement software package. The development and design of the software not only take into account the requirements of beginners for easy learning and use of the software and the requirements of advanced users for software functions, but more importantly, it becomes a model and standardization of the three. Coordinate measurement software.
Rational DMIS programs prior to DMIS version 5.0 were designed using a full native DMIS kernel, which is quite different from so-called "DMIS-capable" (kernel not DMIS). As we all know, DMIS has become an ISO standard (ISO 22093:2003)
