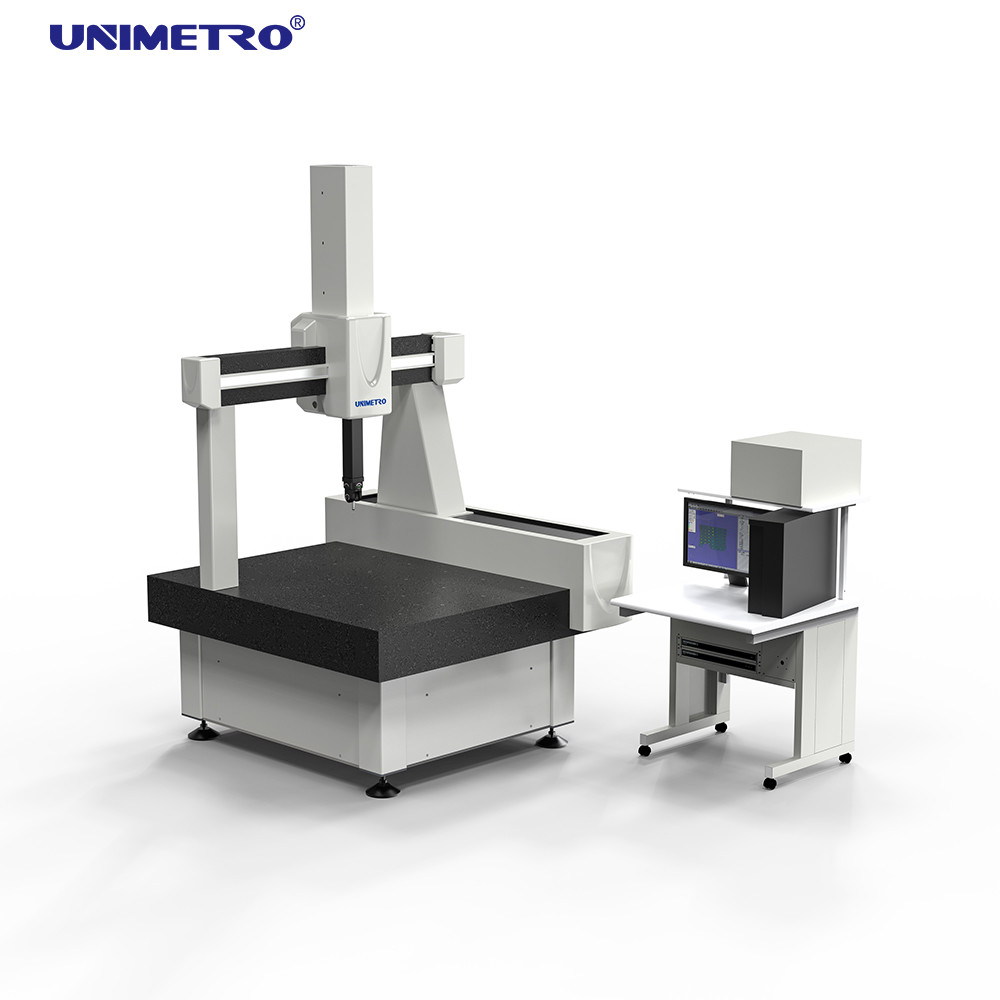

Name: 3D Coordinate Measuring Machine Featuring Ceramic Beam Construction for High Precision
Brand: Unimetro Precision Machinery Co., Ltd
SKU: Neon
Price: 20,500.00 USD
Availability: InStock

Detail Information

Product Name:	Ceramic Beam Design CMM Coordinate Measuring Machine Wtih Higher Precision	Model:	Neon
MPEe:	≤ 0.9+L/350 (μm)	MPEp:	0.9μm
Waranty:	12 Months	Advantage:	High Accuracy
Highlight:	Ceramic Beam Coordinate Measuring Machines , High Precision 3D Coordinate Measurement Machine , Ceramic Beam 3D Coordinate Measurement Machine

Product Description

3D Coordinate Measuring Machine Featuring Ceramic Beam Construction for High Precision

High Precision 3D Coordinate Measuring Machine - 12 Months Warranty

Product Overview

The Neon series coordinate measuring machine adopts innovative ceramic design to achieve ultra-high-precision scanning and detection capabilities. Particularly suitable for the application needs of high-precision products in the electronics, automotive and aerospace fields. This unique three-coordinate system can be equipped with multiple three-coordinate probes.

Technical Parameters

Series	Travel Range (mm)	Accuracy (um)
Product Name	Gantry Type Coordinate Measuring Machine CMM For Automobile Inspection
Ne Series	X: 600-1000, Y: 600, Z: 600-700	MPEe: 0.9+L/350um, MPEp: 0.9um
800 Series	X: 800-1500, Y: 700	-
1000 Series	X: 1000-3000, Y: 800	-
1200 Series	X: 1500-4000, Y: 1000	-
Software System	Rational-DMIS Advanced version (CAD)
Control System & Probe System	Includes joystick, RENISHAW control system with MCU joystick
Probe Set	RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M
Probe Stylus	RENISHAW M2 M3 stylus

Typical Applications

Automobile engine and gearbox parts
Aviation blades, engines and aircraft parts
General Precision Engineering
Pharmaceutical Manufacturing

Key Features

Working Platform

High-quality granite platform with precise dovetail guide rail. The granite working platform serves as the foundation of the machine, significantly impacting overall performance. The platform's granite material, combined with precise dovetail guide rails, effectively reduces vibration and enhances machine performance.

Three-Axis Guideway

Fully enclosed ceramic beam and spindle construction. Both X and Z axes feature ceramic components that are rust-resistant, offer excellent rigidity, and provide smaller thermal expansion coefficients for higher accuracy.

Base Bracket

Dual passive damping mechanism designed for production plant environments. This innovative structure prevents the influence of low-frequency vibration from nearby machinery or transport vehicles, ensuring measurement accuracy while reducing the need for additional earthquake-proof foundation measures.

Software System

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package designed to accommodate both beginners and advanced users. The software is developed with a full and native DMIS kernel following DMIS version 5.0 standards, making it a model of CMM measurement software standardization. DMIS has become an ISO standard (ISO 22093:2003).

Product Images

Our Clients & Agents

Tag:

Place of Origin:	China
Brand Name:	UNIMETRO
Certification:	ISO
Model Number:	Neon

Minimum Order Quantity:	1set
Price:	Negotiable
Packaging Details:	Wooden case
Delivery Time:	40-45days
Payment Terms:	T/T,L/C,D/A,D/P,Western Union,MoneyGram
Supply Ability:	10 set per month
