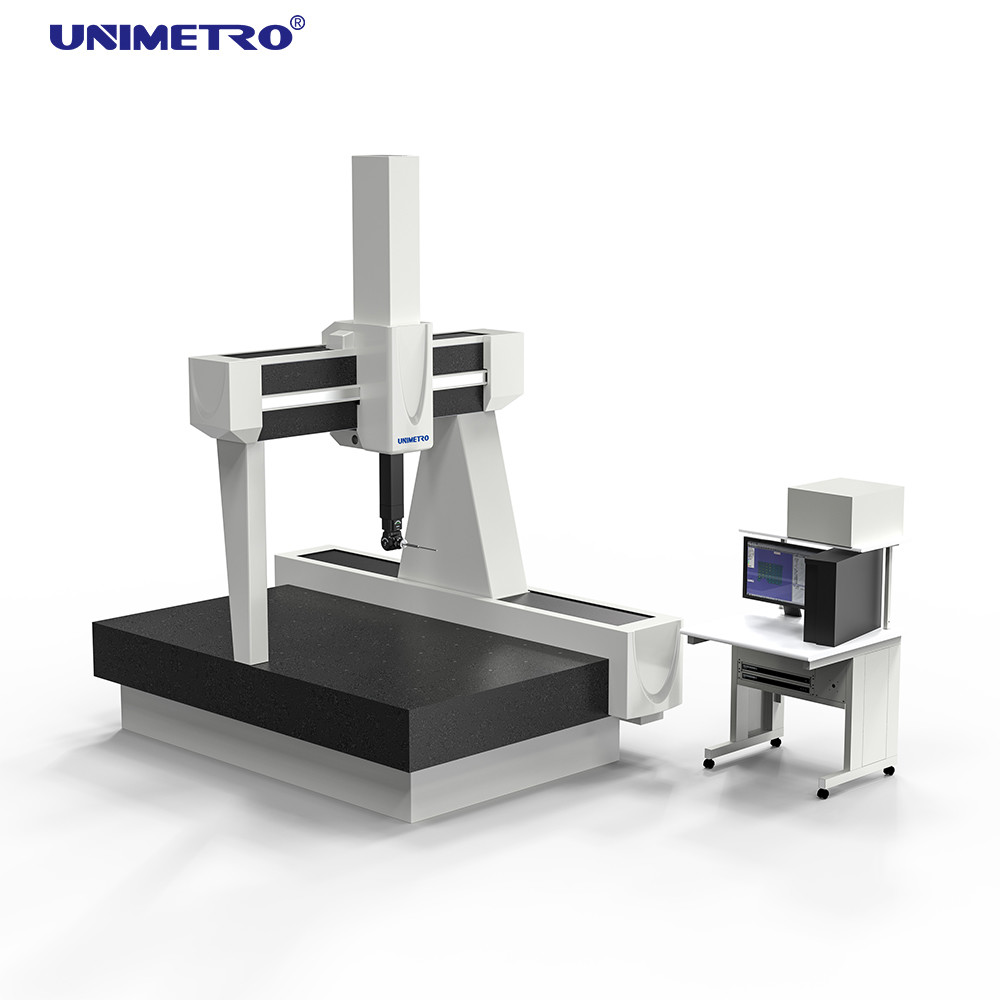

3D Coordinate Measuring Machine (CMM) with Single Frame and Long Travel

"Krypton" is a high-precision, high-reliability, large-scale three-coordinate measuring machine featuring a unique unilateral high design. Based on universal modular design concepts, it ensures high reliability for all types of coordinate measuring machines while being easy to maintain. This model includes various specifications with extension rails exceeding 10m, capable of installation below ground surface. The Krypton series supports multiple measurement methods, including touch-trigger digital probe measurement, continuous contact analog probe scanning, and laser probe scanning. All probe options are fully interchangeable, enabling measurement of thousands of geometric and free-form parts.

Measuring SW: Rational-DMIS Advanced version (CAD)

Manual: Manual + disk

Control System: RENISHAW control system with MCU joystick

Probe Set: RENISHAW MH20i/MCP/PH10T+TP20/PH10M+TP200/PH10M+SP25M/PH10MQ+SP25M...

Probe Stylus: RENISHAW M2 M3 stylus

• Elevated rail structure: The unilateral viaduct type design greatly reduces Abbe error, resulting in higher accuracy and significantly improved stability.
• Three-axis guideway: Fully enclosed, all-granite material construction prevents damage from external dust erosion and provides protection from pollution and temperature variations. This is especially important for harsh environments. All three axes are made of granite, which is corrosion-resistant and features exactly the same coefficient of thermal expansion for higher accuracy.

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package. The software development considers both beginner requirements for ease of use and advanced user needs for comprehensive functionality. More importantly, it serves as a model for CMM measurement software standardization.

Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is fundamentally different from "support DMIS" implementations where the kernel is not DMIS. DMIS has become an ISO standard (ISO 22093:2003).
