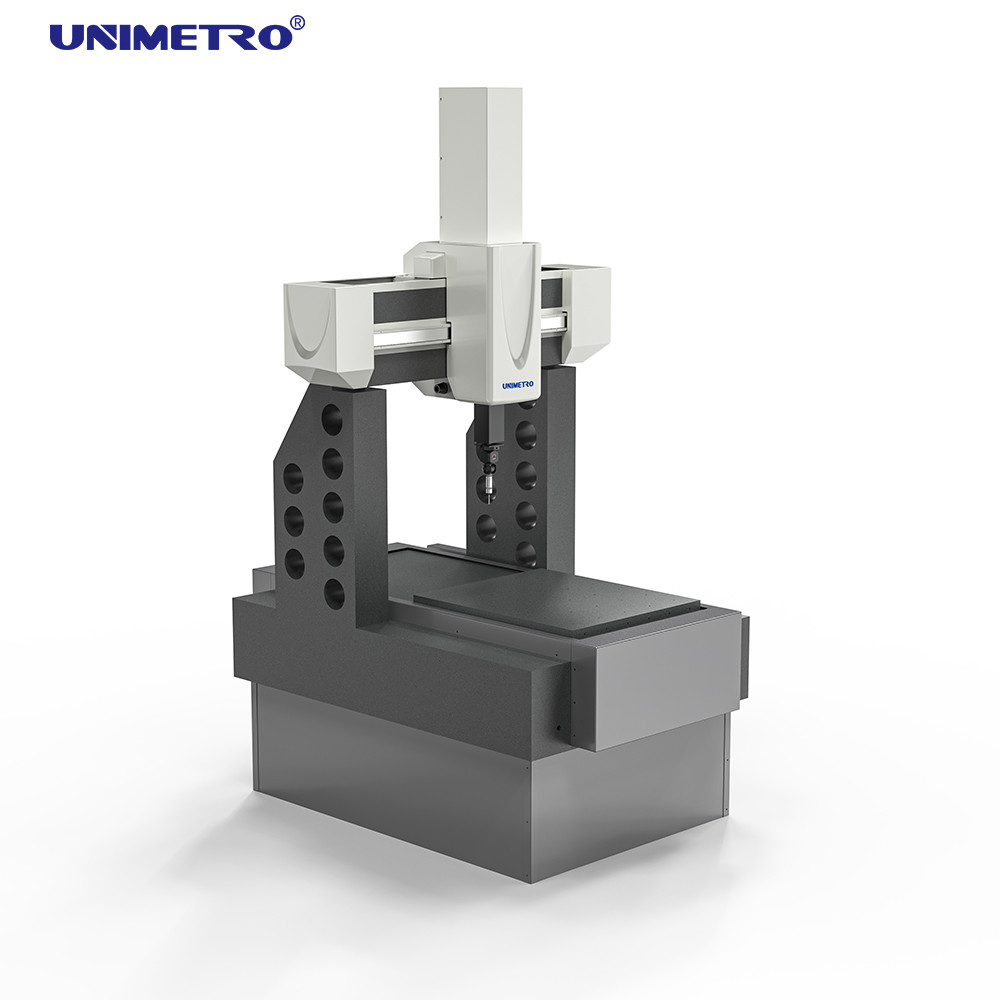

High Precision 3D Coordinate Measuring Machine (CMM) with 1.2 μm Accuracy

The Neon series coordinate measuring machine adopts innovative ceramic design to achieve ultra-high-precision scanning and detection capabilities on the current market. Particularly suitable for the application needs of high-precision products in the electronics, automotive and aerospace fields. It is a unique and excellent three-coordinate that can be equipped with multiple three-coordinate probes.

• Automobile engine and gearbox parts
• Aviation blades, engines and aircraft parts
• General Precision Engineering
• Pharmaceutical Manufacturing

High-quality Granite Platform with Precise Dovetail Guide Rail
The granite working platform is the support of the whole machine, and its quality affects the overall performance. The platform is made of granite material, coupled with precise dovetail guide rails, which effectively reduces vibration and improves machine performance.

Fully Enclosed Three-axis Guideway with Ceramic Beam and Spindle
Both the X and Z axes are ceramic, which is resistant to rust, has good rigidity, and has a smaller thermal expansion coefficient for higher accuracy.

Dual Passive Damping Mechanism Base Bracket
The three-coordinate bracket adopts a dual passive damping structure to prevent the influence of low-frequency vibration, which greatly guarantees measurement accuracy and can reduce the need for earthquake-proof foundation measures.

Rational-DMIS is a newly developed large-scale integrated 3D measurement software package. It takes into account the requirements of beginners for easy learning and high-level users for advanced functionality. More importantly, it becomes a model of CMM measurement software standardization.

Rational DMIS programs are designed with the full and native DMIS kernel until version 5.0 of DMIS, which is totally different from so-called "support DMIS" (the kernel is not DMIS). DMIS has become an ISO standard (ISO 22093:2003).
